hree rods of same dimensions are arranged as shown in figure they have thermal conductivities ${K_1},{K_2}$ and${K_3}$ The points $P$ and $Q$ are maintained at different temperatures for the heat to flow at the same rate along $PRQ$ and $PQ$ then which of the following option is correct
Medium
Download our app for free and get started

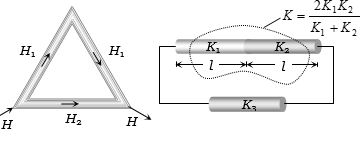

(c) The given arrangement of rods can be redrawn as follows
It is given that $H_1$ = $H_2$
It is given that $H_1$ = $H_2$
==> $\frac{{KA({\theta _1} - {\theta _2})}}{{2l}} = \frac{{{K_3}A({\theta _1} - {\theta _2})}}{l}$
==> ${K_3} = \frac{K}{2} = \frac{{{K_1}{K_2}}}{{{K_1} + {K_2}}}$
