In the transient current circuit shown, the time constant is
Medium
Download our app for free and get started

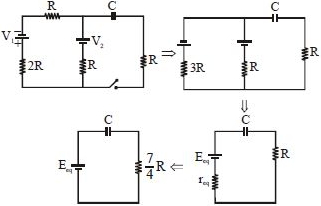

$r_{e q}=\frac{R \times 3 R}{R+3 R}=\frac{3 R}{4}$
$\mathrm{R}+\mathrm{r}_{\mathrm{eq}}=\mathrm{R}+\frac{3}{4} \mathrm{R}=\frac{7}{4} \mathrm{R}$
$\therefore $ time constant $=\frac{7}{4} \mathrm{RC}$
