Plot the corresponding reference circle for each of the following…

Question

Plot the corresponding reference circle for each of the following simple harmonic motions. Indicate the initial $(t=0)$ position of the particle, the radius of the circle, and the angular speed of the rotating particle. For simplicity, the sense of rotation may be fixed to be anticlockwise in every case: ( $x$ is in cm and t is in s ).
a. $x=-2 \sin \left(3 t+\frac{\pi}{3}\right)$
b. $x=\cos \left(\frac{\pi}{6}-t\right)$
c. $x=3 \sin \left(2 \pi t+\frac{\pi}{4}\right)$
d. $x=2 \cos \pi t$

✓

Answer

a. $x =2 \cos \left(3 t+\frac{\pi}{3}+\frac{\pi}{2}\right)$
Radius of the reference circle, $r =$ amplitude of $SHM =2 cm$,
At $t =0, x =-2 \sin \frac{\pi}{3}=\frac{-2 \sqrt{3}}{2}=-\sqrt{3} cm$
Also $\omega t =3 t \therefore \omega=3 rad / s$
$\cos \phi_0=-\frac{\sqrt{3}}{2}, \phi_0=150^{\circ}$
The reference circle is, thus, as plotted below.

b. $x=\cos \left(t-\frac{\pi}{6}\right)$
Radius oif circle, $r =$ amplitude of $SHM =1 cm$.
At $t =0, x =\cos \frac{\pi}{6}=\frac{\sqrt{3}}{2} cm$
Also $\omega t =1 t \Rightarrow \omega=1 rad / s$
$
\cos \phi_0=\frac{\sqrt{3}}{2}, \quad \phi_0=-\frac{\pi}{6}
$
The reference circle is, thus as plotted below.

c. $x =3 \cos \left(2 \pi t+\frac{\pi}{4}+\frac{\pi}{2}\right)$
Here, radius of reference circle, $r =3 cm$ and at $t =0, x =3 \sin \frac{\pi}{4}=\frac{\sqrt{3}}{2} cm$
$\omega t =2 \pi t \Rightarrow \omega=2 \pi rad / s$
$
\cos \phi_0=\frac{\frac{\sqrt{3}}{2}}{3}=-\frac{1}{\sqrt{2}}
$
Therefore, the reference circle is being shown below.

d. $x =2 \cos \pi t$
Radius of reference circle, $r =2 cm$ and at $t =0, x =2 cm$
$
\begin{aligned}
& \therefore \omega t=\pi t \text { or } \omega=\pi rad / s \\
& \cos \phi_0=1, \phi_0=0
\end{aligned}
$
The reference circle is plotted below.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Model Paper 6→Model Paper 6 — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

Given the example of the motion in the following cases:

Where magnitude and direction of the acceleration of the particle changes.
Where the magnitude and direction of acceleration of body remains constant.
Where magnitude of acceleration changes but its direction remains constants.
Where the magnitude of acceleration remains constant but its direction changes.

→

A particle of mass 1g and charge 2.5 × 10^-4C is released from rest in an electric field of 1.2 × 10⁴NC^-1.

Find the electric force and the force of gravity acting on this particle. Can one of these forces be neglected in comparison with the other for approximate analysis?
How long will it take for the particle to travel a distance of 40cm?
What will be the speed of the particle after travelling this distance?
How much is the work done by the electric force on the particle during this period?

→

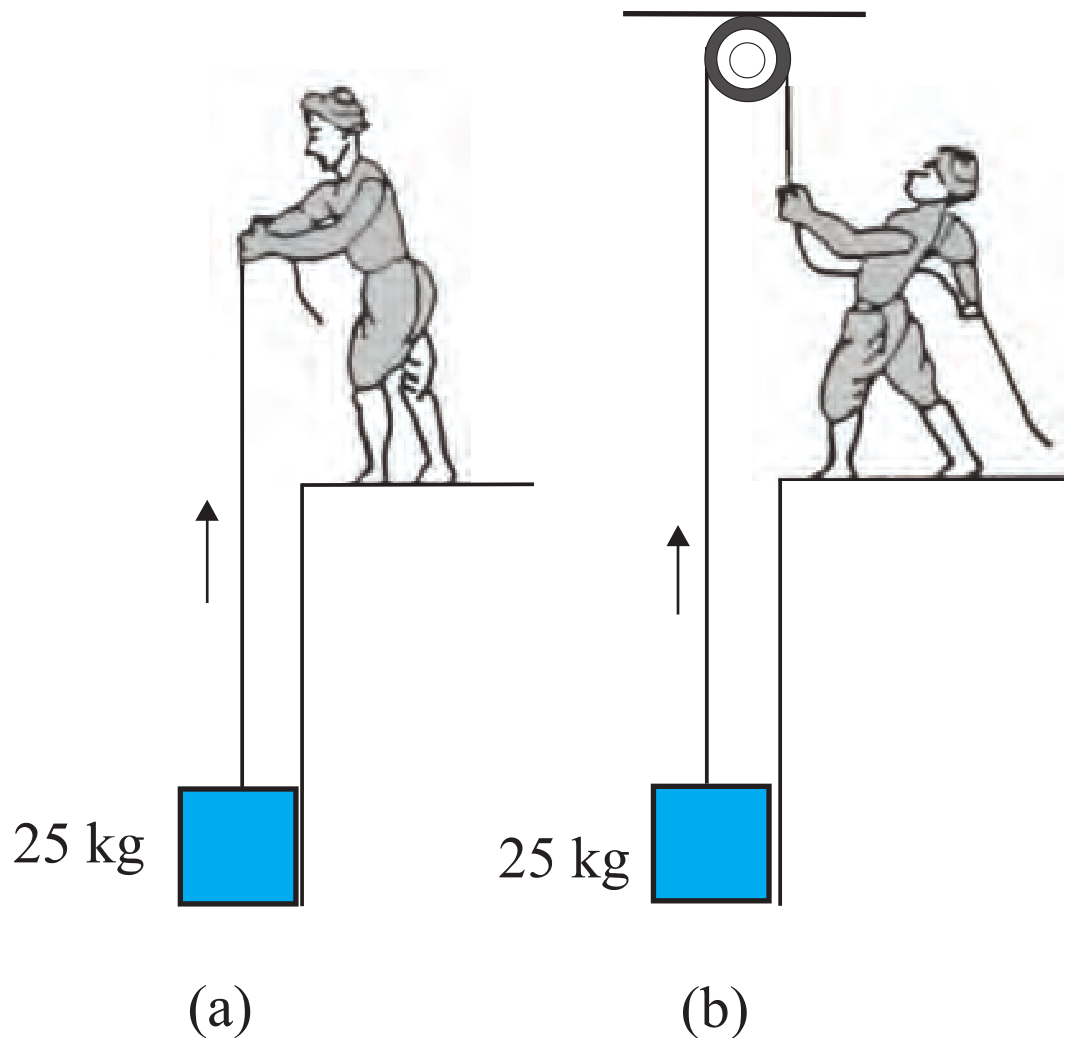

A block of mass 25kg is raised by a 50kg man in two different ways as shown in Fig. What is the action on the floor by the man in the two cases? If the floor yields to a normal force of 700N, which mode should the man adopt to lift the block without the floor yielding?
