Seven identical plates each of area $A$ and successive separation $d$ are arranged as shown in figures. The effective capacitance of the system between $P$ and $Q$ is
Medium
Download our app for free and get started
(b)

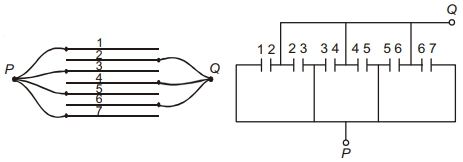

All are in parallel
$C_{\text {net }}=6 C=\frac{6 A \varepsilon_0}{d}$
