The equation of a stationary wave along a stretched string is given by $y = 5\,sin\, \frac{2\pi }{3}x\, cos\, 40\pi t$ where $x$ and $y$ are in $cm$ and $t$ is in $s$. The separation between two adjacent nodes is ..... $cm$

✓
$1.5$
B
$3$
C
$6$
D
$4$

✓

Answer

Correct option: A.

$1.5$

a
The given equation of a stationary wave is $y$

$=5 \sin \frac{2 \pi}{3} x \cos 40 \pi t$

The standard equation of a stationary wave is

$y=2 a \sin k x \cos \omega t$

Comparing $(i)$ and $(ii),$ we get $\mathrm{k}=\frac{2 \pi}{3}$

or $\frac{2 \pi}{\lambda}=\frac{2 \pi}{3}$ or $\lambda=3 \mathrm{\,cm}$

Separation between two adjacent nodes is

$\frac{\lambda}{2}=\frac{3}{2}=1.5 \mathrm{\,cm}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The diagram shows a simple mercury barometer.Which of the following does not cause the height of the mercury column to vary ?

The potential energy of a particle varies with distance $x$ from a fixed origin as $U\, = \,\frac{{A\sqrt x }}{{{x^2} + B}}$ Where $A$ and $B$ are dimensional constants then find the dimensional formula for $A/B$

Two wires $A$ and $B $ of same length and of the same material have the respective radii ${r_1}$ and ${r_2}$. Their one end is fixed with a rigid support, and at the other end equal twisting couple is applied. Then the ratio of the angle of twist at the end of $A$ and the angle of twist at the end of $B $ will be

A projectile is thrown at an angle $\theta$ such that it is just able to cross a vertical wall at its highest point as shown in the figure.The angle $\theta$ at which the projectile is thrown is given by

A slab is subjected to the two forces ${\vec F_1}$ and ${\vec F_2}$ of same magnitude $F$ as shown in the figure. Force ${\vec F_2}$ is in $XY -$ plane while force $F_1$ acts along $z -$ axis at the point $(2\vec i + 3\vec j)$. The moment of these forces about point $O$ will be

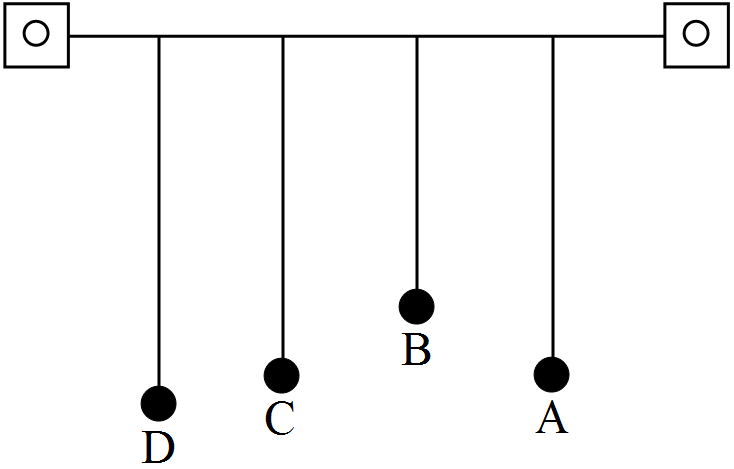

Four pendulums A, B, C and D are suspended from the same elastic support as shown in Fig A and C are of the same length, while B is smaller than A and D is larger than A. If A is given a transverse displacement,
