The total capacity of the system of capacitors shown in the adjoining figure between the points $A$ and $B$ is.....$\mu F$
Medium
Download our app for free and get started

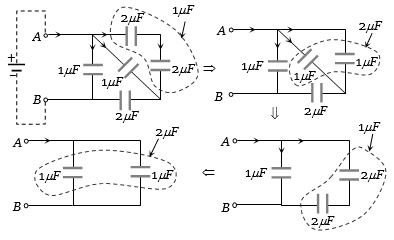

(b) The given circuit can be simplified as follows
Hence equivalent capacitance between $A$ and $B$ is $2\,µF$.
Hence equivalent capacitance between $A$ and $B$ is $2\,µF$.
