To determine the resistance ($R$) of a wire, a circuit is designed below, The $V-I$ characteristic curve for this circuit is plotted for the voltmeter and the ammeter readings as shown in figure. The value of $\mathrm{R}$ is . . . . . . .$\Omega$
JEE MAIN 2024, Diffcult
Download our app for free and get started
$\text { Req }=\frac{10^4 R}{10^4+R}$
$E=4 V, I=2 m A$
$I=\frac{E}{R e q} \Rightarrow 2 \times 10^{-3}=\frac{4\left(10^4+R\right)}{10^4 R}$
$\Rightarrow 20 R=40000+4 R$
$\quad 16 R=40000$
$R=2500 \Omega$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

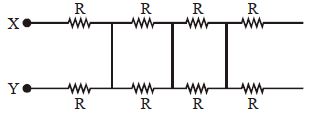

- 1Net resistance between $X$ and $Y$ isView Solution
