Question

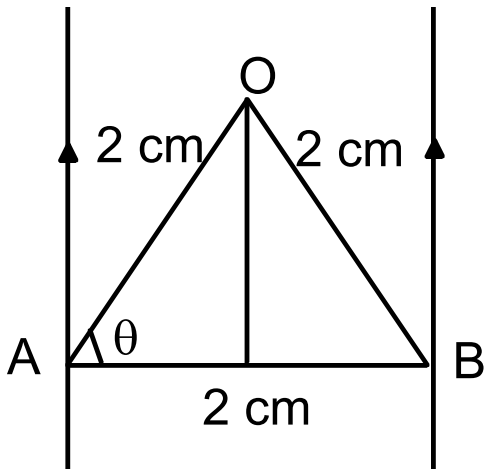

Two parallel wires carry equal currents of 10A along the same direction and are separated by a distance of 2.0cm. Find the magnetic field at a point which is 2.0cm away from each of these wires
✓

Answer


$\cos\theta=\frac{1}{2},$

$\theta=60^\circ\ \&\ \angle\text{AOB}=60^\circ$

$\text{B}=\frac{\mu_0\text{I}}{2\pi\text{r}}=\frac{10^{-7}\times2\times10}{2\times10^{-2}}=10^{-4}\text{T}$

So net is $[(10^{-4})^2]+(10^{-4})^2+2(10^{-8})\cos60^\circ]^\frac{1}{2}$

$=10^{-4}\Big[1+1+2\times\frac{1}{2}\Big]^\frac{1}{2}$

$=10^{-4}\times\sqrt3\text{T}$

$=1.732\times10^{-4}\text{T}$
