Model Paper 5 Physics - Model Paper 5

Rajasthan Board (RBSE) - STD 11 Science - Physics (Rajasthan - English Medium). 38 questions in this chapter.

Question types

Model Paper 5 question types

38 questions across 6 question groups — pick any mix to generate a Physics paper with step-by-step answer keys.

38
Questions
6
Question groups
5
Question types
Sample Questions

Model Paper 5 questions

One sample from each question group in this chapter. Select any group above to see the full set with answer keys.

Q 1M.C.Q (1 Marks)1 Mark
Obtain the dimensional equation for universal gas constant.
  • A
    $\left[ M L ^2 T^{-2} mol^{-1} K^{-1}\right]$
  • B
    $\left[ M L ^3 T^{-1} mol^{-2} K^{-2}\right]$
  • C
    $\left[ M ^2 LT ^{-1} mol^{-1} K^{-1}\right]$
  • D
    $\left[ M ^3 LT ^{-2} mol^{-1} K^{-2}\right]$
View full solution →
Q 2M.C.Q (1 Marks)1 Mark
In figure, pressure inside a spherical drop is more than pressure outside. (S = surface tension and r = radius of bubble)
The extra surface energy if radius of bubble is in creased by $\Delta r$ is
  • A
    $2 \pi r \Delta r S$
  • B
    $4 \pi r \Delta r S$
  • C
    $10 \pi r \Delta r S$
  • D
    $8 \pi r \Delta r S$
View full solution →
Q 3M.C.Q (1 Marks)1 Mark
A chef, on finding his stove out of order, decides to boil the water for his wife's coffee by shaking it in a thermos flask. Suppose that he uses tap water at $15^{\circ} C$ and that the water falls 30 cm each shake, the chef makes 30 shakes each minute. Neglecting any loss of thermal energy by the flask, how long must he shake the flask until the water reaches $100^{\circ} C$ ?
  • A
    $4.00 \times 10^3 \min$
  • B
    $3.97 \times 10^3 min$
  • C
    $5.25 \times 10^3 min$
  • D
    $2.25 \times 10^3 min$
View full solution →
Q 4M.C.Q (1 Marks)1 Mark
A mass is revolving in a circle, which is in the plane of the paper. The direction of angular acceleration if any, is:
  • A
    Upward from the plane of the paper
  • B
    Tangential
  • C
    At right angles to the plane of the paper
  • D
    Towards the radius
View full solution →
Q 5M.C.Q (1 Marks)1 Mark
The ratio of escape velocity at earth $\left( v _{ e }\right)$ to the escape velocity at a planet $\left( u _{ p }\right)$ whose radius and mean density are twice as that of earth is:
  • A
    $1: 2 \sqrt{2}$
  • B
    $1: 4$
  • C
    $1: \sqrt{2}$
  • D
    $1: 2$
View full solution →
Q 62 Marks Questions2 Marks
Two waves of equal frequencies have their amplitudes in the ratio of $3: 5$. They are superimposed on each other. Calculate the ratio of $I _{\text {max }} / I _{\text {min }}$.
View full solution →
Q 82 Marks Questions2 Marks
A uniform rope of length $L$, resting on a frictionless horizontal surface is pulled at one end by a force $F$. What is the tension in the rope at a distance 1 from the end where the force is applied?
View full solution →
Q 102 Marks Questions2 Marks
The orbital velocity $\nu$ of a satellite may depend on its mass $m$, distance $r$ from the centre of earth and acceleration due to gravity g. Obtain an expression for orbital velocity.
View full solution →
Q 113 Marks Question3 Marks
Specific heat of Argon at constant Pressure is $0.125 cal / g / K$ and at constant volume is $0.075 cal / g / K$. Calculate the density of Argon at N.T.P. Given that $J =4.2$ Joule/cal?
View full solution →
Q 123 Marks Question3 Marks
A metallic sphere of radius $1.0 \times 10^{-3} m$ and density $1.0 \times 10^4 kg m ^{-3}$ enters a tank of water, after a free fall through a distance of $h$ in the earth's gravitational field. If its velocity remains unchanged after entering water, determine the value of $h$. Given coefficient of viscosity of water $=1.0 \times 10^{-3} Nsm ^{-2}, g=10 ms^{-2}$ and density of water $=1.0 \times 10^3 kgm ^{-3}$.
View full solution →
Q 133 Marks Question3 Marks
A sphere is dropped under gravity through a fluid of viscosity $\eta$. Taking the average acceleration as half of the initial acceleration, show that the time taken to attain the terminal velocity is independent of the fluid density.
View full solution →
Q 153 Marks Question3 Marks
A body of mass 5 kg is acted upon by two perpendicular forces 8 N and 6 N . Give the magnitude and direction of the acceleration of the body.
View full solution →
Q 164 Marks Question4 Marks
Root mean square velocity (RMS value)is the square root of the mean of squares of the velocity of individual gas molecules and the Average velocity is the arithmetic mean of the velocities of different molecules of a gas at a given temperature.
1. Moon has no atmosphere because:
(a) the escape velocity of the moon’s surface is more than the r.m.s velocity of all molecules
(b) it is far away from the surface of the earth
(c) the r.m.s. velocity of all the gas molecules is more than the escape velocity of the moon’s surface
(d) its surface temperature is $10^{\circ} C$
2. For an ideal gas, $\frac{C_P}{C_V}$ is
(a) $\leq 1$  (b) none of these  (c) $>1$  (d) $<1$
3. The root means square velocity of hydrogen is $\sqrt{5}$ times that of nitrogen. If T is the temperature of the gas then:
(a) $T \left( H _2\right)= T \left( N _2\right)$  (b) $T \left( H _2\right)< T \left( N _2\right)$
(c) $T \left( H _2\right) \neq T \left( N _2\right)$  (d) $T\left(H_2\right)>T\left(N_2\right)$
4.Suppose the temperature of the gas is tripled and $N _2$ molecules dissociate into an atom. Then what will be the rms speed of atom:
(a) $v_0 \sqrt{2}$  (b) $v_0 \sqrt{6}$ (c) $v_0 \sqrt{3}$  (d) $v_0$
OR
The velocities of the molecules are $v , 2 v , 3 v , 4 v \& 5 v$. The RMS speed will be:
(a) 11 v  (b) $v (12)^{11}$  (c) v  (d) $v(11)^{12}$
View full solution →
Q 174 Marks Question4 Marks

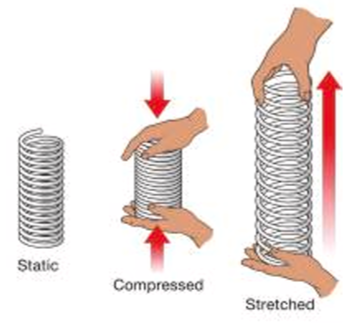

Elastic potential energy is Potential energy stored as a result of the deformation of an elastic object, such as the stretching of a spring. It is equal to the work done to stretch the spring, which depends upon the spring constant k as well as the distance stretched

1. If stretch in spring of force constant k is doubled, then the ratio of final to initial forces is:
(a) $4: 1$  (b) $1: 4$  (c) $2: 1$  (d) $1: 2$
2. A light body and a heavy body have the same kinetic energy. which one has greater linear momentum?
(a) light body  (b) both heavy and light body  (c) Low body  (d) heavy body
3. A spring is cut into two equal halves. How is the spring constant of each half affected?
(a) becomes double  (b) becomes triple  (c) becomes $1 / 4$ th  (d) becomes half
OR
When spring is compressed, its potential energy:
(a) fall  (b) decrease  (c) first increase then decrease  (d) increase
4. What type of energy is stored in the spring of a watch?
(a) potential energy  (b) Electrical energy  (c) mechanical energy  (d) kinetic energy
View full solution →
Q 195 Marks Questions5 Marks
A person normally weighing 50 kg stands on a mass less platform which oscillates up and down harmonically at a frequency of $2.0 s^{-1}$ and an amplitude 5.0 cm . A weighing machine on the platform gives the persons weight against time.
i. Will there be any change in weight of the body, during the oscillation? Figure In extensible string.
ii. If answer to part (a) is yes, what will be the maximum and minimum reading in the machine and at which position?
View full solution →
Q 205 Marks Questions5 Marks
Find the components along the $x , y , z$ axes of the angular momentum l of a particle, whose position vector is r with components $x , y , z$ and momentum is p with components $p _{ x }, p _{ y }$ and $p _{ z }$. Show that if the particle moves only in the x y plane the angular momentum has only a z-component.
View full solution →
Q 215 Marks Questions5 Marks
Two cylindrical hollow drums of radii $R$ and $2 R$, and of a common height $h$, are rotating with angular velocities $\omega_1$ (anti-clockwise) and $\omega_2$ (clockwise), respectively. Their axes, fixed are parallel and in a horizontal plane separated by $(3 R+\delta)$. They are now brought in contact $(\delta \rightarrow 0)$.
i. Show the frictional forces just after contact.
ii. Identify forces and torques external to the system just after contact.
iii. What would be the ratio of final angular velocities when friction ceases?
View full solution →
Q 225 Marks Questions5 Marks
A quarterback, standing on his opponents 35-yard line, throws a football directly down field, releasing the ball at a height of 2.00 m above the ground with an initial velocity of $20.0 m / s$, directed $30.0^{\circ}$ above the horizontal.
i. How long does it take for the ball to cross the goal line, 32.0 m from the point of release?
ii. The ball is thrown too hard and so passes over the head of the intended receiver at the goal line. What is the ball's height above the ground as it crosses the goal line?
View full solution →
Q 23Assertion (A) & Reason (B) MCQ1 Mark
Assertion: When a glass of hot milk is placed in a room and allowed to cool, its entropy decreases.
Reason: Allowing hot object to cool does not violate the second law of thermodynamics.
  • A
    Assertion and reason both are correct statements and reason is correct explanation for assertion.
  • B
    Assertion and reason both are correct statements but reason is not correct explanation for assertion.
  • C
    Assertion is correct statement but reason is wrong statement.
  • D
    Assertion is wrong statement but reason is correct statement.
View full solution →
Q 24Assertion (A) & Reason (B) MCQ1 Mark
Assertion (A): Generally the path of a projectile from the earth is parabolic but it is elliptical for projectiles going to a very large height.
Reason (R): The path of a projectile is independent of the gravitational force of earth.
  • A
    Both A and R are true and R is the correct explanation of A.
  • B
    Both A and R are true but R is not the correct explanation of A.
  • C
    A is true but R is false.
  • D
    A is false but R is true.
View full solution →
Q 25Assertion (A) & Reason (B) MCQ1 Mark
Assertion: Two particles moving in the same direction do not lose all their energy in a completely inelastic collision.
Reason: Principle of conservation of momenturm holds true for all kinds of collisions.
  • A
    Assertion and reason both are correct statements and reason is correct explanation for assertion.
  • B
    Assertion and reason both are correct statements but reason is not correct explanation for assertion.
  • C
    Assertion is correct statement but reason is wrong statement.
  • D
    Assertion is wrong statement but reason is correct statement.
View full solution →
Q 26Assertion (A) & Reason (B) MCQ1 Mark
Assertion: A person feels weightlessness in an artificial satellite of the earth. However a person on the moon (natural satellite) feels his weight.
Reason: Satellite (natural or artificial) of a planet is a freely falling body.
  • A
    Assertion and reason both are correct statements and reason is correct explanation for assertion.
  • B
    Assertion and reason both are correct statements but reason is not correct explanation for assertion.
  • C
    Assertion is correct statement but reason is wrong statement.
  • D
    Assertion is wrong statement but reason is correct statement.
View full solution →
