A convex lens has a focal length of 10cm. Find the location and nature of the image if a point object is placed on the principal axis at a distance of:
- 9.8cm
- 10.2cm from the lens.
Download our app for free and get started
Given that, f = 10cm
$\Rightarrow\text{v}=-490\text{cm}$
So, $\text{m}=\frac{\text{v}}{\text{u}}=\frac{-490}{-9.8}=50\text{cm}$
So, the image is erect and virtual.
$\Rightarrow\text{v}=510\text{cm}$
So, $\text{m}=\frac{\text{v}}{\text{u}}=\frac{510}{-9.8}$
The image is real and inverted.

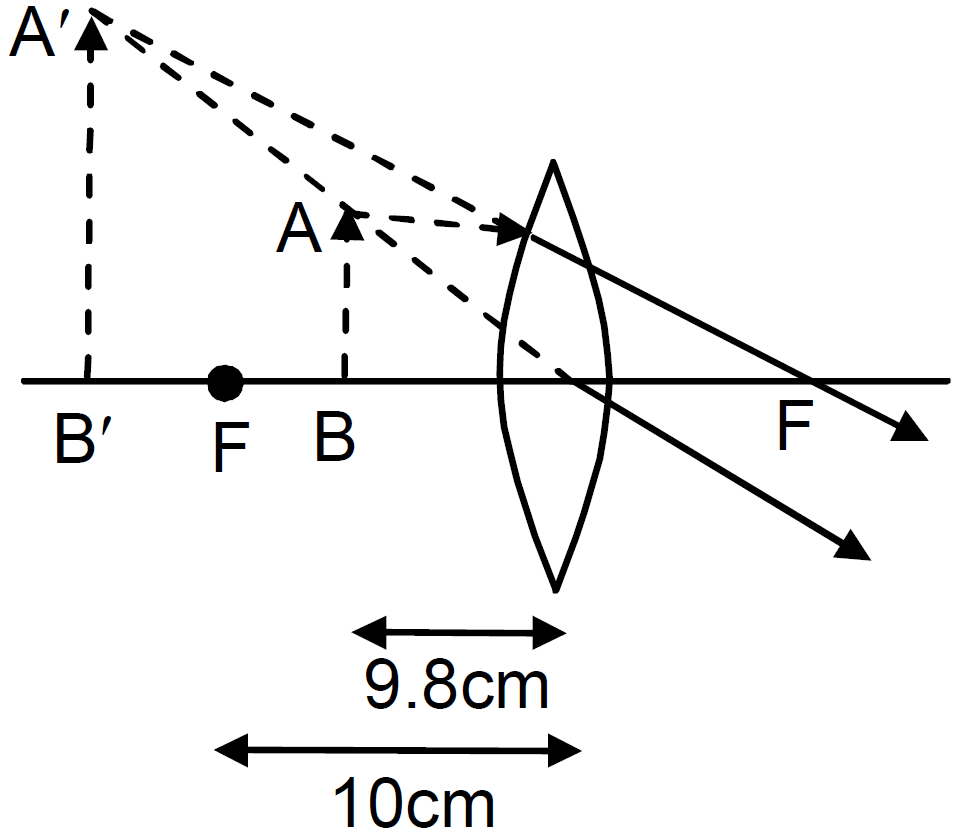

- When u = -9.5cm
$\Rightarrow\text{v}=-490\text{cm}$
So, $\text{m}=\frac{\text{v}}{\text{u}}=\frac{-490}{-9.8}=50\text{cm}$
So, the image is erect and virtual.

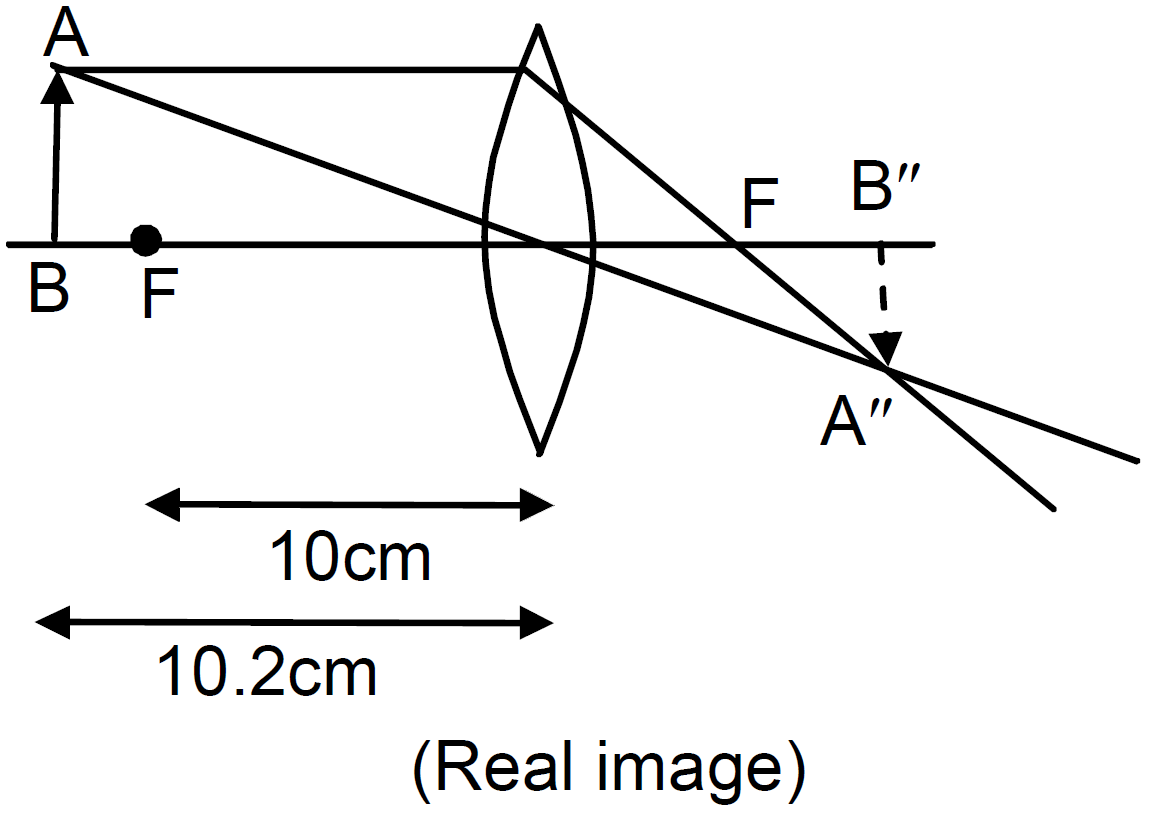

- When u = -10.2cm
$\Rightarrow\text{v}=510\text{cm}$
So, $\text{m}=\frac{\text{v}}{\text{u}}=\frac{510}{-9.8}$
The image is real and inverted.
