A particle executes a simple harmonic motion of amplitude 1.0cm along the principal axis of a convex lens of focal length 12cm. The mean position of oscillation is at 20cm from the lens. Find the amplitude of oscillation of the image of the particle.
Download our app for free and get started

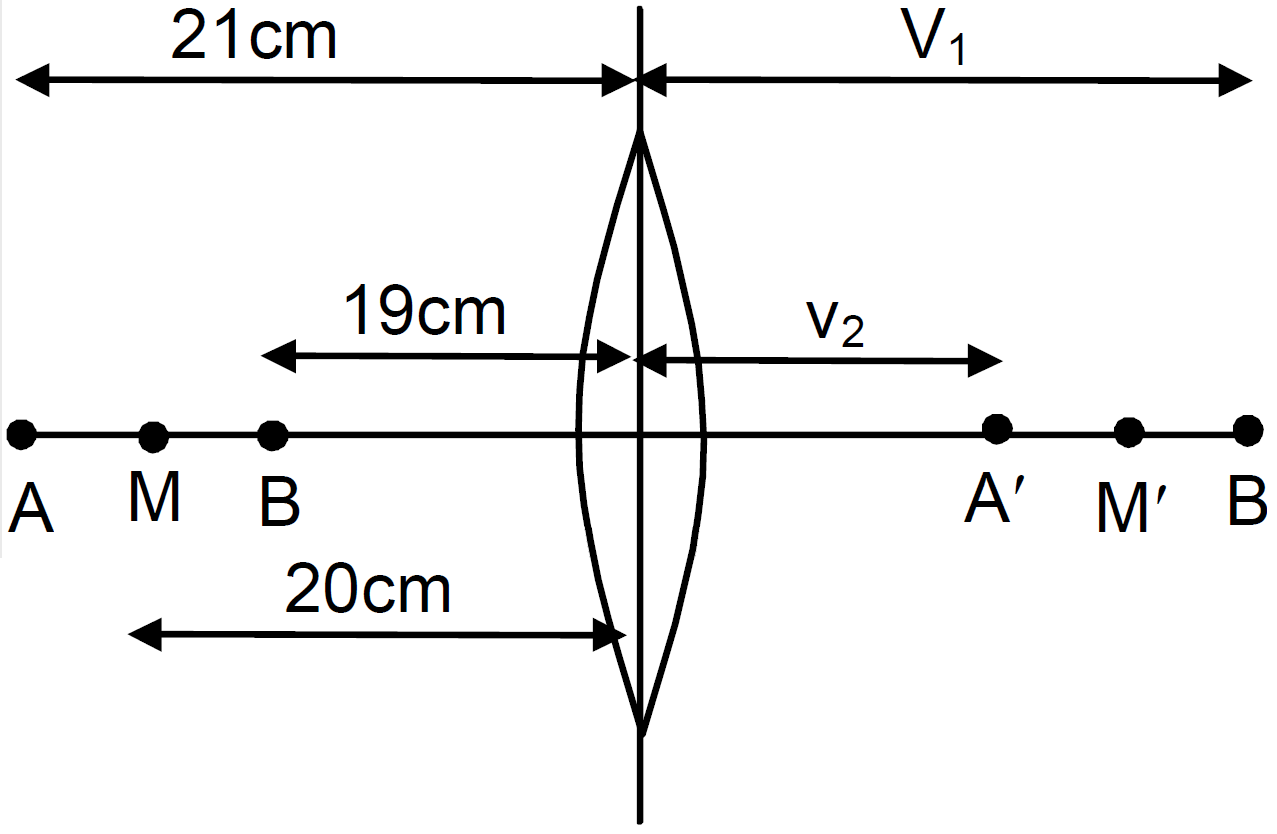

When the object is at 19cm from the lens, let the image will be at,$ v_1.$
$\Rightarrow\frac{1}{\text{v}_1}-\frac{1}{\text{u}_1}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}_1}-\frac{1}{-19}=\frac{1}{12}$
$\Rightarrow\text{v}_1=32.57\text{cm}$
Again, when the object is at 21cm from the lens, let the image will be at, $v_2.$
$\Rightarrow\frac{1}{\text{v}_2}-\frac{1}{\text{u}_2}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}_2}-\frac{1}{21}=\frac{1}{12}$
$\Rightarrow\text{v}_2=28\text{cm}$
$\therefore$ Amplitude of vibration of the image is A $=\frac{\text{A}'\text{B}'}{2}=\frac{\text{v}_1-\text{v}_2}{2}$
$\Rightarrow\text{A}=\frac{32.57}{2}=2.285\text{cm}$
