- A point object is placed on the principal axis of a convex spherical surface of radius of curvature R, which separates the two media of refractive indices $n_1$ and $n_2(n_2 > n_1)$. Draw the ray diagram and deduce the relation between the object distance (u), image distance (v) and the radius of curvature (R) for refraction to take place at the convex spherical surface from rarer to denser medium.
- A converging lens has a focal length of 20 cm in air. It is made of a material of refractive index 1.6. If it is immersed in a liquid of refractive index 1.3, find its new focal length.
CBSE FOREIGN - SET 2 2017
Download our app for free and get started
For small angles

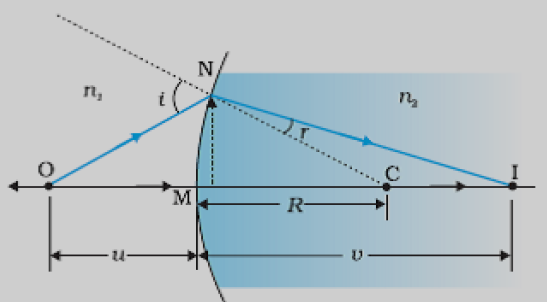

$\tan\angle NOM=\frac{MN}{OM} :\tan\angle NCM=\frac{MN}{NC}$
and $\tan\angle NIM=\frac{MN}{MI}$
For Δ???, i is exterior angle, therefore
$\text{i}=\angle NOM+\angle NCM=\frac{MN}{OM}+\frac{MN}{MC}$
Similarly $\text{r}=\frac{MN}{MC}-\frac{MN}{MI}$
For small angles Snells law can be written as
$n_1\text{i}=n_2r$
$\therefore\text{ }\frac{n_1}{OM}+\frac{n_2}{MI}=\frac{n_2-n_1}{MC}$
$\therefore\text{ }\text{OM}=\text{-u},\text{ }\text{MI}=+\text{v},\text{ }\text{MC}=+\text{R}$ (using sign conversion)
$\therefore\text{ }\frac{n_2}{v}-\frac{n_1}{u}=\frac{n_2-n_1}{R}$
- Lens Maker’s formula is
$\therefore\frac{1}{20}=(1.6-1)(\frac{1}{R_1}-\frac{1}{R_2})$
$\therefore\big(\frac{1}{R_1}-\frac{1}{R_2}\big)=\frac{1}{20\times0.6}=\frac{1}{12}$
Let f be the focal length of the lens in water
$\therefore\frac{1}{f'}=\frac{1.6-1.3}{1.3}\big(\frac{1}{R_1}-\frac{1}{R_2}\big)=\frac{0.3}{12\times1.3}$
$\frac{1}{f'}=\frac{120\times1.3}{3}=52\text{ }cm$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

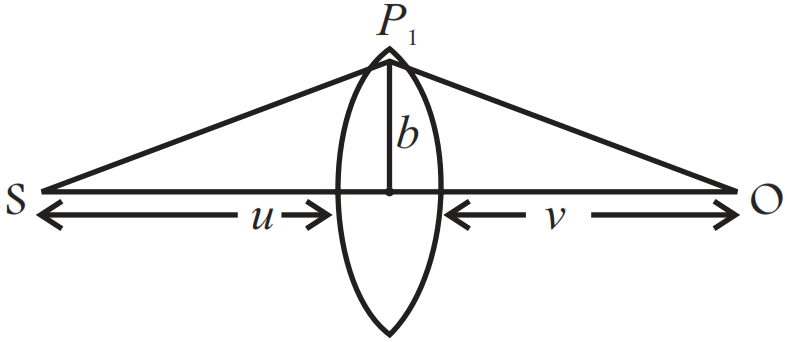

- 1Consider a thin lens placed between a source (S) and an observer (O) (Fig). Let the thickness of the lens vary as $\text{w}\text{(b)}=\text{w}_0-\frac{\text{b}^2}{\alpha}$, where b is the verticle distance from the pole. $w_0$ is a constant. Using Fermat’s principle i.e. the time of transit for a ray between the source and observer is an extremum, find the condition that all paraxial rays starting from the source will converge at a point O on the axis. Find the focal length.View Solution
