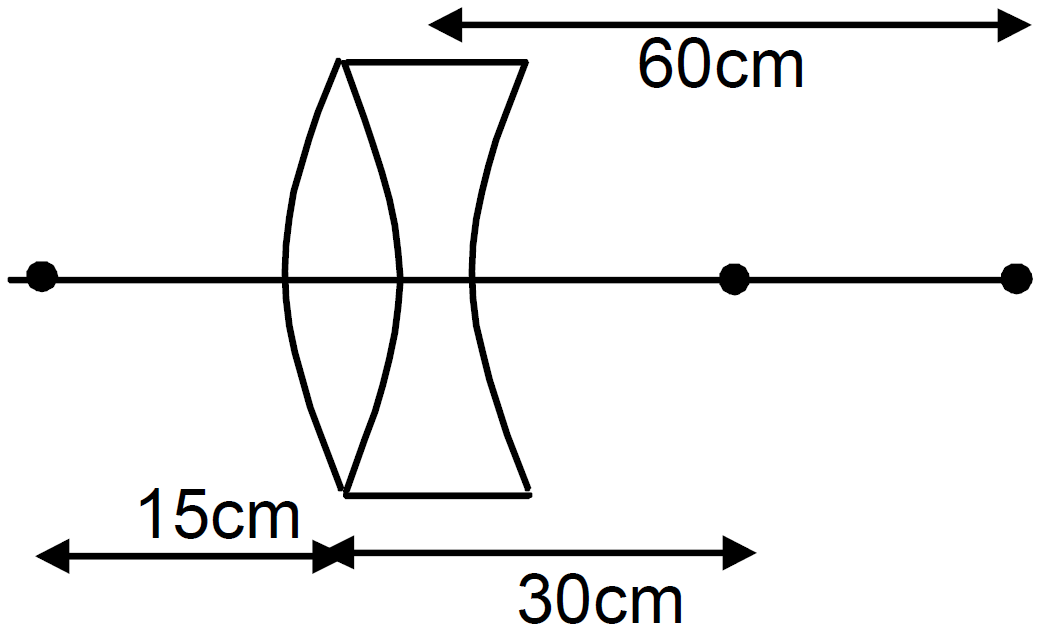

A point object is placed at a distance of 15cm from a convex lens. The image is formed on the other side at a distance of 30cm from the lens. When a concave lens is placed in contact with the convex lens, the image shifts away further by 30cm. Calculate the focal lengths of the two lenses.
Download our app for free and get started
Let u = object distance from convex lens = -15cm
$v_1 =$ image distance from convex lens when alone = 30cm
$f_1 =$ focal length of convex lens.
Now, $\therefore \ \frac{1}{\text{v}_1}+\frac{1}{\text{u}}=\frac{1}{\text{f}_1}$
or, $\frac{1}{\text{f}_1}=\frac{1}{30}-\frac{1}{-15}=\frac{1}{30}+\frac{1}{15}$
or, $\text{f}_1=10\text{cm}$
Again, Let v = image (final) distance from concave lens = +(30 + 30) = 60cm
$v_1 =$ object distance from concave lens = +30m
$f_2 =$ focal length of concave lens
Now, $\therefore \ \frac{1}{\text{v}}-\frac{1}{\text{v}_1}=\frac{1}{\text{f}_1}$
Or, $=\frac{1}{\text{f}_1}=\frac{1}{60}-\frac{1}{30}\Rightarrow\text{f}_2=-60\text{cm}.$
So, the focal length of convex lens is 10cm and that of concave lens is 60cm.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

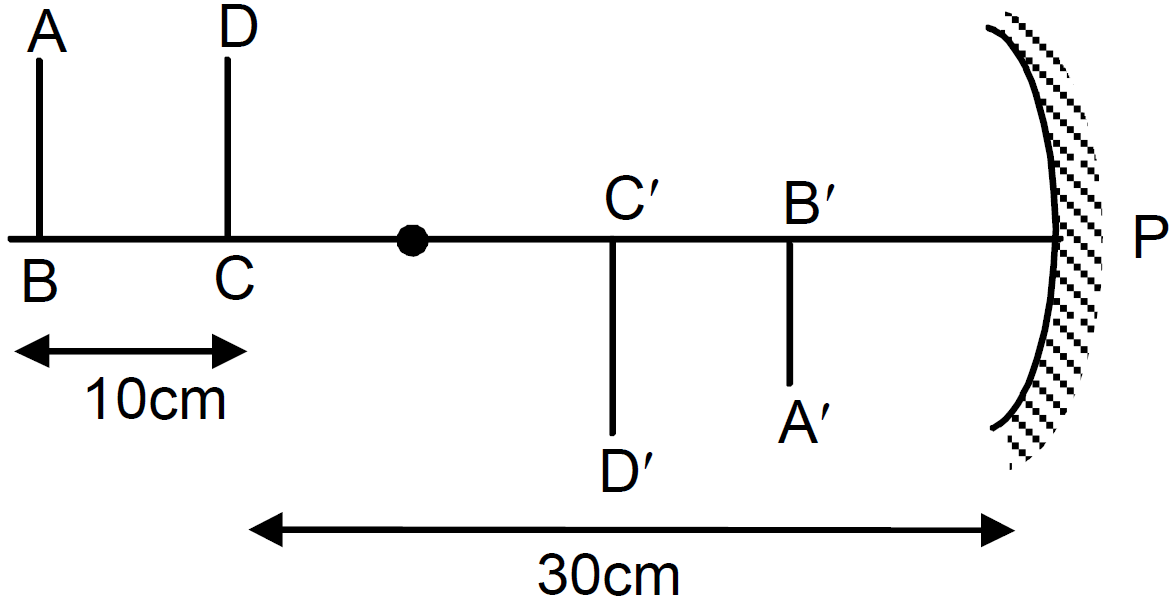

- 1View SolutionA U-shaped wire is placed before a concave mirror having radius of curvature 20cm. Find the total length of the image.
