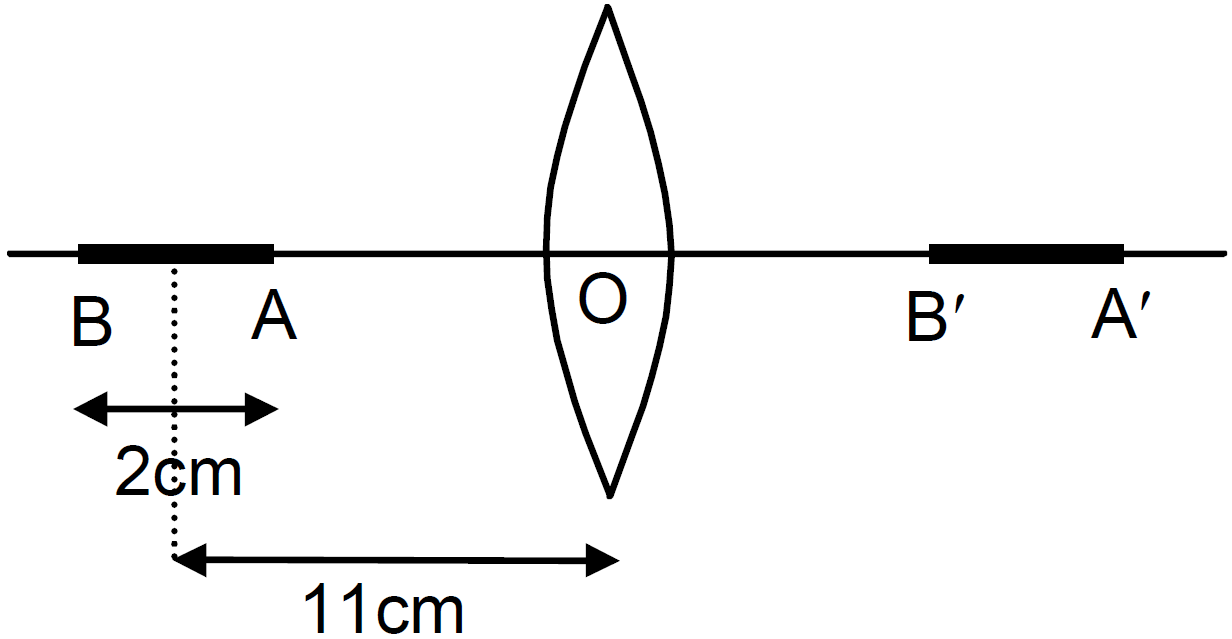

A pin of length 2.0cm lies along the principal axis of a converging lens, the centre being at a distance of 11cm from the lens. The focal length of the lens is 6cm. Find the size of the image.
Download our app for free and get started
Now we have to calculate the image of A and B.
Let the images be A',B'.
So, length of A'B' = size of image.
For A, u = -10cm, f = 6cm
Since, $\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}}-\frac{1}{-10}=\frac{1}{6}$
⇒ v = 15cm = OA'
For B, u = -12cm, f = 6cm
Again, $\Rightarrow\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}}=\frac{1}{6}-\frac{1}{12}$
⇒ v = 12cm = OB'
$\therefore$ A'B' = OA' - OB' = 15 - 12 = 3cm.
So, size of image = 3cm.
