A small object is placed 150mm away from a diverging lens of focal length 100mm:

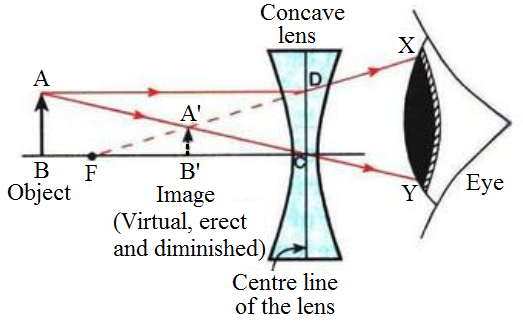

- Copy the figure below and draw rays to show how an image is formed by the lens.
- Calculate the distance of the image from the lens by using the lens formula.
Download our app for free and get started
u = -150mm f = -100mm$\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}$$\frac{1}{\text{v}}-\frac{1}{-150}=\frac{1}{-100}$
$\frac{1}{\text{v}}=-\frac{1}{100}-\frac{1}{150}$
$\frac{1}{\text{v}}=\frac{-5}{300}$
$\text{v}=60\text{mm}$
