A wire $AB$ is carrying a steady current of $12 A$ and is lying on the table. Another wire $CD$ carrying $5A$ is held directly above $AB$ at a height of $1 mm.$ Find the mass per unit length of the wire $CD$ so that it remains suspended at its position when left free. Give the direction of the current flowing in $CD$ with respect to that in $AB.$ $[$Take the value of $g = 10 ms^{–2}]$
CBSE OUTSIDE DELHI - SET 1 2013
Download our app for free and get started
Concepts:

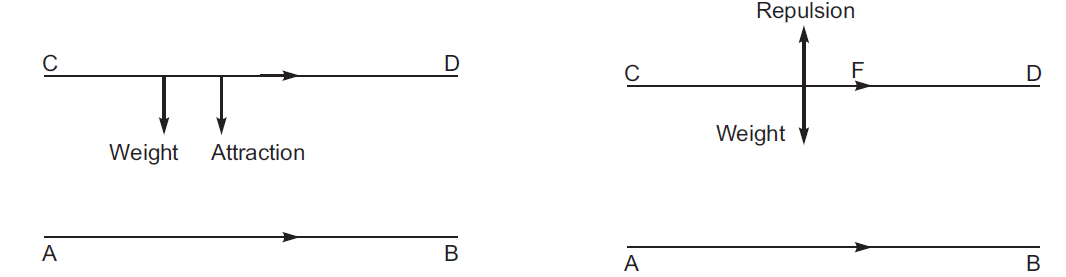

$1.$ Current carrying conductors repel each other, if current flows in the opposite direction.
$2.$ Attract each other if current flows in the same direction.
If wire $CD$ remain suspended above $AB$ then
$F_{repulsion} =$Weight
$\frac{\mu_{0}\text{I}_{1}\text{I}_{2}l}{2\pi\text{r}} = \text{mg}$
where $r =$ Separation between the wires
$\frac{\text{m}}{l} = \frac{\mu_{0}\text{I}_{1}\text{I}_{2}}{2\pi\text{rg}}$
$ = \frac{2\times10^{-7}\times12\times5}{1\times10^{-3}\times10}$
$=1.2\times10^{–3} \text{kg/m}$
Current in $CD$ should be in opposite direction to that in $AB.$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A wire of length 1m and radius 0.1mm has a resistance of $100\Omega.$ Find the resistivity of the material.View Solution

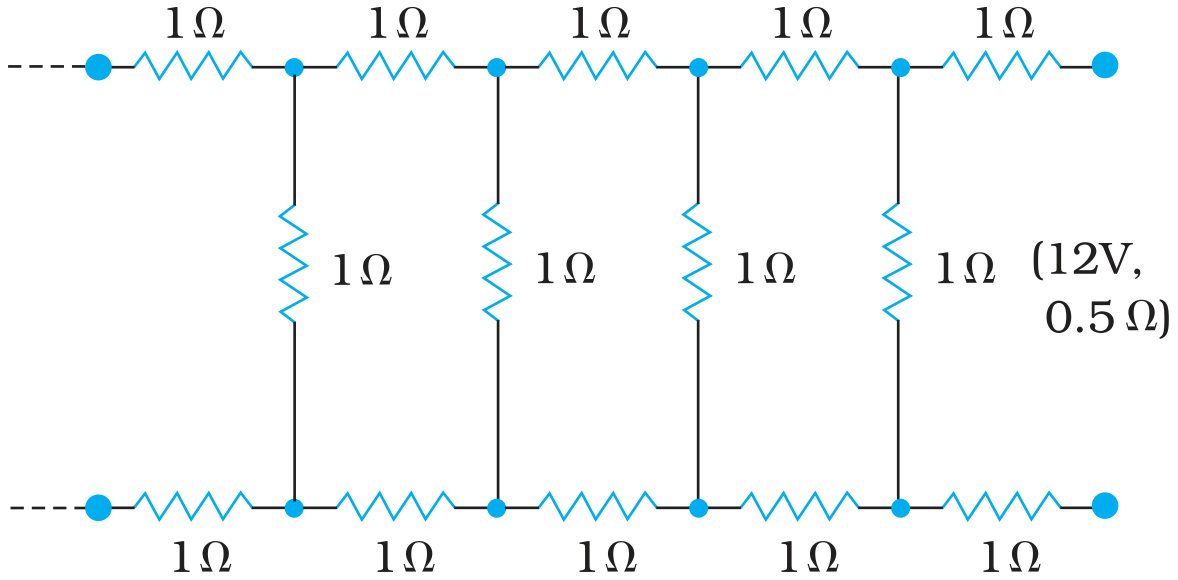

- 2Determine the current drawn from a 12 V supply with internal resistance $0.5\ \Omega$ by the infinite network shown in Fig. Each resistor has $1\ \Omega$ resistance.View Solution
- 3View SolutionTwo heated wires of the same dimensions are first connected in series and then in parallel to a source of supply. What will be the ratio of heat produced in the two cases?
- 4View Solution
- Two cells of emf $E_1$ and $E_2$ have their internal resistances $r_1$ and $r_2$, respectively. Deduce an expression for the equivalent emf and internal resistance of their parallel combination when connected across an external resistance $R.$ Assume that the two cells are supporting each other.
- In case the two cells are identical, each of emf $E = 5V$ and internal resistance $\text{r}=2\Omega,$ calculate the voltage across the external resistance $\text{R}=10\Omega.$
- 5View SolutionName the charge carriers of electric current in:
- Silver foil.
- Hydrogen discharge tube.
- Germanium semiconductor.
- Wire made of alloy nichrome.
- Superconductor.
- 6View SolutionDefine relaxation time of the free electrons drifting in a conductor. How is it related to the drift velocity of free electrons? Use this relation to deduce the expression for the electrical resistivity of the material.
- 7A storage battery of emf $8.0 V$ and internal resistance $0.5\ \Omega$ is being charged by a $120 V\ dc$ supply using a series resistor of $15.5\ \Omega.$ What is the terminal voltage of the battery during charging? What is the purpose of having a series resistor in the charging circuit?View Solution
- 8View SolutionA cylindrical metallic wire is stretched to increase its length by 10%. Calculate the percentage increase in its resistance.

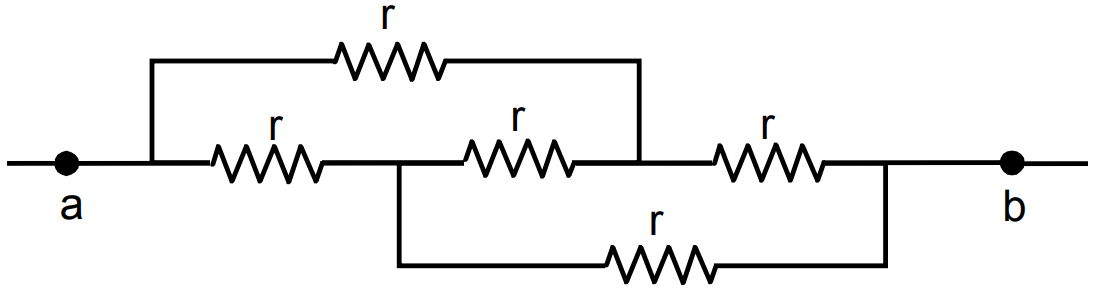

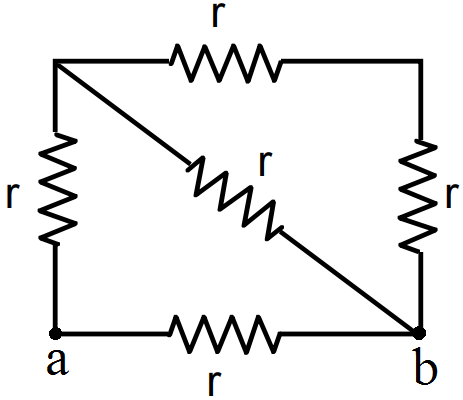

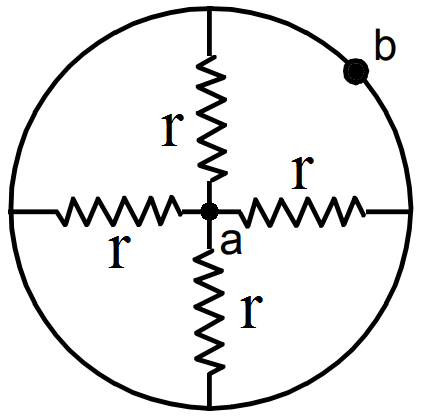

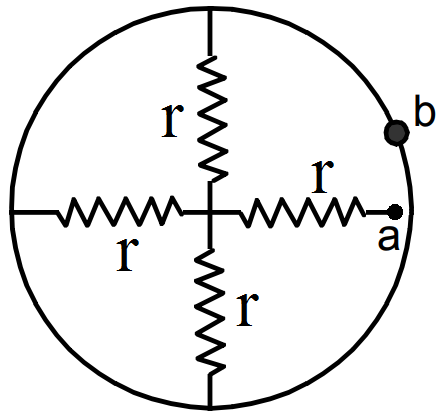

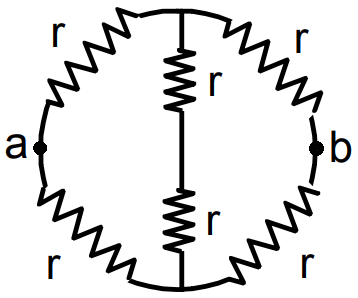

- 9View SolutionFind the equivalent resistances of the networks shown in the figure. between the points a and b.
