A wire of length 1m and radius 0.1mm has a resistance of $100\Omega.$ Find the resistivity of the material.
Download our app for free and get started
$\ell=1\text{m},\text{r}=0.1\text{mm}=0.1\times10^{-3}\text{m}$
$\text{R}=100\Omega,\text{f}=?$
$\Rightarrow\text{R}=\frac{\text{f}\ell}{\text{a}}$
$\Rightarrow\text{f}=\frac{\text{Ra}}{\ell}=\frac{100\times3.14\times0.1\times0.1\times10^{-6}}{1}$
$=3.14\times10^{-6}=\pi\times10^{-6}\Omega\text{-m}.$
$\text{R}=100\Omega,\text{f}=?$
$\Rightarrow\text{R}=\frac{\text{f}\ell}{\text{a}}$
$\Rightarrow\text{f}=\frac{\text{Ra}}{\ell}=\frac{100\times3.14\times0.1\times0.1\times10^{-6}}{1}$
$=3.14\times10^{-6}=\pi\times10^{-6}\Omega\text{-m}.$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A resistance of R draws current from a potentiometer. The potentiometer wire $, AB, $ has a total resistance of $R_o. A$ voltage $V$ is supplied to the potentiometer. Derive an expression for the voltage across $R$ when the sliding contact is in the middle of potentiometer wire.View Solution
- 2A potentiometer wire of length 1 m has a resistance of 5 $\Omega$. It is connected to a 8 V battery in series with a resistance of 15 $\Omega$. Determine the emf of the primary cell which gives a balance point at 60 cm.View Solution

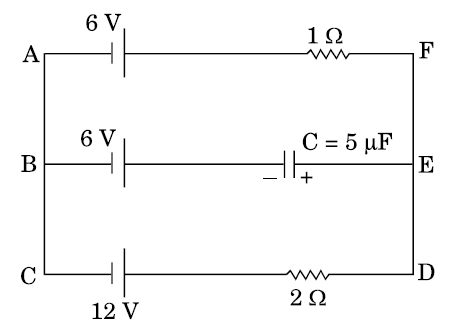

- 3View SolutionIn the given circuit, with steady current, calculate the potential difference across the capacitor and the charge stored in it.
