Question
- Draw the circuit diagram of a fullwave rectifier using $p-n$ junction diode. Explain its working and show the output, input waveforms.
- Show the output waveforms $(Y)$ for the following inputs $A$ and $B$ of
- $OR$ gate.
- $\ce{NAND}$ gate.
✓
Answer
Duringfirsthalf cycle:
A is positive $\ce{w.r.t}$ centre tap but $B$ is negative, hence only diode $D_1$ conducts and current flows through the load in the sense $X$ to $Y$.
During the second half cycle:
B is positive $\ce{w.r.t}$ centre tap but $A$ is negative hence only diode $D_2$ conducts and again send currents through load from $X$ and $Y$.
$\therefore$ Current through the load, in both the halves of input, is unidirectional.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
More "5 Marks Questions" from Semiconductor Electronic: Material, Devices And Simple Circuits→Semiconductor Electronic: Material, Devices And Simple Circuits — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→
Similar questions
A beam of light converges at a point P. Now a lens is placed in the path of the convergent beam 12 cm from P. At what point does the beam converge if the lens is (a) a convex lens of focal length 20 cm, and (b) a concave lens of focal length 16 cm?
Continuous $X-$rays are made to strike a tissue paper soaked with polluted water. The incoming $X-$rays excite the atoms of the sample by knocking out the electrons from the inner shells. Characteristic $X-$rays are analysed and the intensity is plotted against the wavelength. Assuming that only $\text{K}_\alpha$ intensities are detected, list the elements present in the sample from the plot. Use Moseley's equation $v - (25 \times 10^{14}Hz)(Z - 1)^2.$

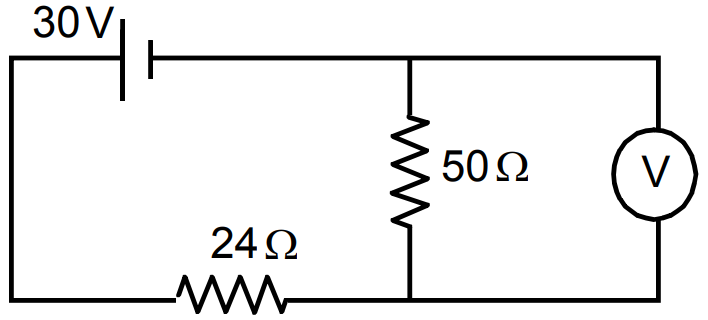

→The voltmeter shown in the figure. reads 18V across the $50\Omega$ resistor. Find the resistance of the voltmeter.
