Four equal capacitors, each of capacity $C$, are arranged as shown. The effective capacitance between $A$ and $B$ is
Easy
Download our app for free and get started

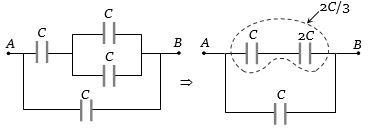

(c) The given circuit can be simplified as follows
Equivalent capacitance between $A$ and $B$ is ${C_{AB}} = \frac{5}{3}\,C$
Equivalent capacitance between $A$ and $B$ is ${C_{AB}} = \frac{5}{3}\,C$
