The current through a wire depends on time as $\text{i}=\text{i}_0+\alpha\text{t},$
Where $\text{i}_0=10\text{A}$ and $\alpha=4\text{A/ s}.$ Find the charge that crosses through a section of the wire in 10 seconds.
Where $\text{i}_0=10\text{A}$ and $\alpha=4\text{A/ s}.$ Find the charge that crosses through a section of the wire in 10 seconds.
Download our app for free and get started
$\text{i}=\text{i}_0+\alpha\text{t},\ \text{t}=10\text{sec},$ $\text{i}_0=10\text{A},\alpha=4\text{A}/\text{ sec}$
$\text{q}=\int\limits^\text{t}_0\text{idt}=\int\limits^\text{t}_0(\text{i}_0+\alpha\text{t})\text{dt}=\int\limits^\text{t}_0\text{i}_0\text{dt}+\int\limits^\text{t}_0\alpha\text{tdt}$
$=\text{i}_0\text{t}+\alpha\frac{\text{t}^2}{2}=10\times10+4\times\frac{10\times10}{2}$
$=100+200=300\text{C}.$
$\text{q}=\int\limits^\text{t}_0\text{idt}=\int\limits^\text{t}_0(\text{i}_0+\alpha\text{t})\text{dt}=\int\limits^\text{t}_0\text{i}_0\text{dt}+\int\limits^\text{t}_0\alpha\text{tdt}$
$=\text{i}_0\text{t}+\alpha\frac{\text{t}^2}{2}=10\times10+4\times\frac{10\times10}{2}$
$=100+200=300\text{C}.$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionThe specification on a heater coil is 250V, 500W. Calculate the resistance of the coil. What will be the resistance of a coil of 1000W to operate at the same voltage?
- 2The potential difference between the terminals of a battery of emf 6.0V and internal resistance $1\Omega$ drops to 5.8V when connected across an external resistor. Find the resistance of the external resistor.View Solution
- 3View SolutionA number of identical cells, n, each of emf E, internal resistance r connected in series are charged by a d.c. source of emf E', using a resistor R.
- Draw the circuit arrangement.
- Deduce the expressions for (a) the charging current and (b) the potential difference across the combination of the cells.
- 4View SolutionIn the given circuit, with steady current, calculate the potential drop across the capacitor and the charge stored in it.
- 5A parallel$-$plate capacitor with plate area $20\ cm^2$ and plate separation $1.0\ mm$ is connected to a battery. The resistance of the circuit is $10\text{k}\Omega.$ Find the time constant of the circuit.View Solution
- 6View SolutionDefine relaxation time of the free electrons drifting in a conductor. How is it related to the drift velocity of free electrons? Use this relation to deduce the expression for the electrical resistivity of the material.
- 7View SolutionThe following circuit shows the use of potentiometer to measure the internal resistance of a cell:
- When the key is open, how does the balance point change, if the current from the driver cell decreases?
- When the key K is closed, how does the balance point change if R is increased keeping current from the driver cell constant?
- 8What length of a copper wire of cross$-$sectional area $0.01\ mm^2$ will be needed to prepare a resistance of $1\text{k}\Omega?$ Resistivity of copper $=1.7\times10^{-8}\Omega\text{-m}.$View Solution

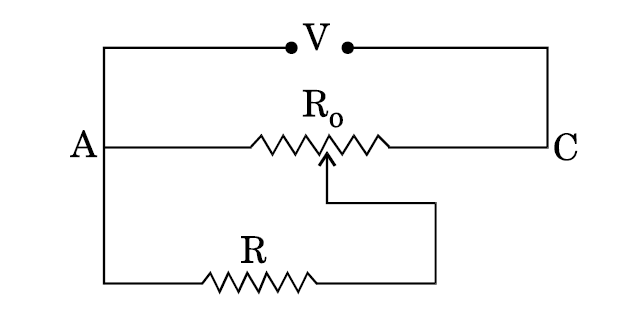

- 9A resistance of $R \Omega$ draws current from a potentiometer as shown in the figure. The potentiometer has a total resistance $R_o\Omega$ . A voltage $V$ is supplied to the potentiometer. Derive an expression for the voltage across $R$ when the sliding contact is in the middle of the potentiometer.View Solution
