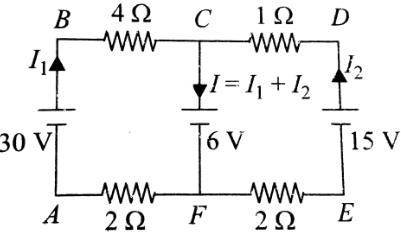

The figure shows a network of four resistances and three batteries Which of the battery is getting charged.
