Chemistry Case study (4 Marks)

The Solid State · Uttarakhand Board (UBSE) STD 12 Science (Uttarakhand - English Medium). 9 questions.

Questions

Case study (4 Marks)

Take a timed test

9 questions · self-marked practice — reveal the answer and mark yourself.

Question 14 Marks
Read the passage given below and answer the following questions:In contrast to the disorders of gases and liquids, there is translational order in crystals. However, disordered or amorphous solids also exist which lack such order, they are really highly viscous liquids. In translational order entire structure or lattice, can be generated by repeated replication of a small regular figure, termed as unit cell. The planes of any crystalline structure can be specified using Miller indices, which is also serve to identify single crystal faces.The ordered structure, or lattice, of a solid can be determined by X-ray or neutron diffraction studies, in which a beam of X-rays of neutrons is scattered from the sample to produce a diffraction pattern which can be analyzed to reveal the crystal structure of the sample. All crystal lattices can be classified into 14 Bravais lattices belonging to 7 systems. For example, the simple cubic, face-centred cubic and body-centred cubic lattices are the 3 lattices of the cubic system. Cubic and hexagonal close-packed structures have the structure of tightly packed spheres, where each sphere touches 12 neighbours, 6 in the same plane and 3 above and 3 below. These two dose-packed structures differ in the placement of successive planes or layers. For the hexagonal close packing, a third layer is laid down to reproduce the first layer, so that the structure could be represented by ABABAB …. For cubic close packing, third layer is again displaced, corresponding to ABCABC.
The following questions are multiple choice questions. Choose the most appropriate answer:
  1. In hexagonal close packing, a sphere has coordination number of.
  1. 4
  2. 6
  3. 8
  4. 12
  1. Which of the following arrangements correctly represents hexagonal and cubic close packed structure respectively?
  1. ABCABC...and ABAB...
  2. ABAB...and ABCABC...
  3. Both have ABAB ... arrangement.
  4. Both have ABCABC... Arrangement.
  1. The arrangement of the first two layers, one above the other, in hep and ccp arrangements is.
  1. Exactly same in both cases
  2. Partly same and partly different
  3. Different from each other
  4. Nothing definite.
  1. Which of the following statements is not correct?
  1. The amorphous solids have a random, disordered arrangement of constituents.
  2. The simple cubic, face-centred and body-centred are the three lattices of the cubic system.
  3. The number of Bravais lattice in which a crystal can be categorized is 7.
  4. A metal that crystallizes in hep structure has coordination number 12.
  1. Which of the following statements about amorphous solids is incorrect?
  1. They melt over a range of temperature.
  2. There is no orderly arrangement of particles.
  3. They are anisotropic.
  4. They are rigid and incompressible.
Answer
  1. (d) 12
Explanation:

For hcp packing, the coordination number of each sphere is 12 (6 in its own layer, 3 in the upper layer and 3 in the lower layer).
  1. (b) ABAB .... and ABCABC...
Explanation:

In hexagonal close packing, each sphere of third layer lies exactly above the sphere of first layer. Thus, hep is abbreviated as ABAB .... In cubic close packing, the spheres of third layer do not come over those of first layer and spheres of fourth layer correspond with those in first layer. Thus, it is represented as AB CAB C...
  1. (a) Exactly same in both cases.
  2. (c) The number of Bravais lattice in which a crystal can be categorized is 7.
Explanation:

The number of Bravais lattice in which a crystal can be categorized is 14.
  1. (c) They are anisotropic.
Explanation:

They are isotropic as they show same properties in all directions.
View full question & answer→
Question 24 Marks
Read the passage given below and answer the following questions:

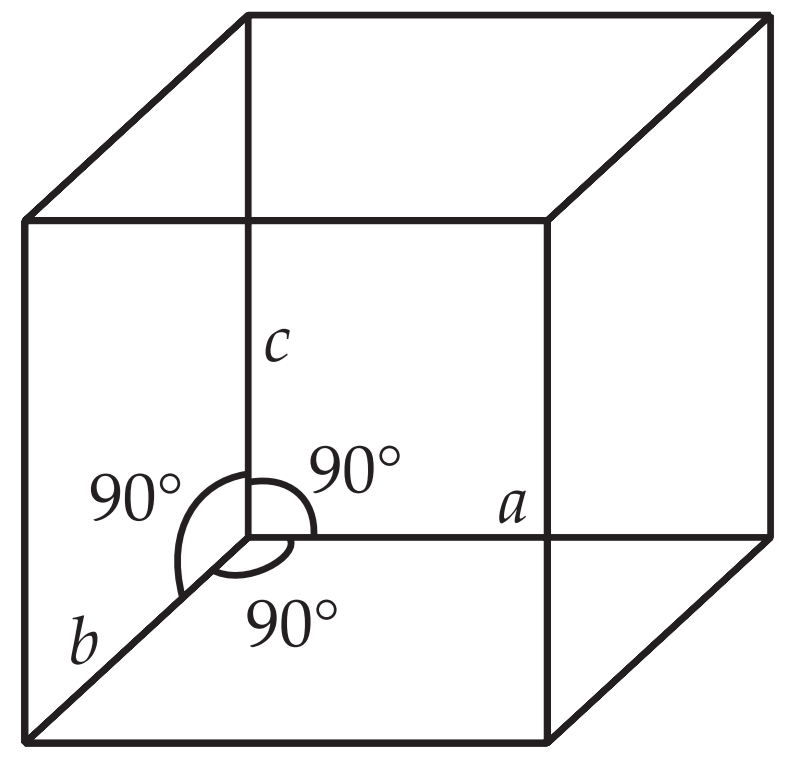

Most important crystal lattices are the simple cubic, body centred cubic and face centred cubic. In simple cubic lattice, all the atoms are present at all the corners of the cube. In body-centred cubic lattice, atoms are present at all the corners and at the body-centre. In face-centred cubic lattice, atoms are present at the corners and at the centers of all six faces. In the formation of crystals, the constituent particles get closely packed together. The closely packed arrangement is that in which maximum available space is occupied, leaving minimum vacant space. The most efficient close packing, can be achieved in two ways, one which is called hexagonal close packing.(hcp) and the other, cubic close packing (ccp or fcc)
In these questions (Q. No. i-iv) a statement of assertion followed by a statement of reason is given. Choose the correct answer out of the following choices.
  1. Assertion and reason both are correct statements, and reason is correct explanation for assertion.
  2. Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
  3. Assertion is correct statement, but reason is wrong statement.
  4. Assertion is wrong statement, but reason is correct statement.
  1. Assertion: Face centred cubic cell has $4$ atoms per unit cell.
Reason: ln fee unit cell, there are $8$ atoms at the corners and $ 6$ atoms at face centres
  1. Assertion: CsCl has body-centred cubic arrangement.
Reason: CsCl has one $Cs^+$ ion and $8$ $CI^-$ ions in its unit cell.
  1. Assertion: fcc and hcp have same packing efficiency.
Reason: bcc and fcc both have same number of atoms per unit cell and same arrangement.
  1. Assertion: The total number of atoms present in a simple cubic unit cell is one.
Reason: Simple cubic unit cell has atoms at its corners, each of which is shared between eight adjacent unit cells.
  1. Assertion: The packing efficiency is maximum for the fee structure.
Reason: The coordination number is $12$ in fcc structures.
Answer
  1. (a) Assertion and reason both are correct statements, and reason is correct explanation for assertion.
  2. (a) Assertion and reason both are correct statements, and reason is correct explanation for assertion.
Explanation:

CsCl has body-centred cubic arrangement in which atoms are present at the corners and at the body center. Now, $Cs^+$ is present at the body centre while$ Cl$ ions are present at the corners. So, number of $Cl^- ions = 8$ Number of $Cs^+ ion = 1$
  1. (c) Assertion is correct statement, but reason is wrong statement.
Explanation:

fcc and hcp both have $74\%$ packing efficiency. In bee there are $2$ atoms per unit cell while in fee there are $4$ atoms per unit cell and both have different arrangements.
  1. (a) Assertion and reason both are correct statements, and reason is correct explanation for assertion.
  2. (b) Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
Explanation:

The no. of atoms in fee structure is $4$ per unit cell, which provides a maximum efficiency as $74\%.$
View full question & answer→
Question 34 Marks
Read the passage given below and answer the following questions:
In ideally ionic structures, the coordination numbers of the ions are determined by electrostatic considerations. Cations surround themselves with as many anions as possible, and vice versa. This maximizes the attractions between neighbouring ions of opposite charge and hence maximizes the lattice energy of the crystal. This requirement led to the formulation of the radius ratio rule for ionic structures, in which the ions and the structure adopted for a particular compound depend on the relative sizes of the ions. Thus, for the stable ionic crystalline structures, there is definite radius ratio limit for a cation to fit perfectly in the lattice of anions, called radius ratio rule. This depends upon the ratio of radii of two types of ions $\frac{\text{r}_+}{r}$This ratio for coordination numbers $3, 4, 6$ and $8$ are respectively $0.155 - 0.225, 0.225 - 0.414, 0.414 - 0.732$ and $0.732 - 1.000$. The coordination number of ionic solids also depends upon temperature and pressure. On applying high pressure, coordination number increases. On the other hand, on applying high temperature, it decreases.
The following questions are multiple choice questions. Choose the most appropriate answer:
  1. The ionic radii of $K^+,Rb^+$ and $Br-$ are $137, 148$ and $195$pm. The coordination number of cation in RbBr and KBr structures are respectively.
  1. $8, 6$
  2. $6, 4$
  3. $6, 8$
  4. $4, 6$
  1. For a coordination number $4,$ the maximum limiting radius ratio is.
  1. $0.414$
  2. $0.732$
  3. $0.225$
  4. $0.155$
  1. If the radius of $Na^+$ ion is 95 pm and that of $Cl^-$ ion is $181$  pm, the coordination number of $Na^+$ ion is.
  1. $6$
  2. $4$
  3. $8$
  4. $12$
  1. Which is not the correct statement for ionic solids, in which positive and negative ions are held by strong electrostatic attractive forces?
  1. The radius ratio $\frac{\text{r}_+}{r}$ increases as coordination number increases.
  2. As the difference in size of ions increases, coordination number increases.
  3. When coordination number is eight, $\frac{\text{r}_+}{r}$ ratio lies between $0.225$ to $0.414.$
  4. In ionic solid of the type AX (ZnS, wurtzite), the coordination number of $Zn^2$ and $S^2$- respectively are $4 $and $4.$
  1. If the pressure of CsCl is increased, then its coordination number will.
  1. Increase
  2. Remain the same
  3. Decrease
  4. None of these.
Answer
  1. (a) $8, 6$
Explanation:
$\frac{\text{r}(\text{Rb}^+)}{\text{r}(\text{Rb}^-)}=\frac{148}{195}=0.76$ (C.N. $8$ above $0. 732$)
$\frac{\text{r}(\text{k}^+)}{\text{r}(\text{br}^-)}=\frac{137}{195}=0.702$ (C.N. $6$ between $0.414 - 0.732$)
  1. (a) $0.414$
  2. (a)$ 6$
Explanation:
$\frac{\text{r_+}}{\text{r_}}=\frac{\text{r}(\text{Na}^+)}{\text{r}(\text{CI}^-)}=\frac{95}{181}=0.524$
The radius ratio lies between $0.414 - 0.732.$
Hence, $Na^+$ ions prefer to occupy octahedral holes having coordination number $6.$
  1. (c) When coordination number is eight, $\frac{\text{r}_+}{\text{r}_-}$ ratio lies between $0.225$ to $0.414.$
Explanation:
When coordination number is $8 \frac{\text{r}_+}{\text{r}}$ratio lies between $0.732 - 1$
  1. (a) Increase
Explanation:
If the pressure of CsCl is increased, then its coordination number will increase.

View full question & answer→
Question 44 Marks
Read the passage given below and answer the following questions:
The idealized ionic solid consists of two interpenetrating lattices of oppositely-charged point charges that are held in place by a balance of coulombic force of long range. But real ions occupy space, no such "perfect" ionic solid exists in nature. Chemists usually apply the term "ionic solid" to binary compounds of the metallic elements of groups $1 - 2$ with one of the halogen elements or oxygen. The most well known ionic solid is sodium chloride, also known by its geological names as rock-salt or halite. Structurally, each ion in sodium chloride is surrounded and held in tension by six neighbouring ions of opposite charge; this is known as $(6, 6)$ coordination. The resulting crystal lattice is of a type known as simple cubic. There are many other fundamental ionic structures (not all cubic) and these are: Zinc blende structure $(ZnS) $: having ccp arrangement of $S^2-$ and $Zn^{2+}$ in alternate tetrahedral voids; Wurtzite structure $(ZnS)$ having hcp arrangement of $S^2-$ and $Zn^{2+}$ in alternate tetrahedral voids; Fluorite structure $(CaF2)$ having ccp arrangement of $Ca^{2+}$ and$ F^-$ in all tetrahedral voids Antifluorite structure $(Na_2O)$ having ccp arrangement of $O^{2-}$ and $Na^+$ in all tetrahedral voids. These solids tend to be quite hard and have high melting points.
The following questions are multiple choice questions. Choose the most appropriate answer.
  1. In $NaCl$ crystal, each $Cl^-$ ion is surrounded by.
  1. $4\ Na^+$ ions
  2. $6\ Na^+$ ions
  3. $1\ Na^+$ ion
  4. $2\ Na^+$ ions
  1. In an antifluorite structure, cations occupy.
  1. Tetrahedral voids.
  2. Centre of cube
  3. Octahedral voids
  4. Corners of cube.
  1. Anti fluorite structure is derived from fluorite structure by.
  1. Heating fluorite crystal lattice.
  2. Subjecting fluorite structure to high pressure.
  3. Interchanging the positions of positive and negative ions in the lattice.
  4. None of these.
  1. In crystal structure of sodium chloride, the arrangement of $Cl^-$ion is.
  1. fcc
  2. both fcc and bcc
  3. bcc
  4. None of these
  1. Ionic solid $BaF_2$ has which kind of structure?
  1. Fluorite
  2. Antifluorite
  3. Wurtzite
  4. Rock-salt
Answer
  1. (b) $6$ $Na^+$ ions
Explanation:
In $NaCl$ crystal, each $Cl^-$ ion is surrounded by $6$ $Na^+$ ions.
  1. (a) Tetrahedral voids.
Explanation:
Anti-fluorite structure $(NaCl)$ have ccp arrangement of $O^{2-}$ and $Na^+$ in all tetrahedral voids.
  1. (c) Interchanging the positions of positive and negative ions in the lattice.
Explanation:
Antifluorite structure is derived from fluorite structure by interchanging the positions of positive and negative ions.
  1. (a)$ fcc$
Explanation:
In NaCl crystal structure, $Cl^-$ ions form $fcc.$
  1. (a) Fluorite
Explanation:
$BaF_2$ has fluorite structure.
View full question & answer→
Question 54 Marks
Read the passage given below and answer the following questions:
In an assembly of atoms or molecules, a solid phase is formed whenever the interatomic attractive forces significantly exceed the disruptive thermal forces and thus restrict the mobility of atoms, forcing them into more or less fixed positions. From energy considerations, it is evident that in such solids the atoms or molecules will always attempt to assume highly ordered structures which are characterised by symmetry. Depending on the nature of the active interatomic forces, all solids may be subdivided into the following categories :
Ionic solids: These solids consist of positively and negatively charged ions arranged in a regular fashion throughout the solid. These solids are very hard and brittle, have very high melting points and have high enthalpies of vaporisation, e.g., NaCl, MgO, KCl, LiCl etc.
Covalent solids: In these solids, the constituent particles are atoms which are linked together by a continuous system of covalent bonds. These bonds are strong and directional in nature. The covalent crystals are hard, have high melting points, are poor conductors of electricity. Diamond is a typical example of covalent solids.
Metallic solids: ln these solids, the constituent particles are positive ions immersed in a sea of mobile electrons. Metallic solids may be hard as well as soft. They are good conductors of heat and electricity, e.g., common metals such as nickel, copper and alloys.
Molecular solids: ln these the constituent particles are molecules. The molecules are held together by dispersion forces or London forces, dipole-dipole forces or hydrogen bonds.
In these questions (Q. No. i-iv), a statement of assertion followed by a statement of reason is given. Choose the correct answer out of the following choices.
  1. Assertion and reason both are correct statements, and reason is correct explanation for assertion.
  2. Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
  3. Assertion is correct statement, but reason is wrong statement.
  4. Assertion is wrong statement, but reason is correct statement.
  1. Assertion: Molecular solids are characterized by low melting point.
Reason: Molecular solids are made up of covalent molecules.
  1. Assertion: Ionic solids are characterized by high melting and boiling point.
Reason: Ionic solids have coulombic forces of attraction between their ions.
  1. Assertion: Covalent solids are insulators of electricity.
Reason: Covalent solids are constituted by ions.
  1. Assertion: Diamond and graphite do not have the same covalent structure.
Reason: Silicon carbide is typical example of network solid.
  1. Assertion: Covalent solids have high melting points.
Reason: Covalent solids have strong electrostatic forces of attraction.
Answer
  1. (b) Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
Explanation:

In molecular solids, molecules are held together by weak forces of attractions.
  1. (a) Assertion and reason both are correct statements, and reason is correct explanation for assertion.
  2. (c) Assertion is correct statement, but reason is wrong statement.
Explanation:

Covalent solids are constituted by atoms which can not conduct electricity. That is why covalents solids are insulators of electricity. Covalent solids are constituted by atoms.
  1. (b) Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
  2. (c) Assertion is correct statement, but reason is wrong statement.
Explanation:

In covalent solids, constituent particles are linked together by covalent bonds.
View full question & answer→
Question 64 Marks
Read the passage given below and answer the following questions:
In hexagonal system of crystals, a frequently encountered arrangement of atoms, is described as a hexagonal prism. Here, the top and bottom of the cell are regular hexagons and three atoms are sandwiched in between them. A space-filling model of this structure, called hexagonal close packed (hep), is constituted of a sphere on a flat surface surrounded in the same plane by six identical spheres as closely as possible. Three spheres are then placed over the first layer so that they touch each other and represent the second layer. Each one of these three spheres touches three spheres of the bottom layer. Finally, the second layer is covered with a third layer that is identical to the bottom layer in relative position.
The following questions are multiple choice questions. Choose the most appropriate answer:
  1. The number of atoms in this hep unit cell is.
  1. 4
  2. 6
  3. 12
  4. 17
  1. The number of atoms in this hep unit cell is.
  1. $24\sqrt{2\pi^3}$
  2. $16\sqrt{2\text{r}^3}$
  3. $12\sqrt{2\text{r}^3}$
  4. $\frac{64}{3\sqrt{3}}\text{r}^3$
  1. The empty space in this hcp unit cell is.
  1. 74%
  2. 47.6%
  3. 32%
  4. 26%
  1. Which of the following statements is correct about hexagonal close packing?
  1. In this arrangement, third layer is identical to the first layer.
  2. The coordination number in this arrangement is 6.
  3. It is as closely packed as body centered cubic packing.
  4. It has 32% empty space.
  1. In hexagonal close packing of spheres in three-dimensions.
  1. In one unit cell there are 12 octahedral voids and all are completely inside the unit cell.
  2. In one unit cell there are six octahedral voids and all are completely inside the unit cell.
  3. In one unit cell there are six octahedral voids out of which three are completely inside the unit cell and other three are from contributions of octahedral voids which are partially inside the unit cell.
  4. In one unit cell there are 12 tetrahedral voids, all are completely inside the unit cell.
Answer
  1. (b) 6
  2. (a) $24\sqrt{2\pi^3}$
Explanation:

Height of unit cell $=4\pi\sqrt{\frac{2}{3}}$

Volume of unit cell = Height × Base area

$=4\pi\sqrt{\frac{2}{3}}\times6\times\frac{\sqrt{3}}{4}\times4\pi^2=24\sqrt{2\text{r}^3}$
  1. (d) 26%
Explanation:

Packing fraction $=\frac{\text{Volume of the atoms in one unit cell}}{\text{Volumeof one unit cell }}$

$=\frac{6\times\frac{4}{3}\pi\text{r}^3}{24\sqrt{2\text{r}^3}}=\frac{\pi}{3\sqrt{2}}=0.74=74\%$

$\therefore$ Empty space = 26%
  1. (a) In this arrangement, third layer is identical to the first layer.
  2. (b) In one unit cell there are six octahedral voids and all are completely inside the unit cell.
View full question & answer→
Question 74 Marks
Read the passage given below and answer the following questions:
Electron microscopic study of crystal defects enables us not only to reveal various structural imperfections, but also to discover their formation, mechanisms and to understand their effects on the properties of solid materials. There are commonly two types of imperfections: electronic imperfections and atomic imperfections or point defects.Electronic imperfections correspond to defects in ionic crystal due to the electrons. Atomic imperfections or point defects correspond to the irregularity of atoms around a point or an atom. The point defects in ionic crystals may be classified as: defects in stoichiometric crystals, defects in non-stoichiometric crystals and impurity defects. In stoichiometric crystals, generally two types of defects are observed: Schottky defect and Frankel defect. Schottky defect arises when some of the atoms or ions are missing from their normal lattice sites. Due to the schottky defect, density of ionic crystals decreases markedly. For example NaCl, KCl, CsCl, AgBr ionic solids have schottky defects. It has been observed that in NaCl, there are about $10^6$ Schottky pairs per cm 'at room temperature. Frankel defect arises when an ion is missing from its normal position and occupies an interstitial site between the lattice points. It does not affect the density of the crystals. In non-stoichiometric crystals, two types of defects are there ; metal excess defects and metal deficient defects. In metal excess defect, the positive ions are in excess whereas in metal deficient defects, number of positive ions are less than the negative ions. Impurity defects arise due to presence of some impurity ions at the lattice sites.
In these questions (Q. No. i-iv), a statement of assertion followed by a statement of reason is given. Choose the correct answer out of the following choices.
  1. Assertion and reason both are correct statements, and reason is correct explanation for assertion.
  2. Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
  3. Assertion is correct statement, but reason is wrong statement.
  4. Assertion is wrong statement, but reason is correct statement.
  1. Assertion: In any ionic solid (MX) with Schottky defects, the number of positive and negative ions are same.
Reason: Equal number of cation and anion vacancies are present.
  1. Assertion: Due to Frenkel defect, there is no effect on the density of the crystalline solid.
Reason: In Frenkel defect, no cation or anion leaves the crystal.
  1. Assertion: The presence of a large number of Schottky defects in NaCl lowers its density.
Reason: In NaCl, there are approximately $10^6$ Schottky pairs per $cm^3$ at room temperature.
  1. Assertion: No compound has both Schottky and Frenkel defects.
Reason: Schottky defects change the density of the solid.
  1. Assertion: NaCl and KCl show metal excess defect.
Reason: Zinc oxide is white in colour at room temperature and on heating it loses oxygen and turns yellow due to metal excess defect.
Answer
  1. (a) Assertion and reason both are correct statements, and reason is correct explanation for assertion.
Explanation:
In Schottky defect, equal number of cations and anions are missing from their lattice sites. Therefore, an ionic solid MX with Schottky defect will still have the same number of anions and cations.
  1. (a) Assertion and reason both are correct statements, and reason is correct explanation for assertion.
Explanation:
In a Frenkel defect, an ion leaves its position in the lattice and occupies normally vacant interstitial position.
  1. (b) Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
Explanation:
Schottky defects arise because of missing of cations or anions from their lattice sites, which lowers the density of crystal system.
  1. (d) Assertion is wrong statement, but reason is correct statement.
Explanation:
AgBr has both Schottky and Frenkel defect. Schottky defects lower the density of the crystal.
  1. (b) Assertion and reason both are correct statements, but reason is not correct explanation for assertion.
Explanation:
ZnO shows such colour due to metal excess defect because of the presence of extra cation in interstitial sites.
View full question & answer→
Question 84 Marks
Read the passage given below and answer the following questions:
In an ideal crystal, there must be regular repeating arrangement of the constituting particles and its entropy must be zero at absolute zero temperature. However, it is impossible to obtain an ideal crystal, and it suffers from certain defects called imperfections. In pure crystal, these defects arises either due to disorder or dislocation of the constituting particles from their normal positions or due to the movement of the particles even at absolute zero temperature. Such defects increase with rise in temperature. In addition to this, certain defects arise due to the presence of some impurities. Such defects not only modify the existing properties of the crystalline solids, but also impart certain new characteristics to them.
The following questions are multiple choice questions. Choose the most appropriate answer:
  1. $AgCl$ is crystallized from molten $AgCl$ containing a little $CdCl_2$ The solid obtained will have.
  1. Cationic vacancies equal to number of $Cd^{2+}$ ions incorporated.
  2. Cationic vacancies equal to double the number of $Cd^{2+}$ ions.
  3. Anionic vacancies.
  4. Neither cationic nor anionic vacancies.
  1. Lattice defect per $10^{15}$ $NaCl$ is $1$. What is the number of lattice defects in a mole of $NaCl?$
  1. $6.02 \times 10^{23}$
  2. $6.02 x 10^8$
  3. $10^{14}$
  4. None of these
  1. The ionic substances in which the cation and anion are of almost similar size shows.
  1. Non-stoichiometric defect
  2. Schottky defect
  3. Frenkel defect
  4. All of these.
  1. If $Al^{3+}$ ions replace $Na^+$ ions at the edge centres of $NaCl$ lattice, then the number of vacancies in $1$ mole of $NaCl$ will be.
  1. $3.01 \times 10^{23}$
  2. $6.02 \times 10^{23}$
  3. $9.03 \times 10^{23}$
  4. $12.04 \times 10^{23}$
  1. Which of the following gives both Frenkel and Schottky defect?
  1. $AgCl$
  2. $CsCl$
  3. $KCl$
  4. $AgBr$
Answer
  1. (a) Cationic vacancies equal to number of $Cd^{2+}$ ions incorporated.
Explanation:

In the crystallisation, some $Ag^+$ ions will get replaced by $Cd^{2+}$ ions and each $Cd^{2+}$ ion replaces two $Ag^+$ ions so as to maintain electrical neutrality. Thus, the cation vacancies will be the same as the number of $Cd^{2+}$ ions incorporated.
  1. (b) $6.02 x 10^8$
Explanation:

Number of defects per mole of NaCl

$=\frac{1\times6.02\times10^{23}}{10^{15}}=6.02\times10^8$
  1. (b) Schottky defect
Explanation:

Schottky defect is shown by highly ionic compounds, e.g., $NaCI, KCl, KBr, AgBr, CsCl$, etc.
  1. (a) $3.01 \times 10^{23}$
Explanation:

There are $12$ edge centres. $1$ Contribution of $Na^+$ ions at edge centres $=12\times\frac{1}{4}=3$ Besides, there is one $Na^+$ ion at body centre. $4$ Thus, there are four $Na^+$ ions per unit cell.$\frac{3}{4}$ are replaced by $Al^3 +$ ions.

Total $Na^+$ ions in $1$ mole of $NaCl = 6.023 \times 10^{23} Na^+$ ion replaced by $Al^{3+} =\frac{3}{4}\times6.023\times10^{23}$ $1$ $Al^{3+}$ replaces $3 Na^+$ ions thereby creating 2 vacancies.

$\therefore\text{No of vacancies created}=\frac{2}{3}\times\bigg(\frac{3}{4}\times6.023\times10^{23}\bigg)$

$=3.01\times10^{23}$
  1. (d) $AgBr$
Explanation:

In $AgBr, Ag^+$ ions are small in size and when removed from lattice point they can occupy interstitial site and therefore show both Frenkel and Schottky defects.
View full question & answer→
Question 94 Marks
Read the passage given below and answer the following questions:
The adjective 'crystalline' when applied to solids, implies an ideal crystal in which the structural units, termed as unit cells, are repeated regularly and indefinitely in three dimensions in space. The unit cell, containing at least one molecule, has a definite orientation and shape defined by the translational vectors, a, b and c. The unit cell therefore has a definite volume, V that contains the atoms and molecules necessary for generating the crystal. Every crystal can be classified as a member of one of the seven possible crystal systems or crystal classes that are defined by the relationships between the individual dimensions, a, b and c of the unit cell and between the individual angles, ⁣$\alpha,\beta$ and $\gamma$ of the unit cell. The structure of the given crystal may be assigned to one of the $7$ crystal systems, to one of the $14$ Bravais lattices, and to one of the 230 space groups. These uniquely define the possible ways of arranging atoms in a three-dimensional solid. Based on these observations, seven crystal systems were identified: triclinic, monoclinic, trigonal or rhombohedral, tetragonal, hexagonal, rhombic or orthorhombic and cubic.
The following questions are multiple choice questions. Choose the most appropriate answer:
  1. The crystal system of a compound with unit cell dimensions, $a = 0.38$7nm, $b = 0.387$nm and $c = 0.504$nm $\alpha=\beta=90^\circ$ and $\gamma=120^\circ$ is.
  1. Cubic
  2. Hexagonal
  3. Orthorhombic
  4. Rhombohedral.
  1. The unit cell with the structure given below represents________________crystal system.
  1. Cubic
  2. Orthorhombic
  3. tetragonal
  4. trigonal
  1. In a triclinic crystal.
  1. $\text{a}=\text{b}=\text{c},\ \alpha=\beta=\gamma\neq90^\circ$
  2. $\text{a}\neq\text{b}=\text{c},\ \alpha=\beta=\gamma=90^\circ$
  3. $\text{a}\neq\text{b}\neq\text{c},\ \alpha\neq\beta\neq\gamma\neq90^\circ$
  4. $\text{a}\neq\text{b}\neq\text{c},\ \alpha=\gamma=90^\circ\beta\neq90^\circ$
  1. The unit cell with dimensions $\alpha=\beta=\gamma=90^\circ,\ \text{a}=\text{b}\neq\text{c}$ is.
  1. Cubic
  2. Triclinic
  3. Hexagonal
  4. Tetragonal.
  1. An example of orthorhombic crystal system is.
  1. $SnO_2$
  2. $KN0_3$
  3. $ZnO$
  4. $K_2Cr_2O_7$
Answer
  1. (b) Hexagonal
Explanation:

For hexagonal crystal system $\text{a}=\text{b}\neq\text{c}$ and $ \alpha=\beta=90^\circ,\gamma=120^\circ$
  1. (a) Cubic
Explanation:

Here, $\text{a}=\text{b}=\text{c},\ \alpha=\beta=\gamma=90^\circ$ It belongs to cubic system.
  1. (c) $\text{a}\neq\text{b}\neq\text{c},\ \alpha\neq\beta\neq\gamma\neq90^\circ$
  2. (d) Tetragonal.
Explanation:

For tetragonal crystal system, $\text{a}=\text{b}\neq\text{c}$ and $\alpha=\beta=\gamma=90^\circ$
  1. (b) $KN0_3$
Explanation:

$KNO_3$ has orthorhombic crystal structure.
View full question & answer→
Generate Paper FreeAll The Solid State topics
