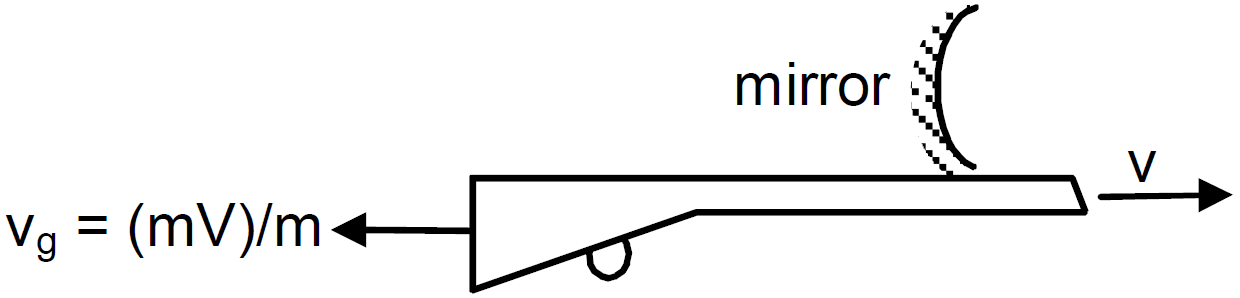

A gun of mass M fires a bullet of mass m with a horizontal speed V. The gun is fitted with a concave mirror of focal length f facing tpwards the receding bullet. Find the speed of separation of the bullet and the image just after the gun was fired.
Download our app for free and get started
Recoil velocity of gun $=\text{V}_{\text{g}}=\frac{\text{mV}}{\text{M}}$
At any time ‘t’, position of the bullet w.r.t. mirror $=\text{V}_{\text{t}}=\frac{\text{mV}}{\text{M}}{\text{t}}=\Big(1+\frac{\text{m}}{\text{M}}\Big)\text{Vt}$
For the mirror, $=\text{u}=-\Big(1+\frac{\text{m}}{\text{M}}\Big)\text{Vt}=\text{kVt}$
v = position of the image
From lens formula,
$\frac{1}{\text{v}}=\frac{1}{\text{f}}-\frac{1}{\text{u}}\Rightarrow\frac{1}{\text{v}}=\frac{1}{-\text{f}}+\frac{1}{\text{kVt}}=\frac{1}{\text{kVt}}-\frac{1}{\text{f}}=\frac{\text{f}-\text{kVt}}{\text{kVtf}}$
Let $\Big(1+\frac{\text{m}}{\text{M}}=\text{k}\Big),$
So, $\text{v}=\frac{\text{kVtf}}{-\text{kVt}+\text{f}}=\Big(\frac{\text{kVtf}}{\text{f}-\text{kVt}}\Big)$
So, velocity of the image with respect to mirror will be,
$\text{v}_1=\frac{\text{dv}}{\text{dt}}=\frac{\text{v}}{\text{dt}}\Big[\frac{\text{kVtf}}{\text{f}-\text{kVt}}\Big]=\frac{(\text{f}-\text{kVt})\text{kVf}-\text{kVtf}(-\text{kV})}{(\text{f}-\text{kVt})^2}=\frac{\text{kVt}^2}{(\text{f}-\text{kVt})^2}$
Since, the mirror itself is moving at a speed of $\text{m}\frac{\text{V}}{\text{M}}$ and the object is moving at ‘V’, the velocity of separation between the image and object at any time ‘t’ will be,
$\text{v}_{\text{s}}=\text{V}+\frac{\text{mV}}{\text{M}}+\frac{\text{kVf}^2}{(\text{f}-\text{kVt})^2}$
When, t = 0 (just after the gun is fired),
$\text{v}_{\text{s}}=\text{V}+\frac{\text{mV}}{\text{M}}+\text{kV}=\text{V}+\frac{\text{m}}{\text{M}}\text{V}+\Big(1+\frac{\text{m}}{\text{M}}\Big)\text{V}=2\Big(1+\frac{\text{m}}{\text{M}}\Big)\text{V}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View Solution
- Draw a labelled ray diagram to show the formation of image in an astronomical telescope for a distant object.
- Write three distinct advantages of a reflecting type telescope over a refracting type telescope.
- A convex lens of focal length 10 cm is placed coaxially 5 cm away from a concave lens of focal length 10 cm. If an object is placed 30 cm in front of the convex lens, find the position of the final image formed by the combined system.
- 2View SolutionThe mixture a pure liquid and a solution in a long vertical column (i.e, horizontal dimensions < < vertical dimensions) produces diffusion of solute particles and hence a refractive index gradient along the vertical dimension. A ray of light entering the column at right angles to the vertical is deviated from its original path. Find the deviation in travelling a horizontal distance d < < h, the height of the column.

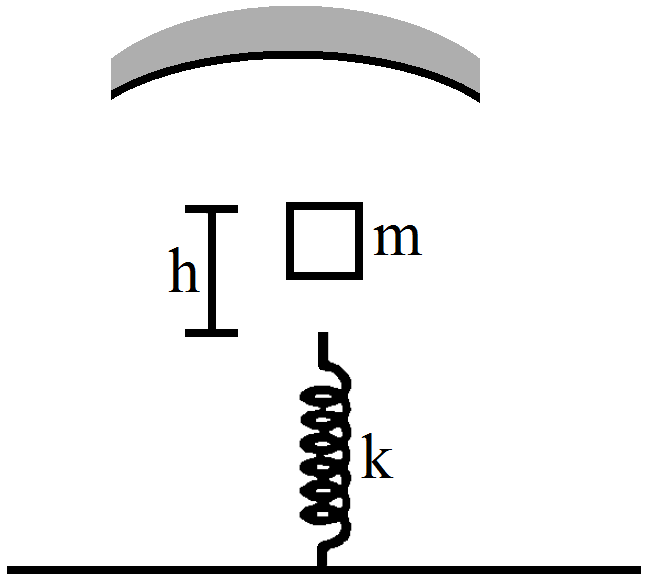

- 3View SolutionA mass m = 50g is dropped on a vertical spring of spring constant 500N/m from a height h = 10cm as shown in figure. The mass sticks to the spring and executes simple harmonic oscillations after that. A concave mirror of focal length 12cm facing the mass is fixed with its principal axis coinciding with the line of motion of the mass, its pole being at a distance of 30cm from the free end of the spring. Find the length in which the image of the mass oscillates.
- 4View Solution
- Draw the ray diagram showing refraction of light through a glass prism and hence obtain the relation between the refractive index $\mu$ of the prism, angle of prism and angle of minimum deviation.
- Determine the value of the angle of incidence for a ray of light travelling from a medium of refractive index $\mu_1=\sqrt{2}$ into the medium of refractive index $\mu_2=1$, so that it just grazes along the surface of separation.

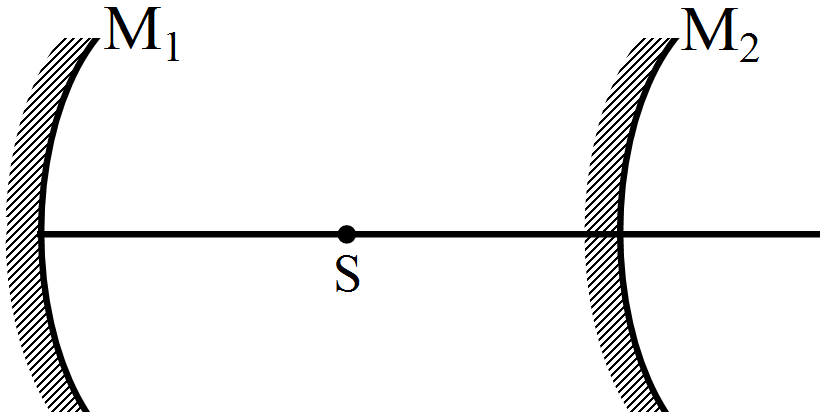

- 5A converging mirror $\mathrm{M}_1$, a point source S and a diverging mirror $\mathrm{M}_2$ are arranged as shown in figure. The source is placed at a distance of 30 cm from $\mathrm{M}_1$. The focal length of each of the mirrors is 20 cm . Consider only the images formed by a maximum of two reflections. It is found that one image is formed on the source itself.View Solution
- Find the distance between the two mirrors.
- Find the location of the image formed by the single reflection from $\mathrm{M}_2$.
- 6View SolutionA person with a normal near point (25 cm) using a compound microscope with objective of focal length 8.0 mm and an eyepiece of focal length 2.5 cm can bring an object placed at 9.0 mm from the objective in sharp focus. What is the separation between the two lenses? Calculate the magnifying power of the microscope.

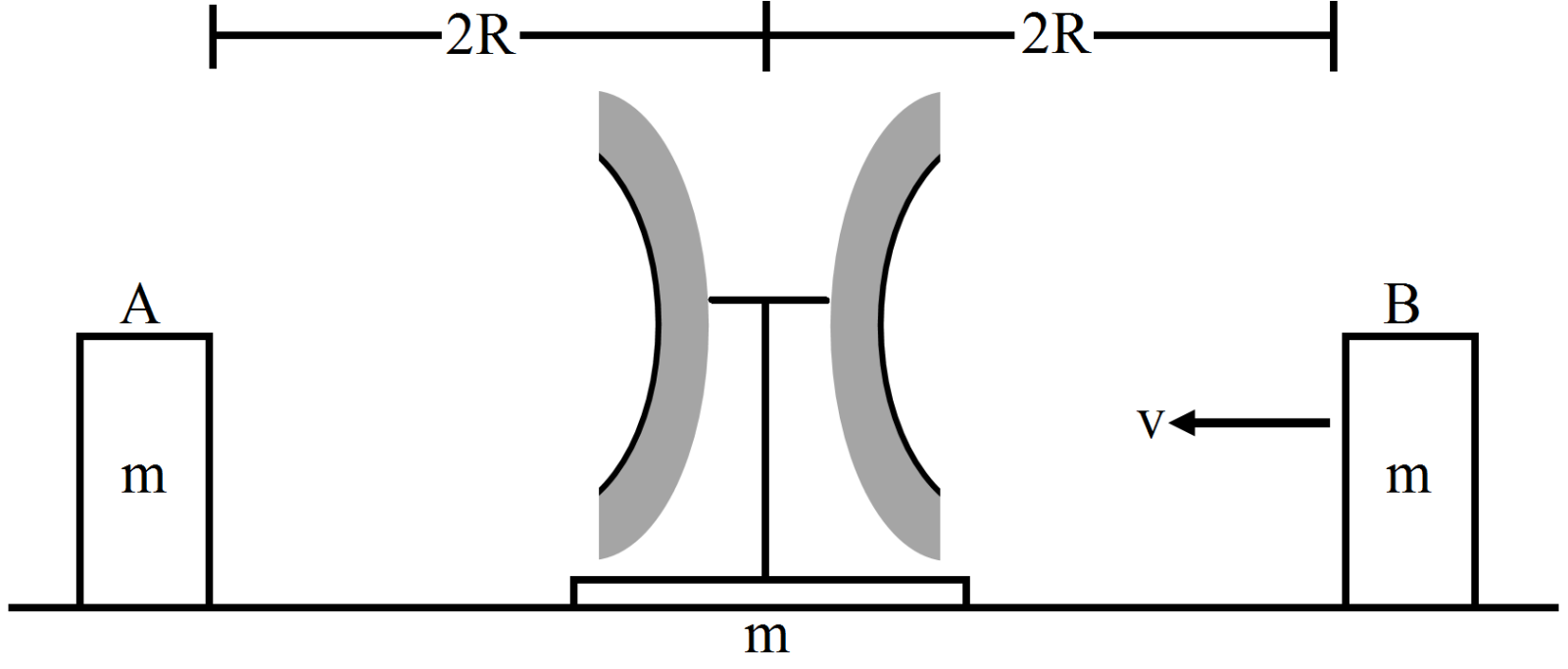

- 7Two concave mirrors of equal radii of curvature R are fixed on a stand facing opposite directions. The whole system has a mass m and is kept on a frictionless horizontal table.View Solution
