A non-uniform bar of weight W is suspended at rest by two strings of negligible weight as shown in. The angles made by the strings with the vertical are $36.9°$ and $53.1°$ respectively. The bar is $2m$ long. Calculate the distance d of the centre of gravity of the bar from its left end.
Download our app for free and get started

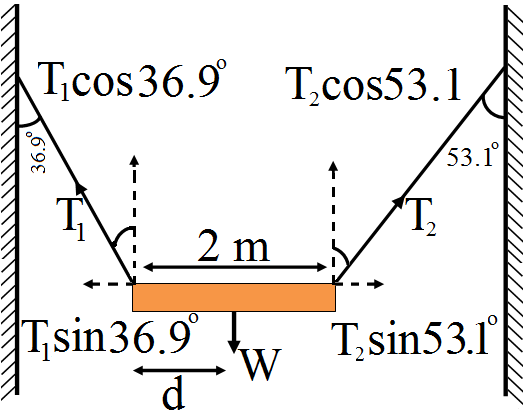

The free body diagram of the bar is shown in the following figure:
Length of the bar, $l = 2m T_1$ and $T_2$_ are the tensions produced in the left and right strings respectively. At translational equilibrium, we have, $\text{T}_1\sin36.9^{\circ}=\text{T}_2\sin53.1$
$\frac{\text{T}_1}{\text{T}_2}=\frac{\sin53.1^{\circ}}{\sin36.9}$
$=\frac{0.800}{0.600}=\frac{4}{3}$
$\text{T}_1=\frac{4}{3}\text{T}_2$ For rotational equilibrium, on taking the torque about the centre of gravity, we have, $\text{T}_1\cos36.9\times\text{d}=\text{T}_2\cos53.1(2-\text{d})$
$\text{T}_1\times0.800\text{d}=\text{T}_20.600(2-\text{d})$
$\frac{4}{3}\times\text{T}_2\times0.800\text{d}=\text{T}_2\big[0.600\times2-0.600\text{d}\big]$
$1.067\text{d}+0.6\text{d}=1.2$
$\therefore\ \text{d}=\frac{1.2}{1.67}$
$=0.72\text{m}$ Hence, the C.G. (centre of gravity) of the given bar lies 0.72m from its left end.
Length of the bar, $l = 2m T_1$ and $T_2$_ are the tensions produced in the left and right strings respectively. At translational equilibrium, we have, $\text{T}_1\sin36.9^{\circ}=\text{T}_2\sin53.1$
$\frac{\text{T}_1}{\text{T}_2}=\frac{\sin53.1^{\circ}}{\sin36.9}$
$=\frac{0.800}{0.600}=\frac{4}{3}$
$\text{T}_1=\frac{4}{3}\text{T}_2$ For rotational equilibrium, on taking the torque about the centre of gravity, we have, $\text{T}_1\cos36.9\times\text{d}=\text{T}_2\cos53.1(2-\text{d})$
$\text{T}_1\times0.800\text{d}=\text{T}_20.600(2-\text{d})$
$\frac{4}{3}\times\text{T}_2\times0.800\text{d}=\text{T}_2\big[0.600\times2-0.600\text{d}\big]$
$1.067\text{d}+0.6\text{d}=1.2$
$\therefore\ \text{d}=\frac{1.2}{1.67}$
$=0.72\text{m}$ Hence, the C.G. (centre of gravity) of the given bar lies 0.72m from its left end.
