At what angle should a ray of light be incident on the face of a prism of refracting angle 60° so that it just suffers total internal reflection at the other face? The refractive index of the material of the prism is 1.524.
Exercise
Download our app for free and get started

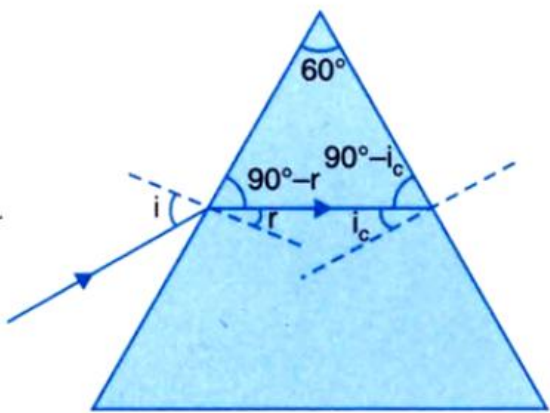

The refracted ray in the prism is incident on the second face at critical angle ic.
Given, angle of prism, A = 60°
Refracting index of the material = 1.524
Now,$ 60^\circ + 90^\circ - r + 90^\circ - i_c=_180^\circ$
and $\text{r}_1+\text{r}_2=\angle\text{A}$
$\Rightarrow \ \text{r}=60^\circ-\text{i}_\text{c}$
$\sin\text{i}_\text{c}=\frac{1}{\mu}=\frac{1}{1.524}$
$\Rightarrow \ \text{i}_\text{c}=\sin^{-1}\Big(\frac{1}{1.524}\Big)$
$\Rightarrow \ \text{i}_\text{c}\simeq41^\circ$
$\therefore \ \text{r}=60^\circ-41^\circ=19^\circ$
Using Snell's law,
$\sin\text{i}=\sin19^\circ\times1.524$
= 0.4962
$\text{i}=\sin^{-1}(0.4962)$
= 29.75°.
Given, angle of prism, A = 60°
Refracting index of the material = 1.524
Now,$ 60^\circ + 90^\circ - r + 90^\circ - i_c=_180^\circ$
and $\text{r}_1+\text{r}_2=\angle\text{A}$
$\Rightarrow \ \text{r}=60^\circ-\text{i}_\text{c}$
$\sin\text{i}_\text{c}=\frac{1}{\mu}=\frac{1}{1.524}$
$\Rightarrow \ \text{i}_\text{c}=\sin^{-1}\Big(\frac{1}{1.524}\Big)$
$\Rightarrow \ \text{i}_\text{c}\simeq41^\circ$
$\therefore \ \text{r}=60^\circ-41^\circ=19^\circ$
Using Snell's law,
$\sin\text{i}=\sin19^\circ\times1.524$
= 0.4962
$\text{i}=\sin^{-1}(0.4962)$
= 29.75°.
