Draw a ray diagram to show the path of the refracted ray in each of the following cases:
A ray of light incident on a concave lens is:
A ray of light incident on a concave lens is:
- Passing through its optical centre.
- Parallel to its principal axis.
- Directed towards its principal focus.
CBSE OUTSIDE DELHI - SET 2 2014
Download our app for free and get started
For a concave lens,

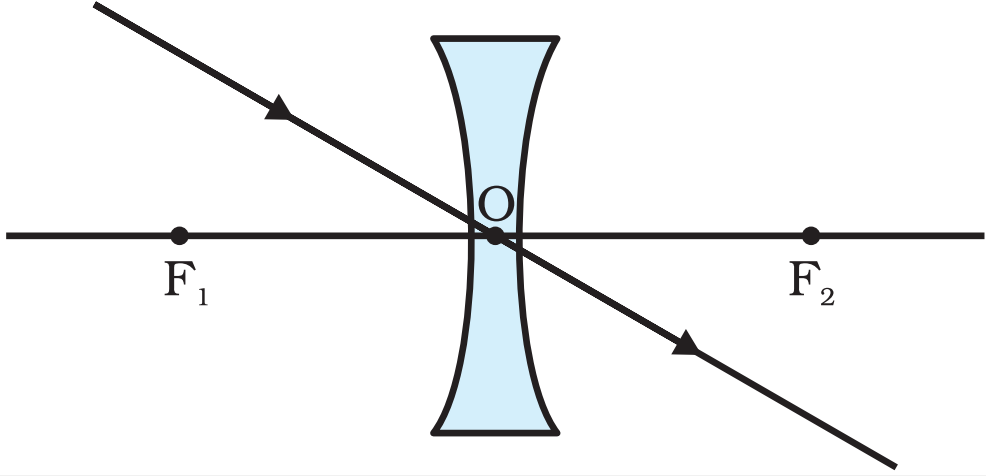

- The ray diagram for a ray of light passing through the optical centre of the concave lens will emerge without any deviation.

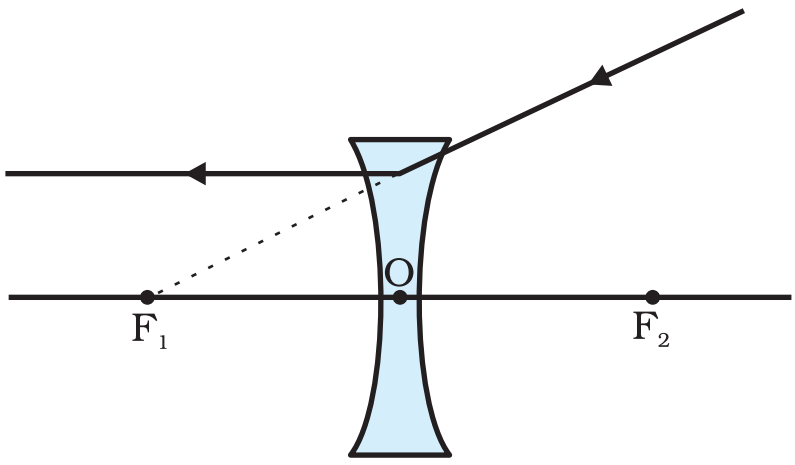

- For a ray of light directed towards the principal axis, after refraction from a concave lens, appears to diverge from the principal focus on the same side of the lens.
- For a ray of light directed towards its principal focus, goes parallel to its principal axis after refraction through the lens.
