n-identical cells, each of emf $\varepsilon,$ internal resistance r connected in series are charged by a dc source of emf $\varepsilon'$ using a resistance R.
- Draw the circuit arrangement.
- Deduce expressions for (a) the charging current and (b) the potential difference across the combination of cells.
Download our app for free and get started

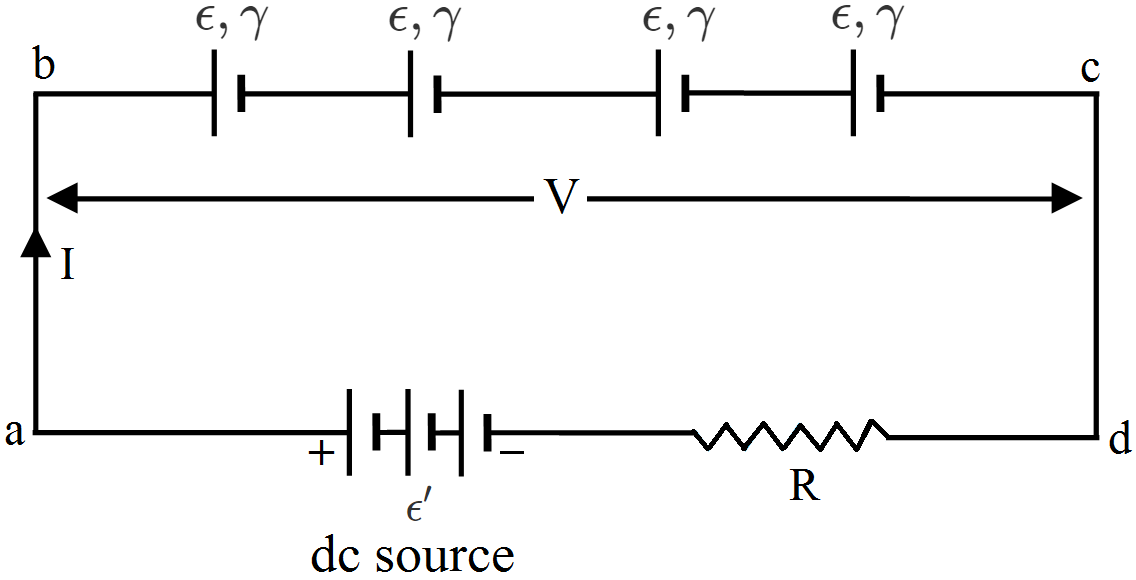

- The circuit arrangement is shown in figure.
Applying Kirchhoff’s second law to the circuit abcda
$-\text{n}\varepsilon-\text{I}(\text{nr)}-\text{IR}+\varepsilon' = 0$
$\Rightarrow\text{I}=\frac{\varepsilon'-\text{n}\epsilon}{\text{R}+\text{nr}}$
- Charging current, $\text{I}=\frac{\epsilon'-\text{n}\varepsilon}{\text{R}+\text{nr}}$
- Potentail difference across the combination V is given by
$\Rightarrow\text{V}=\varepsilon'-\text{IR}$
$\Rightarrow\text{V}=\varepsilon'=\frac{(\varepsilon'-\text{n}\varepsilon)}{\text{R}+\text{nr}}$
$\Rightarrow\text{V}=\frac{\varepsilon'(\text{R}+\text{nr)}-\varepsilon'+\text{n}\varepsilon}{\text{R}+\text{nr}}$
$\Rightarrow\text{V}=\frac{\varepsilon'(\text{R}+\text{nr}-1)+\text{n}\varepsilon}{\text{R}+\text{nr}}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionA heater coil is cut in two parts and only one of them is used in the heater. What is the ratio of the heat produced by this half coil to that by the original coil if the voltage applied is the same?
- 2Two heating elements of resistances $R_{1}$ and $R_{2}$ when operated at a constant supply of voltage, $V$, Consume power $P_1$ and $P_2$ respectively. Deduce the expressions for the power of their combination when they are, in turn, connected in $(i)$ series and $(ii)$ parallel across the same voltage supply.View Solution
- 3View SolutionWrite any two factors on which internal resistance of a cell depends. The reading on a high resistance voltmeter, when a cell is connected across it, is 2.2 V. When the terminals of the cell are also connected to a resistance of 5 Ω as shown in the circuit, the voltmeter reading drops to 1.8 V. Find the internal resistance of the cell.
- 4View SolutionA cell of emf E and internal resistance r is connected across an external resistance R. Plot a graph showing the variation of P.D. across R, verses R.

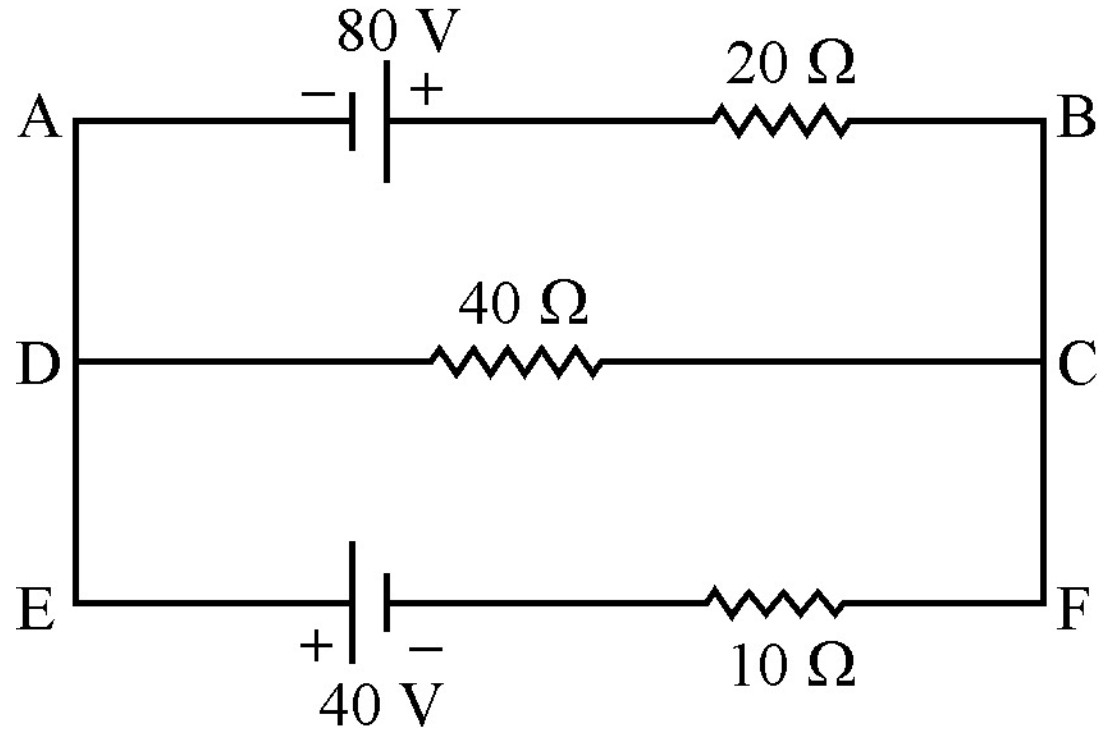

- 5Using Kirchhoff’s rules, calculate the current through the $40\Omega$ and $20\Omega$ resistors in the following circuit:View Solution

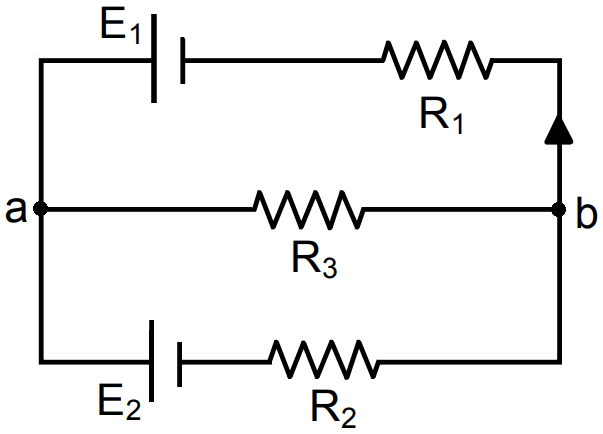

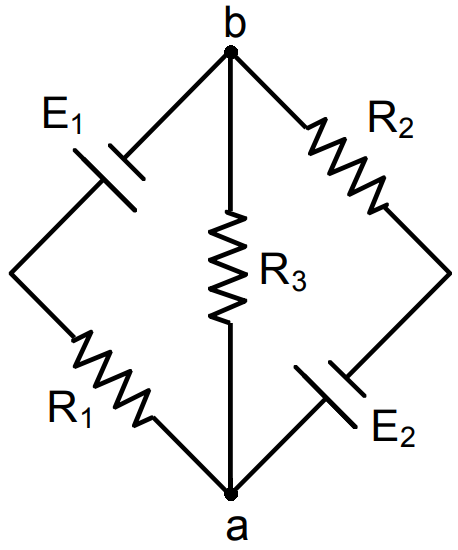

- 6Find the potential difference $V_a - V_b$ in the circuits shown in figure.View Solution
