A small bulb is placed at the bottom of a tank containing water to a depth of 80cm. What is the area of the surface of water through which light from the bulb can emerge out? Refractive index of water is 1.33. (Consider the bulb to be a point source).
Exercise
Download our app for free and get started
Actual depth of the bulb in water,$ d_1 = 80 cm = 0.8 m$
Refractive index of water, $µ = 1.33$

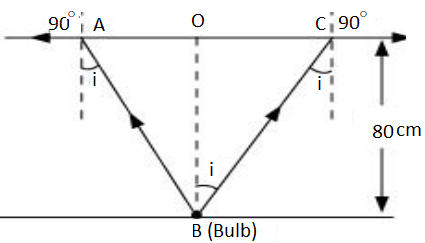

The given situation is shown in the following figure:
Where,
i = Angle of incidence
r = Angle of refraction = 90°
Since the bulb is a point source, the emergent light can be considered as a circle of radius,
$\text{R}=\frac{\text{AC}}{2}=\text{AO}=\text{OB}$
Using Snell' law, we can write the relation for the refractive index of water as:
$\mu=\frac{\sin\text{r}}{\sin\text{i}}$
$1.33=\frac{\sin90^\circ}{\sin\text{i}}$
$\therefore \ \text{i}=\sin^{-1}\Big(\frac{1}{1.33}\Big)=48.75^\circ$
Using the given figure, we have the relation:
$\tan\text{i}=\frac{\text{OC}}{\text{OB}}=\frac{\text{R}}{\text{d}_1}$
$\therefore \ \text{R}=\tan48.75^\circ\times0.8=0.91\text{m}$
$\therefore \ $Area of the surface of water $=\pi\text{R}^2=\pi(0.91)^2=2.61\text{m}^2$
Hence, the area of the surface of water through which the light from the bulb can emerge is approximately $2.61 m^2.$
