For a glass prism $(\mu=\sqrt{3})$ the angle of minimum deviation is equal to the angle of the prism. Find the angle of the prism.
Download our app for free and get started
We know that, $\mu=\frac{\sin\Big[\frac{(\text{A}+\text{D}_\text{m})}{2}\Big]}{\sin\Big(\frac{\text{A}}{2}\Big)}$
We are given that, the angle of minimum deviation is equal to the angle of the ptism i.e., $D_m = A$
Substituring $\mu=\sqrt{3}\text{ and D}_\text{m}=\text{A in }\mu=\frac{\sin\Big[\frac{(\text{A}+\text{D}_\text{m})}{2}\Big]}{\sin\Big(\frac{\text{A}}{2}\Big)}$, we get
$\sqrt{3}=\frac{\sin\text{A}}{\sin\frac{\text{A}}{2}}$
$\Rightarrow\ \sqrt{3}=\frac{2\sin\frac{\text{A}}{2}\cos\frac{\text{A}}{2}}{\sin\frac{\text{A}}{2}}\ \ \Big[\because\ \sin \text{A}=2\sin\frac{\text{A}}{2}\cos\frac{\text{A}}{2}\Big]$
$\Rightarrow\ \sqrt{3}=2\cos\frac{\text{A}}{2}$
$\Rightarrow\ \frac{\sqrt{3}}{2}=\cos\frac{\text{A}}{2}$
$\Rightarrow\ \frac{\text{A}}{2}=30^\circ$
$\Rightarrow\ \text{A}=60^\circ$
We are given that, the angle of minimum deviation is equal to the angle of the ptism i.e., $D_m = A$
Substituring $\mu=\sqrt{3}\text{ and D}_\text{m}=\text{A in }\mu=\frac{\sin\Big[\frac{(\text{A}+\text{D}_\text{m})}{2}\Big]}{\sin\Big(\frac{\text{A}}{2}\Big)}$, we get
$\sqrt{3}=\frac{\sin\text{A}}{\sin\frac{\text{A}}{2}}$
$\Rightarrow\ \sqrt{3}=\frac{2\sin\frac{\text{A}}{2}\cos\frac{\text{A}}{2}}{\sin\frac{\text{A}}{2}}\ \ \Big[\because\ \sin \text{A}=2\sin\frac{\text{A}}{2}\cos\frac{\text{A}}{2}\Big]$
$\Rightarrow\ \sqrt{3}=2\cos\frac{\text{A}}{2}$
$\Rightarrow\ \frac{\sqrt{3}}{2}=\cos\frac{\text{A}}{2}$
$\Rightarrow\ \frac{\text{A}}{2}=30^\circ$
$\Rightarrow\ \text{A}=60^\circ$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionA compound microscope has a magnifying power of 100 when the image is formed at infinity. The objective has a focal length of 0.5cm and the tube length is 6.5cm. Find the focal length of the eyepiece.
- 2View SolutionA lady uses +1.5D glasses to have normal vision from 25cm onwards. She uses a 20D lens as a simple microscope to see an object. Find the maximum magnifying power if she uses then microscope
- Together with her glass
- Without the glass. Do the answers suggest that an object can be more clearly seen through a microscope without using the correcting glasses?
- 3View SolutionLenses are constructed by a material of refractive index 1.50. The magnitude of the radii of curvature are 20cm and 30cm. Find the focal lengths of the possible lenses with the above specifications.

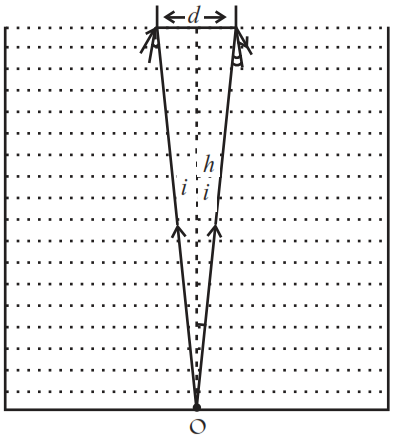

- 4View SolutionA jar of height h is filled with a transparent liquid of refractive index μ (Fig). At the centre of the jar on the bottom surface is a dot. Find the minimum diameter of a disc, such that when placed on the top surface symmetrically about the centre, the dot is invisible.
