Draw circuit symbols for:
- Fixed resistance.
- Variable resistance.
- A cell.
- A battery of three cells.
- An open switch.
- A closed switch.
Download our app for free and get started

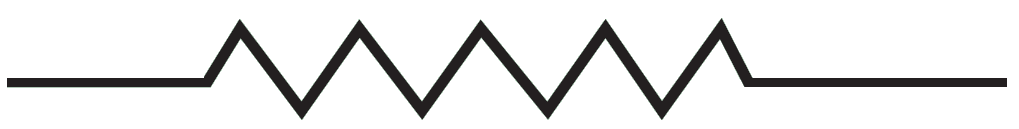

- Fixed resistance

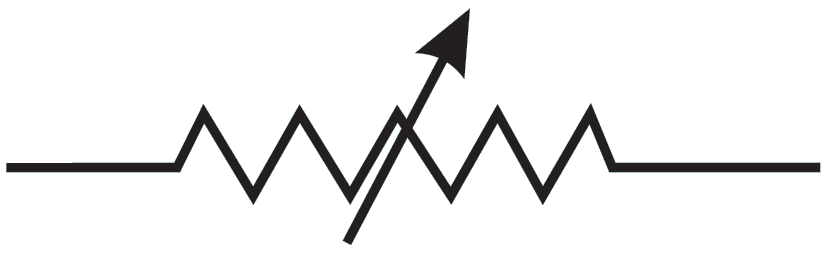

- Variable Resistance.
- Cell.

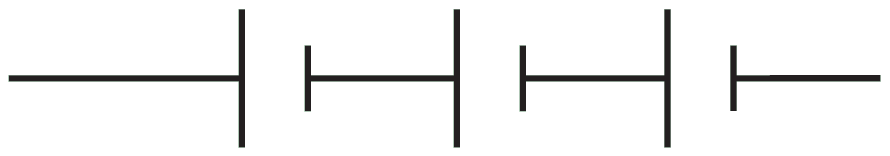

- Battery of three cells.

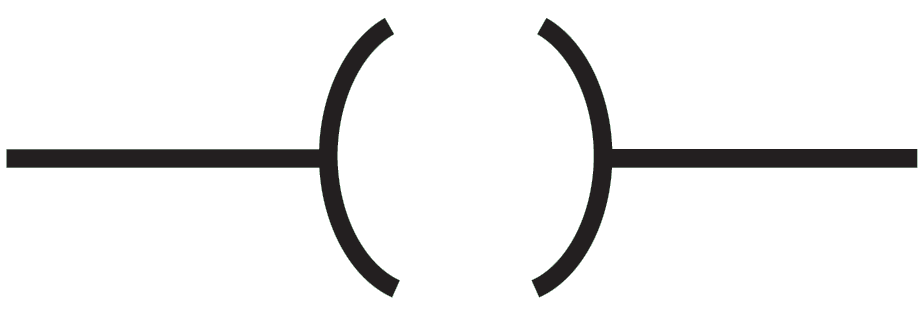

- Open Switch.

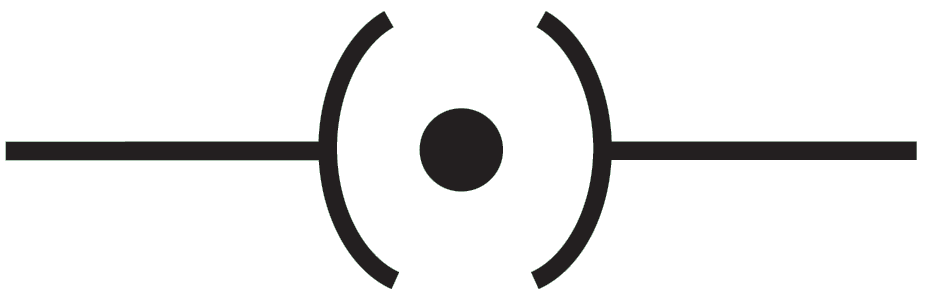

- Closed Switch.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionGive three reasons why different electrical appliances in a domestic circuit are connected in parallel.
- 2View SolutionShow how you would connect two 4 ohm resistors to produce a combined resistance of:
- 2 ohms.
- 8 ohms.
- 3If the charge on an electron is $1.6 \times 10$ coulombs, how many electrons should pass through a conductor in $1$ second to constitute $1$ ampere current?View Solution
- 4View SolutionDerive the expression for the heat produced due to a current ‘I’ flowing for a time interval ‘t’ through a resistor ‘R’ having a potential difference ‘V’ across its ends. With which name is this relation known?
- 5View SolutionCalculate the cost of operating a heater of 500W for 20hours at the rate of? ₹3.90 per unit.
- 6View SolutionAn electric bulb is rated as 10W, 220V. How many of these bulbs can be connected in parallel across the two wires of 220V supply line if the maximum current which can be drawn is 5A?
- 7View SolutionA resistor has a resistance of 176 ohms. How many of these resistors should be connected in parallel so that their combination draws a current of 5 amperes from a 220 volt supply line?
- 8A resistance of $40$ ohms and one of $60$ ohms are arranged in series across $220$ volt supply. Find the heat in joules produced by this combination of resistances in half a minute.View Solution

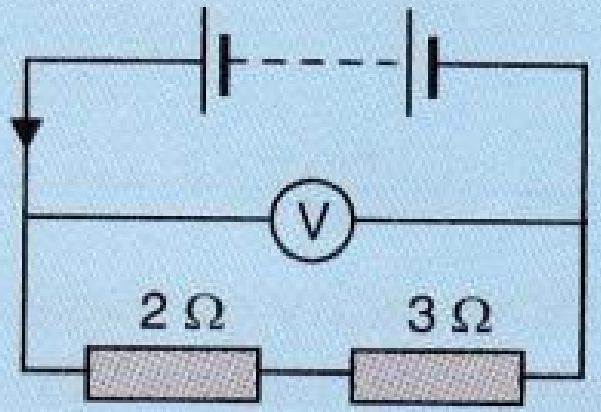

- 9In the circuit shown below, the voltmeter reads $10V.$View Solution
- What is the combined resistance?
- What current flows?
- What is the p.d. across $ 2 Ω$ resistor?
- What is the p.d. across $3 Ω$ resistor?
- 10View SolutionIn 10s, a charge of 25C leaves a battery, and 200j of energy are delivered to an outside circuit as a result.
- What is the p.d. across the battery?
- What current flows from the battery?
