What is a voltmeter? How is a voltmeter connected in the circuit to measure the potential difference between two points. Explain with the help of a diagram.
Download our app for free and get started

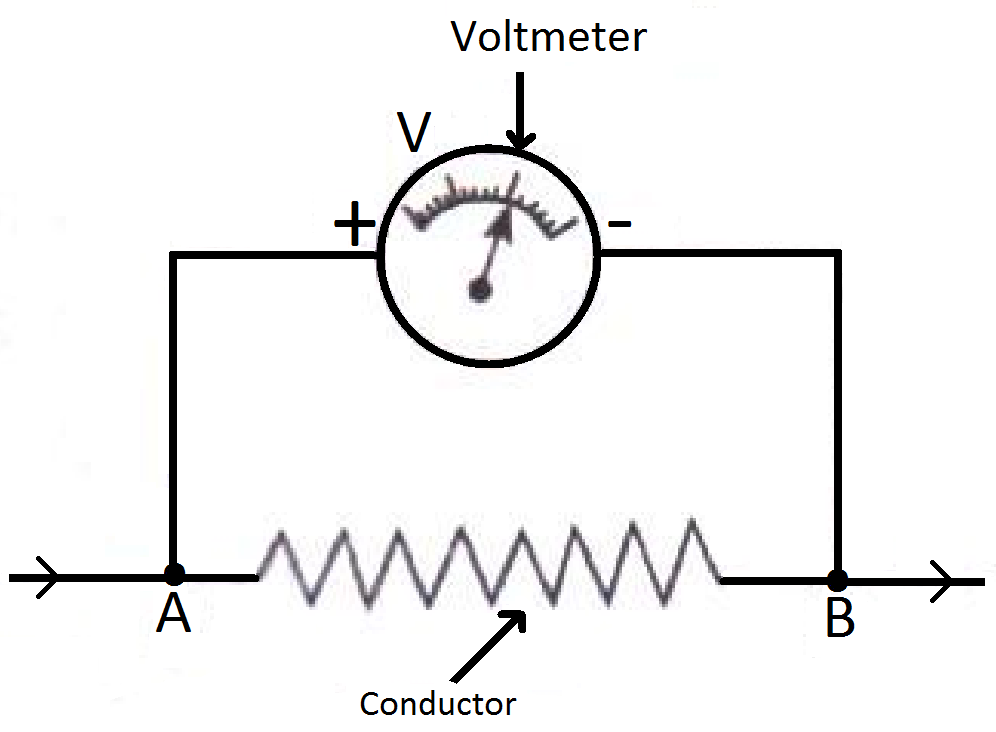

A voltmeter is a device which is used to measure the potential difference between two points in an electric circuit. Voltmeter is always connected in parallel across the two points where the potential difference is to be measured.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionThree 2V cells are connected in series and used as a battery in a circuit.
- What is the p.d. at the terminals of the battery?
- How many joules of electrical energy does 1C gain on passing through
- One cell.
- All three cells?
- 2View SolutionIn 10s, a charge of 25C leaves a battery, and 200j of energy are delivered to an outside circuit as a result.
- What is the p.d. across the battery?
- What current flows from the battery?
- 3View SolutionWhich uses more energy: a 250W TV set in 1 hour or a 1200W to aster in 10 minutes?
- 4In which of the following cases more electrical energy is consumed per hour?View Solution
- A current of $1$ ampere passed through a resistance of $300$ ohms.
- A current of $2$ amperes passed through a resistance of $100$ ohms.
- 5View SolutionAn electric bulb is rated as 10W, 220V. How many of these bulbs can be connected in parallel across the two wires of 220V supply line if the maximum current which can be drawn is 5A?
- 6View SolutionGive three reasons why different electrical appliances in a domestic circuit are connected in parallel.
- 7A flash of lightning carries $10\ C$ of charge which flows for $0.01\ s$. What is the current? If the voltage is $10MV$, what is the energy?View Solution
- 8For the circuit shown in the diagram below:View Solution
What is the value of :
Current through $6 Ω$ resistor?
Potential difference across $12 Ω$ resistor? - 9View SolutionConsider the circuit given below where A, B and C are three identical light bulbs of constant resistance.
- List the bulbs in order of increasing brightness.
- If C burns out, what will be the brightness of A now compared with before?
- If B burns out instead, what will be the brightness of A and C compared with before?
- 10What possible values of resultant resistance one can get by combining two resistances, one of value $2$ ohm and the other $6$ ohm?View Solution
