Show how you would connect two 4 ohm resistors to produce a combined resistance of:
- 2 ohms.
- 8 ohms.
Download our app for free and get started
By connecting in parallel: Since equivalent resistance will be
$\frac{1}{\text{R}}=\frac{1}{4}+\frac{1}{4}=\frac{2}{4}=\frac{1}{2}$
Therefore. R = 2 ohm
By connecting in series: since equilaent resistance will be R = 4 ohm + 4 ohm = 8 ohm.
$\frac{1}{\text{R}}=\frac{1}{4}+\frac{1}{4}=\frac{2}{4}=\frac{1}{2}$
Therefore. R = 2 ohm
By connecting in series: since equilaent resistance will be R = 4 ohm + 4 ohm = 8 ohm.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionA resistor of 8 ohms is connected in parallel with another resistor X. The resultant resistance of the combination is 4.8 ohms. What is the value of the resistor X?
- 2View SolutionCalculate the cost of operating a heater of 500W for 20hours at the rate of? ₹3.90 per unit.

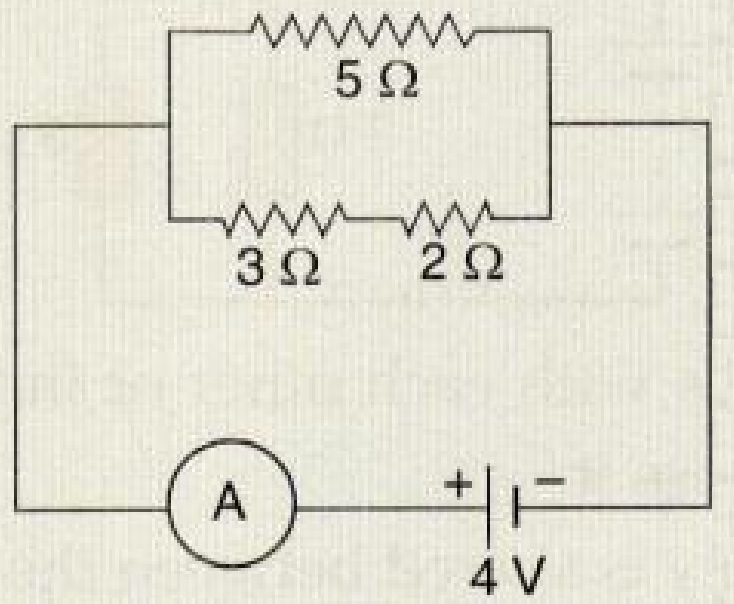

- 3With the help of a circuit diagram, obtain the relation for the equivalent resistance of two resistances connected in parallel. In the circuit diagram shown below, find:View Solution
