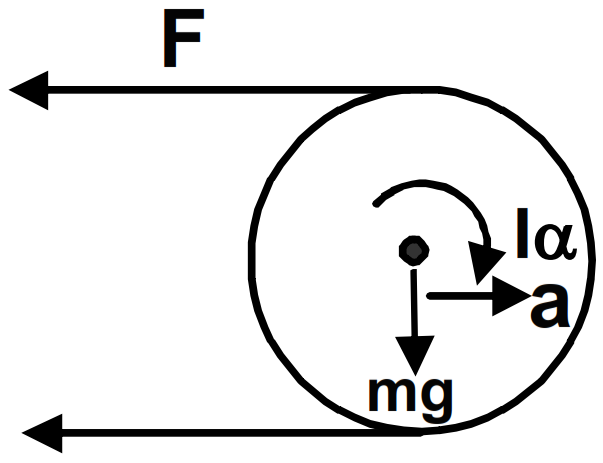

A solid sphere of mass 0.50kg is kept on a horizontal surface. The coefficient of static friction between the surfaces in contact is $\frac{2}{7}.$ What maximum force can be applied at the highest point in the horizontal direction so that the sphere does not slip on the surface?
Download our app for free and get started
If we take moment about the centre, then
$\text{F}\times\text{R}=\ell\alpha\times\text{f}\times\text{R}$
$\Rightarrow\text{F}=\frac{2}{5}\text{mR}\alpha+\mu\text{mg}\ \dots(1)$
Again, $\text{F}=\text{ma}_{\text{c}}-\mu\text{mg}\ \dots(2)$
$\Rightarrow\text{a}_\text{c}=\frac{\text{F}+\mu\text{mg}}{\text{m}}$
Putting the value $a_c$ in eq(1) we get
$\Rightarrow\frac{2}{5}\times\text{m}\times\Big(\frac{\text{F}+\mu\text{mg}}{\text{m}}\Big)+\mu\text{mg}$
$\Rightarrow\frac{2}{5}(\text{F}+\mu\text{mg})+\mu\text{mg}$
$\Rightarrow\text{F}=\frac{2}{5}\text{F}+\frac{2}{5}\times0.5\times10+\frac{2}{7}\times0.5\times10$
$\Rightarrow\frac{\text{3F}}{5}=\frac{4}{7}+\frac{10}{7}=2$
$\Rightarrow\text{F}=\frac{5\times2}{3}=\frac{10}{3}=3.33\text{N}$
