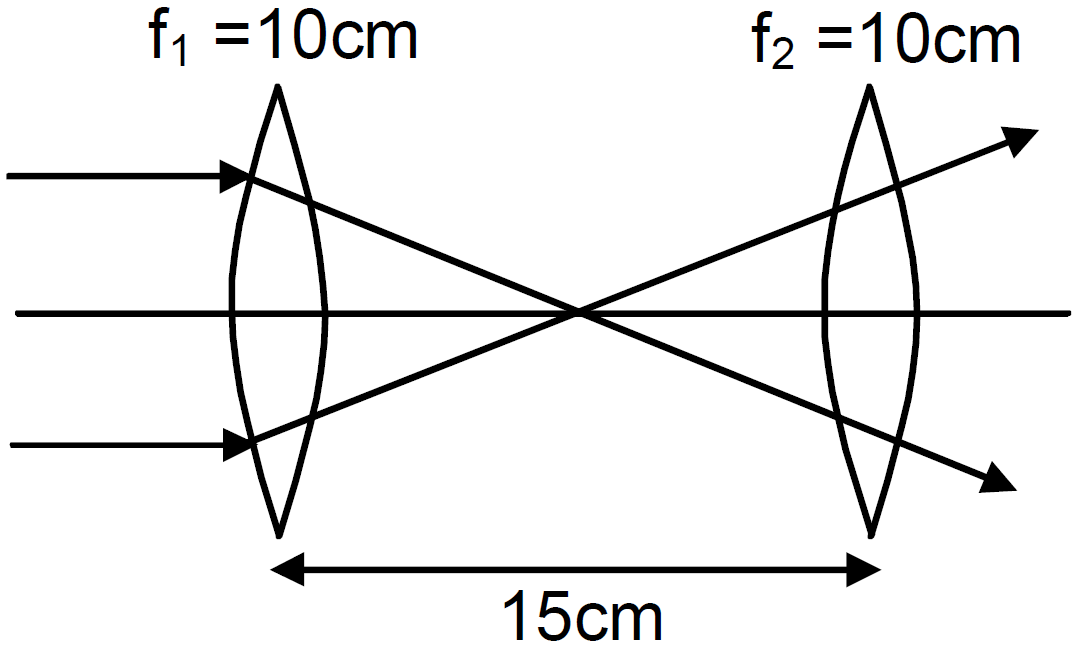

Two convex lenses, each of focal length 10cm, are placed at a separation of 15cm with their principal axes coinciding,
  1. Show that a light beam coming parallel to the principal axis diverges as it comes out of the lens system.
  2. Find the location of the virtual image formed by the lens system of an object placed far away.
  3. Find the focal length of the equivalent lens.
(Note that the sign of the focal length is positive although the lens system actually diverges a parallel beam incident on it).
Download our app for free and get startedPlay store
  1. The beam will diverge after coming out of the two convex lens system because, the image formed by the first lens lies within the focal length of the second lens.
  2. For $1^{st}$ convex lens, $\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}}=\frac{1}{10} \ (\text{since, u}=-\infty)$
or, $\text{v}=10\text{cm}$
for $2^{nd}$ convex lens, $\frac{1}{\text{v}'}=\frac{1}{\text{f}}+\frac{1}{\text{u}}$
or, $\frac{1}{\text{v}'}=\frac{1}{10}+\frac{1}{-(15-10)}=\frac{-1}{10}$
or, $\text{v}'=-10\text{cm}$
So, the virtual image will be at 5cm from $1^{st}$ convex lens.
  1. If, F be the focal length of equivalent lens,
Then, $\frac{1}{\text{F}}=\frac{1}{\text{f}_1}+\frac{1}{\text{f}_2}-\frac{\text{d}}{\text{f}_1\text{f}_2}\Rightarrow\frac{1}{10}+\frac{1}{10}-\frac{15}{100}=\frac{1}{20}$
$\Rightarrow\text{F}=20\text{cm}.$
