The door of an almirah is 6ft high, 1.5ft wide and weighs 8kg. The door is supported by two hinges situated at a distance of 1ft from the ends. If the magnitudes of the forces exerted by the hinges on the door are equal, find this magnitude.
Download our app for free and get started

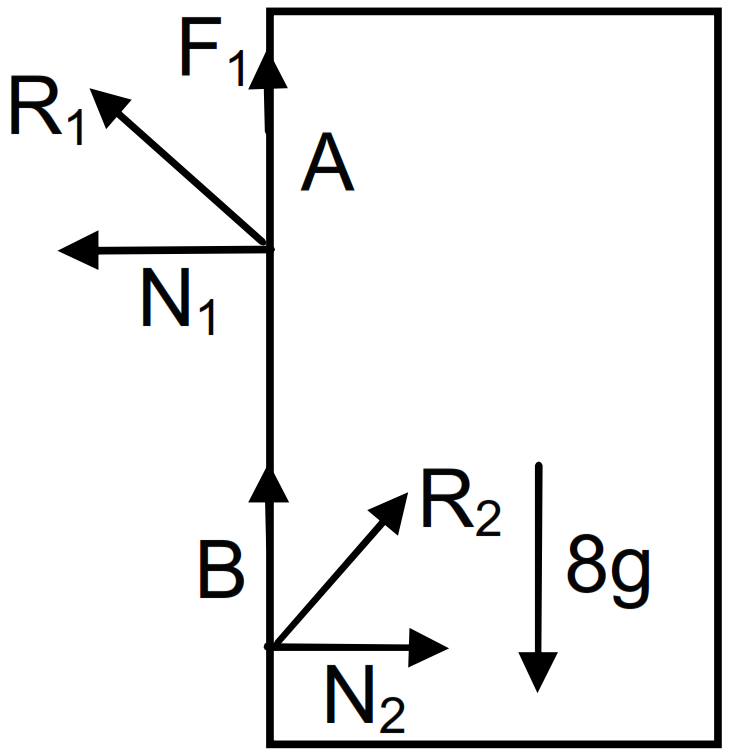

According to the question
$8 g=F_1+F_2 ; N_1=N_2$
Since, $R_1=R_2$
Therefore $\mathrm{F}_1=\mathrm{F}_2$
$\Rightarrow 2 \mathrm{~F}_1=8 \mathrm{~g}$
$\Rightarrow \mathrm{~F}_1=40$
Let us take torque about the point B , we will get $\mathrm{N}_1 \times 4=8 \mathrm{~g} \times 0.75$.
$\Rightarrow\text{N}_1=\frac{(80\times3)}{(4\times4)}=15\text{N}$
Therefore $\sqrt{\Big(\text{F}_1^2+\text{N}_1^2\Big)}=\text{R}_1$
$\sqrt{40^2+15^2}=42.72=43\text{N.}$
