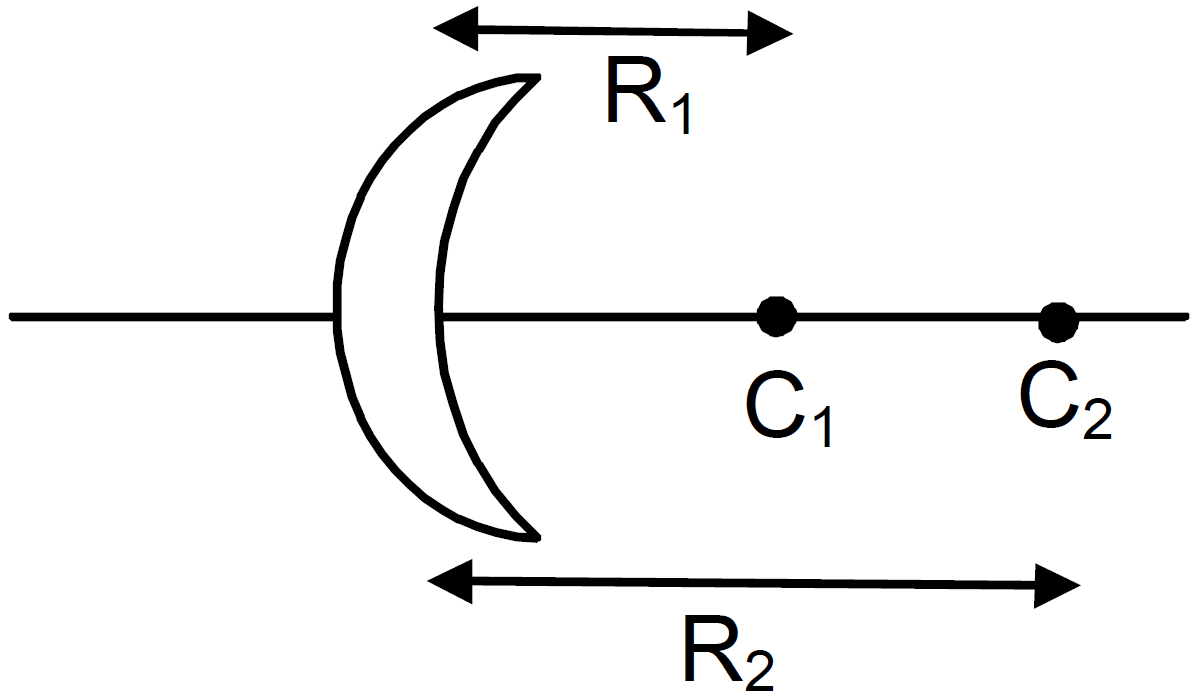

The radii of curvature of a lens are +20cm and +30cm. The material of the lens has a refracting index 1.6. Find the focal length of the lens.
  1. If it is placed in air.
  2. If it is placed in water $(\mu=1.33).$
Download our app for free and get startedPlay store

$\text{R}_1=+20\text{cm}; \ \text{R}_2=+30\text{cm}; \ \mu=1.6$
  1. If placed in air:
$\frac{1}{\text{f}}=(\mu_{\text{g}}-1)\Big(\frac{1}{\text{R}_1}-\frac{1}{\text{R}_2}\Big)=\Big(\frac{1.6}{1}-1\Big)\Big(\frac{1}{20}-\frac{1}{30}\Big)$

$\Rightarrow\text{f}=\frac{60}{6}=100\text{cm}$
  1. If placed in water:
$\frac{1}{\text{f}}=(\mu_{\text{w}}-1)\Big(\frac{1}{\text{R}_1}-\frac{1}{\text{R}_2}\Big)$

$\Rightarrow \Big(\frac{1.6}{1.33}-1\Big)\Big(\frac{1}{20}-\frac{1}{30}\Big)$

$\Rightarrow \Big(\frac{1.60}{1.33}-1\Big)\Big[\frac{1}{6}\Big]$

$=\frac{28}{133\times60}\simeq\frac{1}{300}$

$\Rightarrow\text{f}=300\text{cm}$
art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Download App

Similar Questions

  • 1
    Three immiscible liquids of densities $d_1 > d_2 > d_3$ and refractive indices $\mu _1 > \mu _2 > \mu _3$ are put in a beaker. The height of each liquid column is $\frac{\text{h}}{3}$. A dot is made at the bottom of the beaker. For near normal vision, find the apparent depth of the dot.
    View Solution
  • 2
    1. An object is placed in front of a concave mirror. It is observed that a virtual image is formed. Draw the ray diagram to show the image formation and hence derive the mirror equation $\frac{1}{\text{f}}=\frac{1}{\text{u}}+\frac{1}{\text{v}}.$
    2. An object is placed 30cm in front of a plano-convex lens with its spherical surface of radius of curvature 20cm. If the refractive index of the material of the lens is 1.5, find the position and nature of the image formed.
    View Solution
  • 3
    The separation between the objective and the eyepiece of a compound microscope can be adjusted between 9.8cm to 11.8cm. If the focal lengths of the objective and the eyepiece are 1.0cm and 6cm respectively, find the range of the magnifying power if the image is always needed at 24cm from the eye.
    View Solution
  • 4
    Lenses are constructed by a material of refractive index 1.50. The magnitude of the radii of curvature are 20cm and 30cm. Find the focal lengths of the possible lenses with the above specifications.
    View Solution
  • 5
    An object 1.5 cm in size is placed on the side of the convex lens in the arrangement (a) above. The distance between the object and the convex lens is 40 cm. Determine the magnification produced by the two-lens system, and the size of the image.
    View Solution
  • 6
    Define magnifying power of a telescope. Write its expression.
    A small telescope has an objective lens of focal length 150 cm and an eye piece of focal length 5 cm. If this telescope is used to view a 100m high tower 3 km away, find the height of the final image when it is formed 25 cm away from the eye piece.
    View Solution
  • 7

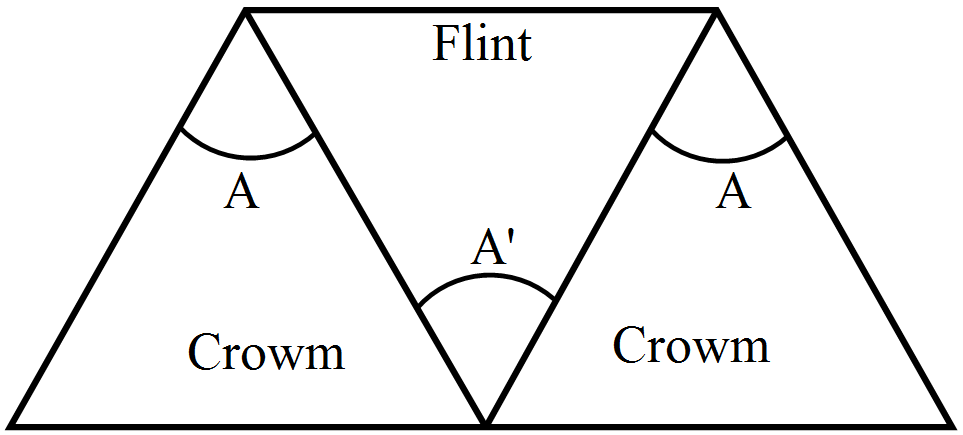

    Three thin prisms are combined as shown in figure. The refractive indices of the crown glass for red, yellow and violet rays are $\mu_\text{r},\mu_\text{y}$ and $\mu_\text{v}$ respectively and those for the flint glass are $\mu'_\text{r},\mu'_\text{y}$ and $\mu'_\text{v}$ respectively. Find the ratio $\frac{\text{A}'}{\text{A}}$ for which.
