The resistors $R_1 , R_2 , R_3$ and $R_4$ in the figure given below are all equal in value.
What would you expect the voltmeters $A, B$ and $C$ to read assuming that the connecting wires in the circuit have negligible resistance?
What would you expect the voltmeters $A, B$ and $C$ to read assuming that the connecting wires in the circuit have negligible resistance?
Download our app for free and get started
$R_{eq} = R + R + R + R = 4R$ ohm
Total current in the circuit, $\text{I}=\frac{\text{V}}{\text{R}}=\frac{12}{4\text{R}}=\frac{3}{\text{R}}$
Reading of voltmeter $A =$ Voltage across $\text{R}_1=\text{I}\times\text{R}_1=\frac{3}{\text{R}}\times\text{R}=3\text{V}$
Reading of voltmeter $B =$ Voltage across $\text{R}_2=\text{I}\times\text{R}_2=\frac{3}{\text{R}}\times\text{R}=3\text{V}$
Reading of voltmeter $C =$ Voltage across the series combination of $R_3$ and $R_4$ $=\text{I}\times(\text{R}_3+\text{R}_4)=\frac{3}{\text{R}}\times2\text{R}=6\text{V}$
Total current in the circuit, $\text{I}=\frac{\text{V}}{\text{R}}=\frac{12}{4\text{R}}=\frac{3}{\text{R}}$
Reading of voltmeter $A =$ Voltage across $\text{R}_1=\text{I}\times\text{R}_1=\frac{3}{\text{R}}\times\text{R}=3\text{V}$
Reading of voltmeter $B =$ Voltage across $\text{R}_2=\text{I}\times\text{R}_2=\frac{3}{\text{R}}\times\text{R}=3\text{V}$
Reading of voltmeter $C =$ Voltage across the series combination of $R_3$ and $R_4$ $=\text{I}\times(\text{R}_3+\text{R}_4)=\frac{3}{\text{R}}\times2\text{R}=6\text{V}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionDistinguish between good conductors, resistors and insulators. Name two good conductors, two resistors and two insulators.
- 2An electric iron is connected to the mains power supply of $220V$. When the electric iron is adjusted at ‘minimum heating’ it consumes a power of $360W$ but at ‘maximum heating’ it takes a power of $840W$. Calculate the current and resistance in each case.View Solution
- 3A resistance of $40$ ohms and one of $60$ ohms are arranged in series across $220$ volt supply. Find the heat in joules produced by this combination of resistances in half a minute.View Solution

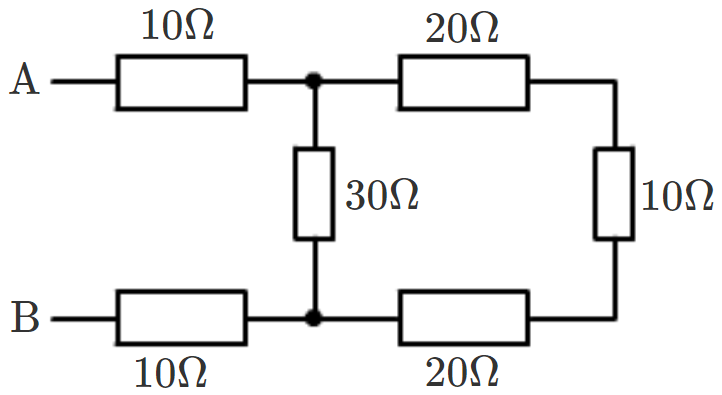

- 4View SolutionWhat is the resistance between A and B in the figure given below?
