Question 15 Marks

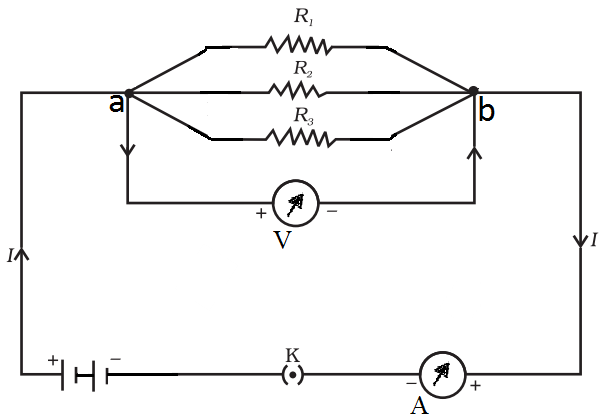

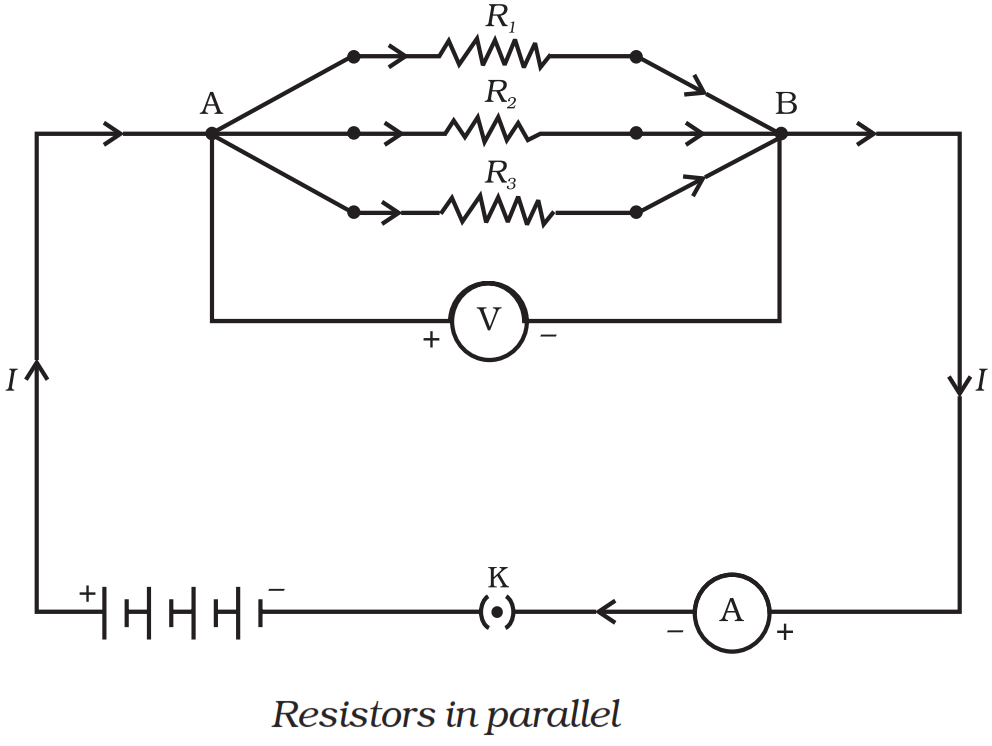

Explain with the help of a labelled circuit diagram how you will find the resistance of a combination of three resistors, of resistance $R_1, R_2$ and $R_3$, joined in parallel. Also mention how you will connect the ammeter and the voltmeter in the circuit when measuring the current in the circuit and the potential difference across one of the three resistors of the combination.

Answer

Let the resistance of the three resistors be $R_1, R_2$ and $R_3$, respectively. Let their combined resistance be $R$. Let the total current flowing in the circuit be I and the strength of the battery is V . Then from Ohm's law, we have:
$V=I R \ldots . . .(i)$
We know that when the resistors are connected in parallel, the potential drop across each resistance is the same. Therefore:
$I = I_1 + I_2 + I_3$
$\text{I}=\frac{\text{V}}{\text{R}_1}+\frac{\text{V}}{\text{R}_2}+\frac{\text{V}}{\text{R}_3}$
$\text{I}=\frac{\text{V}}{\Big(\frac{1}{\text{R}_1}+\frac{1}{\text{R}_2}+\frac{1}{\text{R}_3}\Big)}\ .....(\text{ii})$
From equations (1) and (2) we have:
$\frac{1}{\text{R}}=\frac{1}{\text{R}_1}+\frac{1}{\text{R}_2}+\frac{1}{\text{R}_3}$

Ammeter is connected in series with the resistor.
Voltmeter is connected in parallel with the resistor.

View full question & answer→

Question 25 Marks

Derive the expression for the heat produced due to a current ‘I’ flowing for a time interval ‘t’ through a resistor ‘R’ having a potential difference ‘V’ across its ends. With which name is the relation known? How much heat will an instrument of 12W produce in one minute if it is connected to a battery of 12V?

Answer

Work done in moving the charge W = VQ

Power input,

$\text{P} = \frac{VQ}{t}$

$= {VI}$

$\therefore \text{Eergy, E = P}\times t = \text{V I t}$

This energy gets dissipated in the form of heat.

$\therefore \text{H = V I t}$

Applying Ohm's law, we get,

$H = \text{I}^{2}Rt$

The relation is known as Joule's law of heating.
$\text{P = 12 W} {\text{ t = 1 minute = 60s}}$

$H = P \times t$

$\text{= 12 W} \times \text{60s}$

$\text{H = 720 J}$

View full question & answer→

Question 35 Marks

What is meant by saying that the potential difference between two points is 1 volt? Name a device that helps to measure the potential difference across a conductor.
Why does the connecting cord of an electric heater not glow hot while the heating element does?
Electrical resistivities of some substances at $20^{0}\text{C}$ are given below:

Silver	$1.60\times10^{-8} \Omega \text{ m}$
Copper	$1.62\times10^{-8} \Omega \text{ m}$
Tungsten	$5.20\times10^{-8} \Omega \text{ m}$
Iron	$10.0\times10^{-8} \Omega \text{ m}$
Mercury	$94.0\times10^{-8} \Omega \text{ m}$
Nichrome	$100\times10^{-6} \Omega \text{ m}$

Answer the following questions in relation to them:

Among silver and copper, which one is a better conductor? Why?
Which material would you advise to be used in electrical heating devices? Why?

Answer

When 1 joule of work is done to move a charge of 1 coulomb from one point to another.

Device - Voltmeter.

The heating element of the heater is made up of alloy which has very high resistance so when current flows through the heating element, it becomes too hot and glows red. But the resistance of cord which is usually of copper or aluminum is very law so it does not glow.

Silver is the best conductor of electricity and heat among all metals as it has more number of free electrons in the outermost shell. Its resistivity $\left(1.60 \times 10^{-8} \Omega m\right)$ is less than copper $\left(1.62 \times 10^{-8} \Omega m\right)$. Of couse, silver is the best conductor of electricity. Still, we find use of copper on a large scale in domestic wiring because silver is quite expensive.
Nichrome is the best material for heating elements. It is because the resistivity of the nichrome is more than the resistivities of the metals used to make it and it does not oxidise at higher temperature.

View full question & answer→

Question 45 Marks

Name an instrument that measures electric current in a circuit. Define the unit of electric current.
What do the following symbols mean in circuit diagrams?

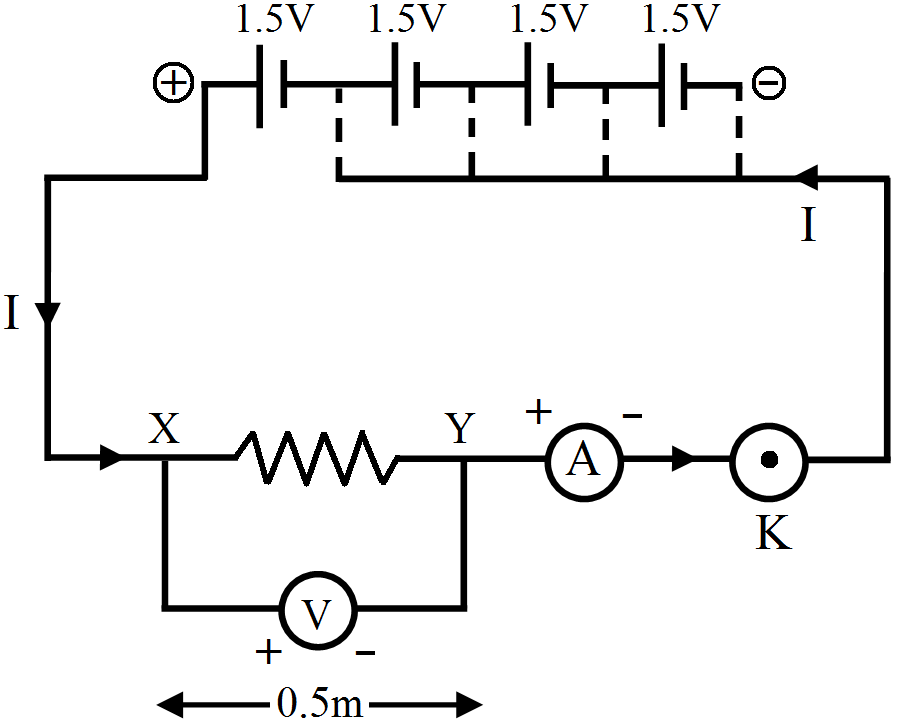

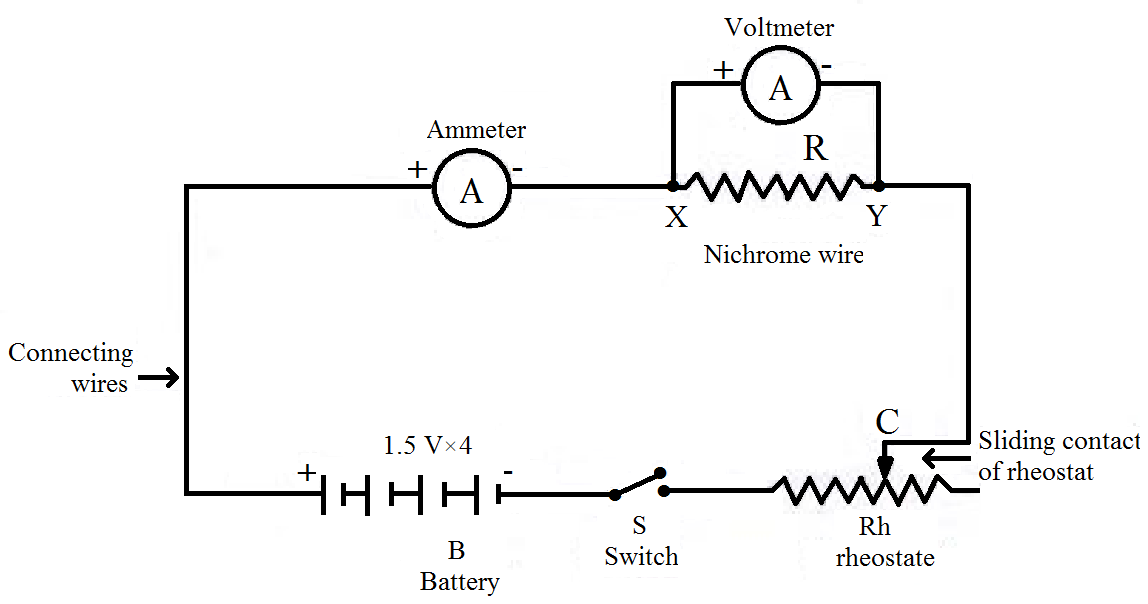

An electric circuit consisting of a 0.5 m long nichrome wire XY, an ammeter, a voltmeter, four cells of 1.5 V each and a plug key was set up.

Draw a diagram of this electric circuit to study the relation between the potential difference maintained between the points ‘X’ and ‘Y’ and the electric current flowing through XY.

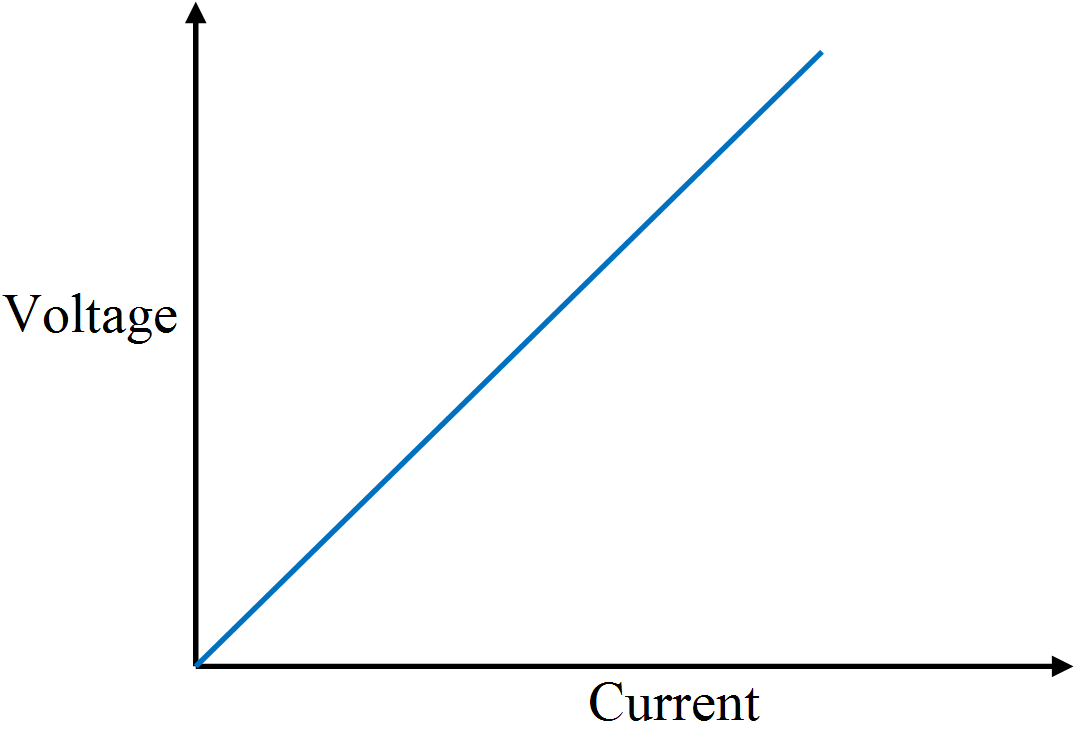

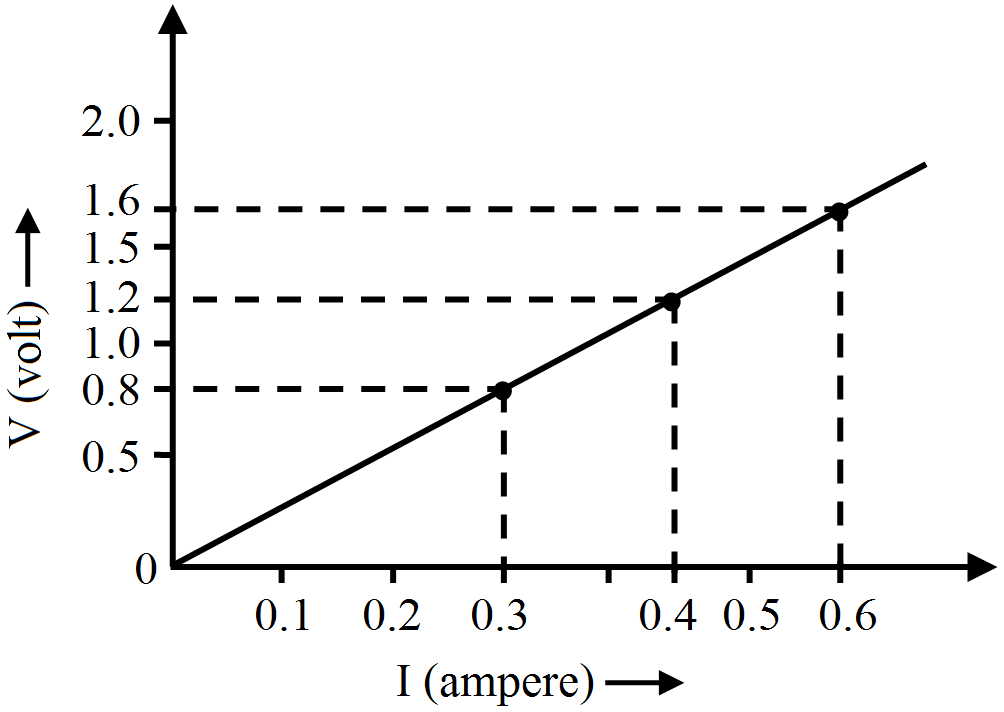

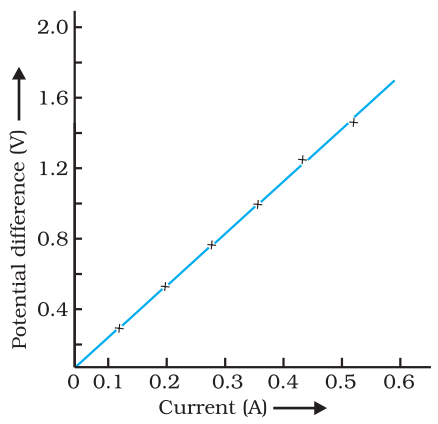

Following graph was plotted between V and I values:

What would be the values $\frac{\text{V}}{\text{I}}$of ratios when the potential difference is 0.8 V, 1.2 V and 1.6 V respectively? What conclusion do you draw from these values?

Answer

Ammeter.

Unit is ampere: when 1 coulomb of charge flows through a conductor in 1 second then 1 ampere of current is said to flow through it.

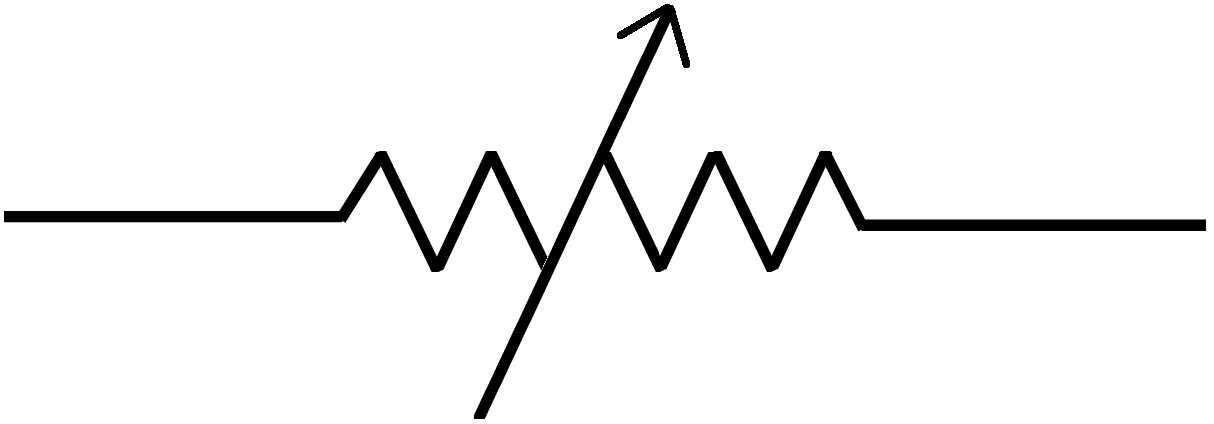

Variable resistance/ Rheostat.
Plug key (closed).

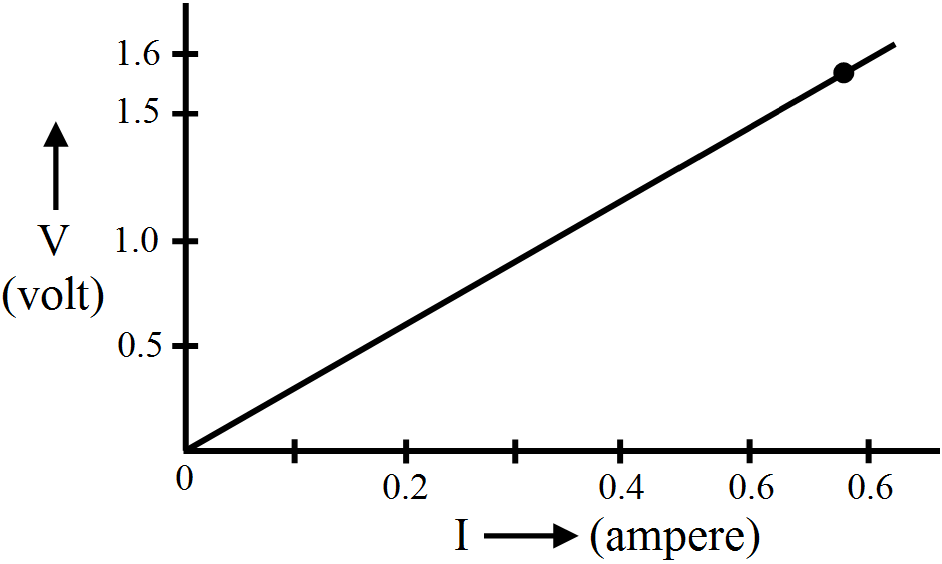

Following graph was plotted between V and l values.

At potential difference 0.8V,
$\frac{\text{V}}{\text{I}}=\frac{0.8}{0.3}=\frac{8}{3}\ .....(1)$
At potential difference 1.2 V,
$\frac{\text{V}}{\text{I}}=\frac{1.6}{0.45}=\frac{8}{3}\ .....(2)$
At potential difference 1.6 v,
$\frac{\text{V}}{\text{I}}=\frac{1.6}{0.6}=\frac{8}{3}\ .....(3)$
Conclusion: If i be the current through XY resistor and V be the potential difference across.
It, then the radio $\frac{\text{V}}{\text{I}}=\text{constant}.$
$\Rightarrow\text{V}\propto\text{I and Ohm's}$
Law is obeyed.

View full question & answer→

Question 55 Marks

What is scattering of light? Explain how the colour of the scattered light depends on the size of the scattering particles.
Explain the reddish appearance of the Sun at sunrise or sunset. Why does it not appear red at noon?

Answer

Scattering: Direction of ray of light changes when it collides with particles of comparable size.

Fine particle scatter shorter wavelengths like blue light.
Particles of larger size scatter longer wavelengths like red light.
If particle size is large enough scattered light may appear white.

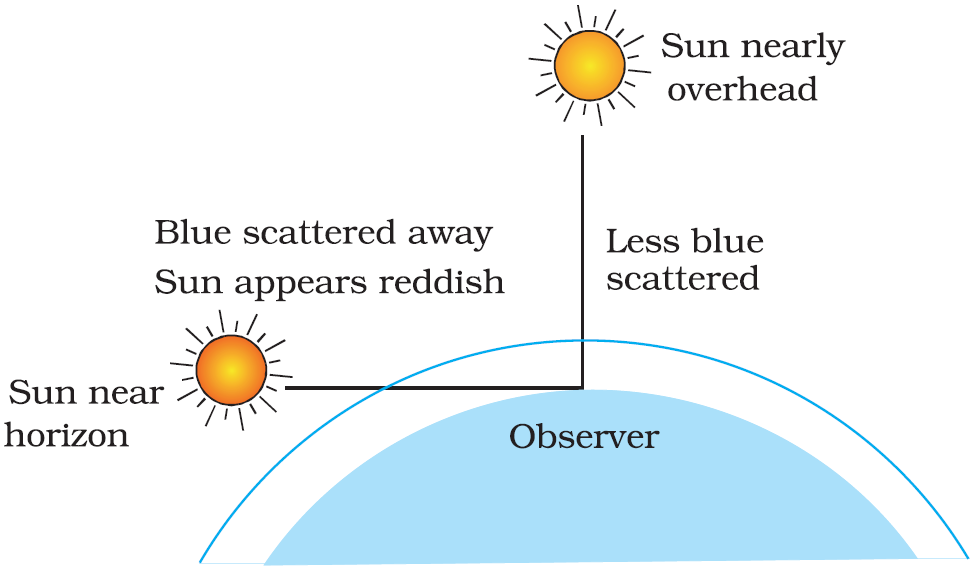

During sunrise and sunset, sun is near horizon. Sunlight travels longer distance. Most of blue light scatters away by particles. Light of longer wavelength reaches our eye so sun appears reddish.
At noon, sun is directly overhead so sunlight travels lesser distance. Less amount of blue light is scattered giving white appearance to sun.

View full question & answer→

Question 65 Marks

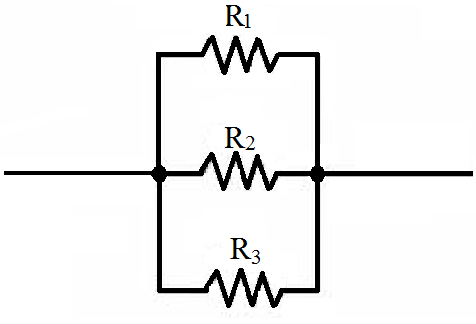

With the help of a suitable circuit diagram prove that the reciprocal of the equivalent resistance of a group of resistances joined in parallel is equal to the sum of the reciprocals of the individual resistances.
In an electric circuit, two resistors of $12\Omega$ each are joined in parallel to a 6V battery. Find the current drawn from the battery.

Answer

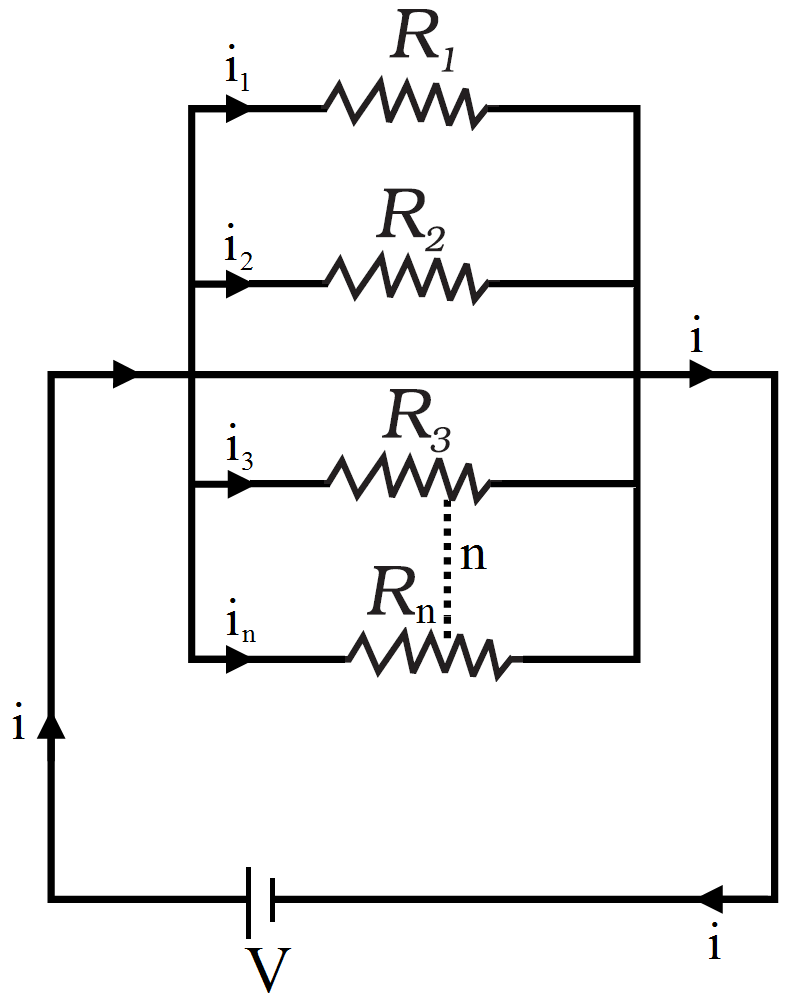

Let there are $n$ resistances, each of value $R_1, R_2 \ldots \ldots R_n$, respectively, are connected in parallel to a battery of voltage $V$. if the equivalent resistance of the circuit is $R_{\text {eq }}$, then current drawn from $i=\frac{V}{R(e q)}$ the battery is:
The total current i then divides into $i _1, i _2, i _3 \ldots \ldots, i _n$, respectively in the given resistors.

As all the resistances are connected in parallel, hence the voltage across each resistor is V volt.

Now we can write,

$\text{i}=\text{i}_1+\text{i}_2+\text{i}_3+\ ...\ +\text{i}_\text{eq}$

$\frac{\text{V}}{\text{R(eq)}}=\frac{\text{V}}{\text{R}_1}+\frac{\text{V}}{\text{R}_2}+\frac{\text{V}}{\text{R}_3}+\ ...\ +\frac{\text{V}}{\text{R}_\text{n}}\dots(1)$

From equation 1,

$\frac{1}{\text{R(eq)}}=\frac{1}{\text{R}_1}+\frac{1}{\text{R}_2}+\frac{1}{\text{R}_3}+\ ...\ +\frac{1}{\text{R}_\text{n}}$

Hence, reciprocal of the equivalent resistance is equal to the sum of reciprocal of each resistor joined in parallel.

Let net resistance of the given parallel combination be Rnet, Then,

$\frac{1}{\text{R}_\text{net}}=\frac{1}{12}+\frac{1}{12}$

$\frac{1}{\text{R}_\text{net}}=\frac{2}{12}=\frac{1}{6}$

$\Rightarrow\ \text{R}_\text{net}=6\Omega$

Hence, current, $\text{i}=\frac{\text{V}}{\text{R}_\text{net}}=\frac{6\text{V}}{6\Omega}=1\text{A}$

View full question & answer→

Question 75 Marks

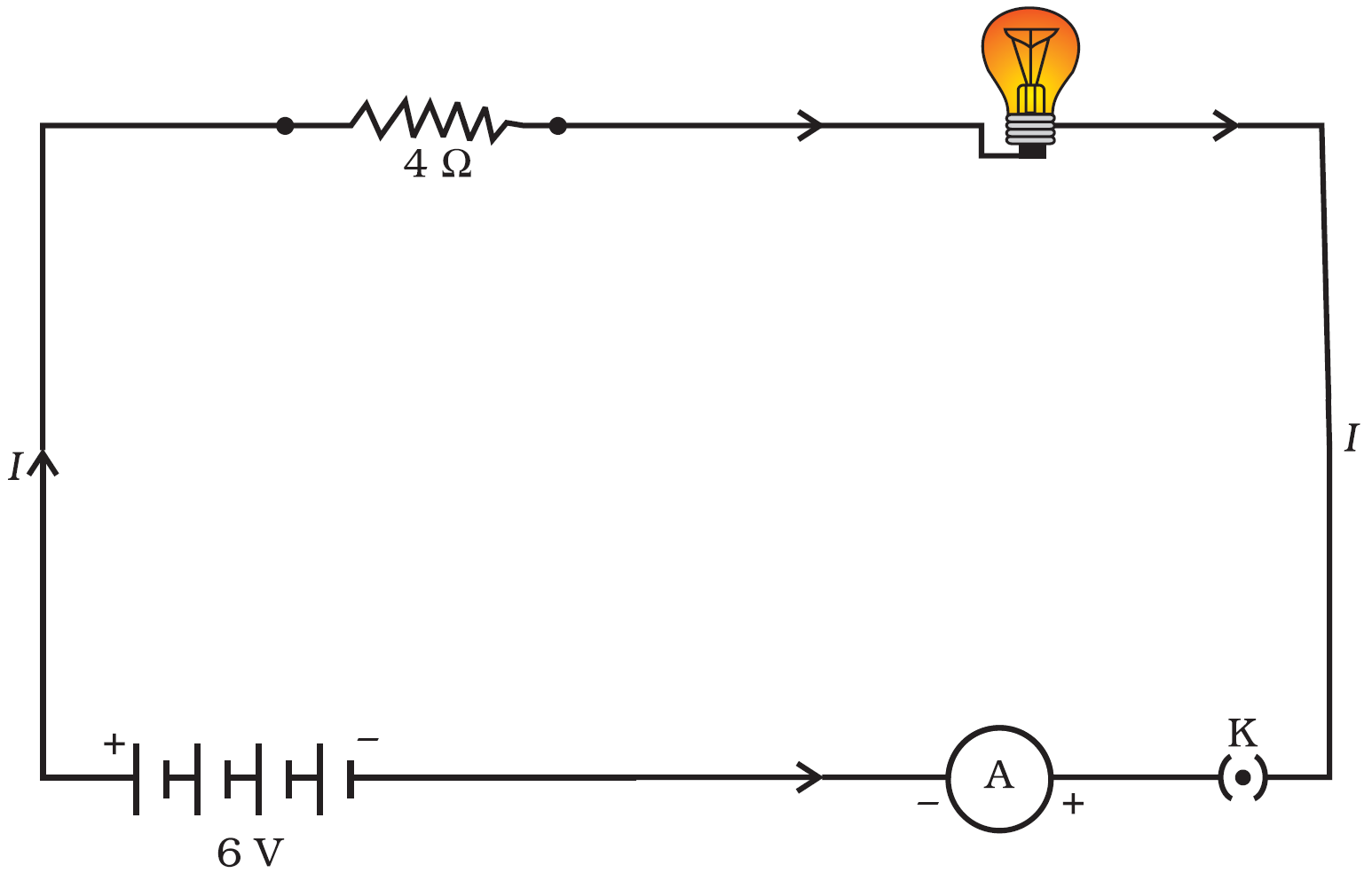

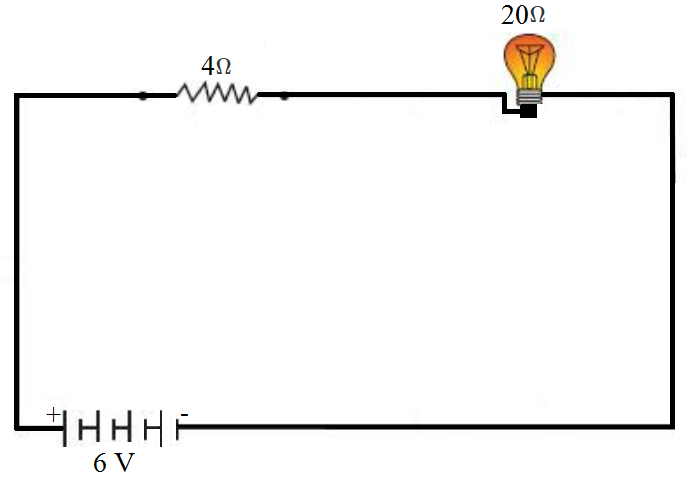

An electric lamp of resistance $20\Omega$ and a conductor of resistance $4\Omega$ are connected to a 6V battery as shown in the circuit. Calculate:

The total resistance of the circuit,
The current through the circuit,
The potential difference across the (i) electric lamp and (ii) conductor, and
Power of the lamp.

Answer

Resistance of electric lamp $=20\Omega$
Resistance of Conductor $=4\Omega$
Voltage of Battery = 6V

The total resistance of the circuit $=20\Omega+4\Omega=24\Omega$
Current in the circuit = I

Applying Ohm's law in the circuit,

$\text{V}=\text{IR}$

$6\text{V}=\text{I}\times24\Omega$

$\text{I}=\frac{6\text{V}}{24\Omega}=0.25\text{A}$

Hence current in the circuit is 0.25 Ampere.

Potential difference across lamp,

$\text{V}_\text{lamp}=\text{IR}$

$\text{V}_\text{lamp}=0.25\text{A}\times20\Omega=5\text{V}$

$\therefore\ \text{V}_\text{lamp}=5\text{V}$

Potential difference across conductor,

$\text{V}_\text{Conductor}=\text{IR}$

$\text{V}_\text{Conductor}=0.25\text{A}\times4\Omega=1\text{V}$

$\therefore\ \text{V}_\text{Conductor}=1\text{V}$

Power of Lamp $=\text{I}^2\text{R}=(0.25)^2\times20=1.25\text{W}$

View full question & answer→

Question 85 Marks

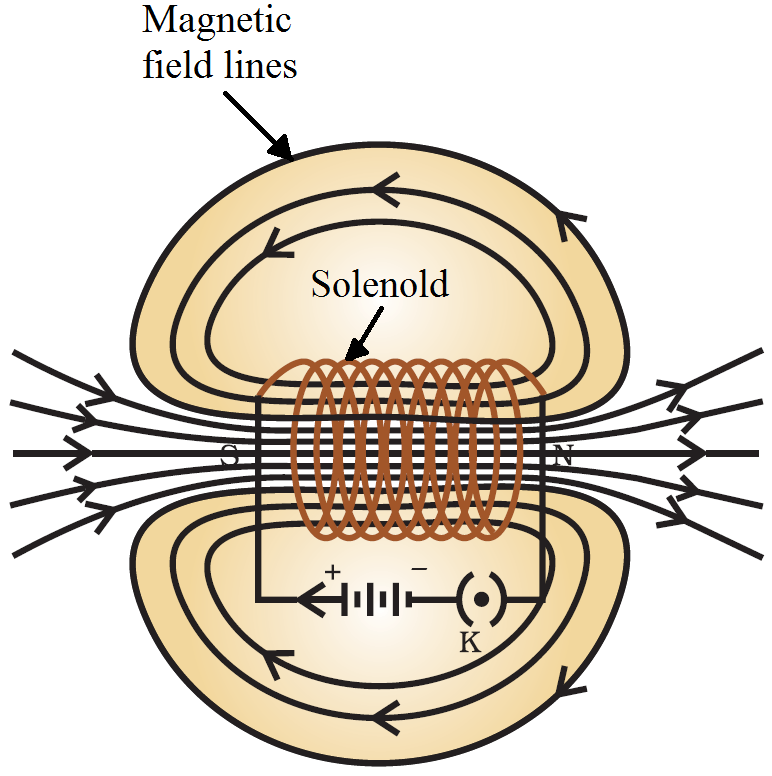

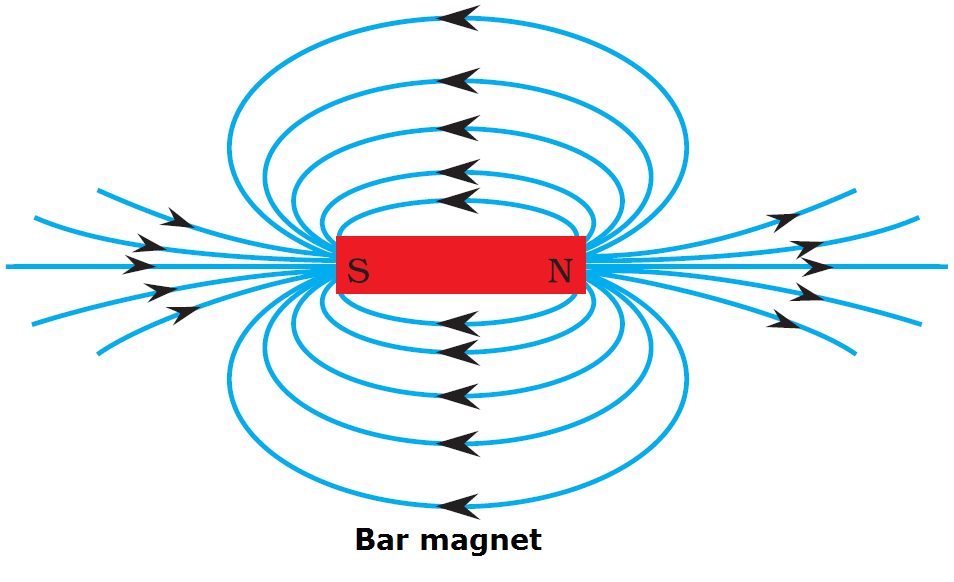

What is a solenoid? Draw the pattern of magnetic field lines of:

A current carrying solenoid.
A bar magnet. List two distinguishing features between the two fields.

Answer

A solenoid is a long cylindrical coil of wire consisting of a large no. of turns bound together very tightly.

Two distinguishing features between the two fields:

Magnetic field of the solenoid can be varied as per our requirements just by changing the current or core of the solenoid whereas the magnetic field of the bar magnet is fixed.
Magnetic field outside the solenoid is negligible as compared to the bar magnet.

View full question & answer→

Question 95 Marks

A 5V battery is connected to two $20 Ω$ resistors which are joined together in series.

Draw a circuit diagram to represent this. Add an arrow to indicate the direction of conventional current flow in the circuit.
What is the effective resistance of the two resistors?
Calculate the current that flows from the battery.
What is the p.d. across each resistor?

Answer

Effective resistance = 20 + 20 = 40 ohms.
Current flowing through the circuit $=\text{I}=\frac{\text{V}}{\text{R}}=\frac{5}{40}=0.125\ \text{amps}.$
p.d. across each resistance = I × R = 0.125 × 20 = 2.5V

View full question & answer→

Question 105 Marks

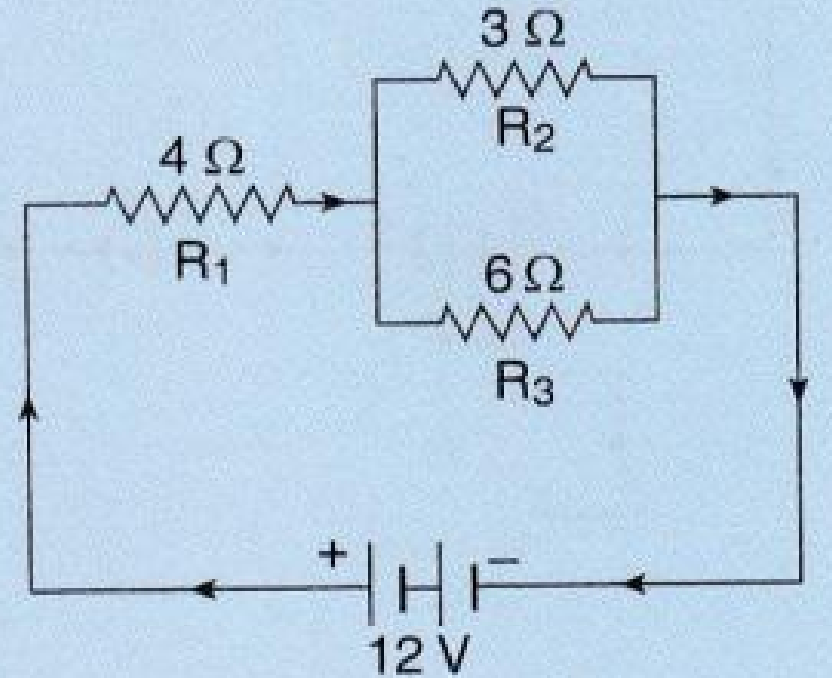

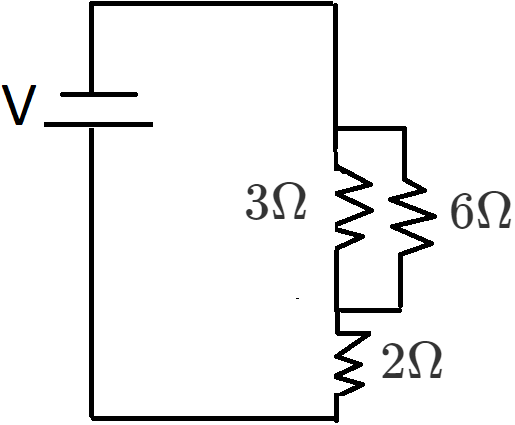

The circuit diagram given below shows the combination of three resistors $R_1 R_2$ and $R_3$ :

Find:

Total resistance of the circuit.
Total current flowing in the circuit.
The potential difference across R.

Answer

Total resistance of two resistors that are connected in parallel is:

$\frac{1}{\text{R}'}=\frac{1}{3}+\frac{1}{6}$

$\frac{1}{\text{R}'}=\frac{3}{6}$

R’ = 2ohms

Total resistance of the circuit = 2 + 4 ohms = 6 ohms

Total current flowing through the circuit $=\frac{\text{V}}{\text{Total resistance}}$

$\text{I}=\frac{12}{6}=2\ \text{amps}$

Potential difference across $R _1= R _1 \times I =4 \times 2=8 V$.

View full question & answer→

Question 115 Marks

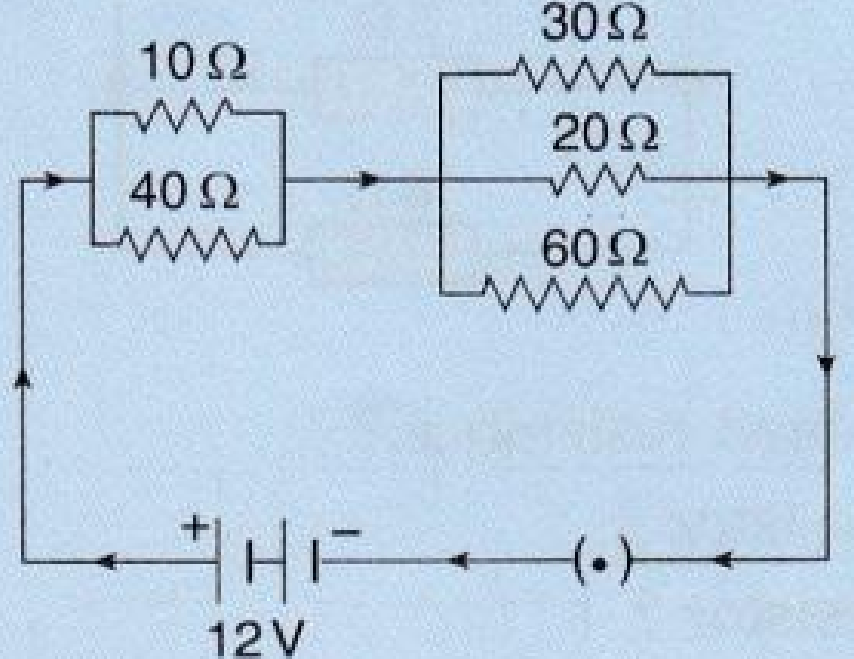

In the circuit diagram given below five resistances of $10 Ω, 40 Ω, 30 Ω, 20 Ω\ \text{and}\ 60 Ω$ are connected as shown to a 12V battery.

Calculate:

Total resistance in the circuit.
Total current flowing in the circuit.

Answer

Equivalent resistance of $10\Omega$ and $40\Omega$ resistance (Connected in parallel) is $R_1$ given as:

$\frac{1}{\text{R}_1}=\frac{1}{10}+\frac{1}{40}=\frac{5}{40}$

$\text{R}_1=8\Omega$

Equivalent resistance of $30\Omega, 20\Omega$ and $60\Omega$ resistance (connected in parallel) is $R_2$given as:

$\frac{1}{\text{R}_2}=\frac{1}{30}+\frac{1}{20}+\frac{1}{60}=\frac{6}{60}$

$\text{R}_2=10\Omega$

$R_1$and $R_2$ are connected in series.

Total resistance in the circuit is $R=R_1+R_2=8+10=18$

Total current flowing in the circuit, $\text{I}=\frac{\text{V}}{\text{R}}=\frac{12}{18}=0.67\text{A}$

View full question & answer→

Question 125 Marks

State whether an electric heater will consume more electrical energy or less electrical energy per second when the length of its heating element is reduced. Give reasons for your answer.

Answer

By reducing the length of element the resistance will decrease. Power is inversely proportional to resistance. So, this will result in more consumption of energy.

View full question & answer→

Question 135 Marks

What is electrical resistivity of a material? What is its unit? Describe an experiment to study the factors on which the resistance of conducting wire depends.

Answer

The inherent property of a conductor because of which it resists the flow of electric current is called resistivity. Resistivity for a particular material is unique. The SI unit of resistivity is (Ohm metre).Experiment to study the factors on which resistance of conducting wire depends:

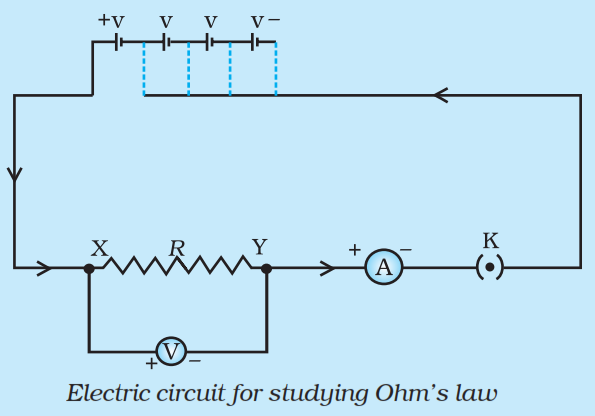

Take an ammeter, electric cell, plug key, nichrome wire and wires of different materials.
Make the circuit as shown in figure.
Start the experiment with nichrome wire. Attach it in the circuit and take ammeter reading.
Change the length of nichrome wire and take ammeter reading.
Change the thickness of nichrome wire and take ammeter reading.
After above steps, use copper wire for the experiment. Attach a copper wire in the circuit and take ammeter reading.
Change the length of copper wire and take ammeter reading.
Change the thickness of copper wire and take ammeter reading.
Repeat above steps with wires of different materials.

Observations:

It is seen that resistance depends on material of conductor.
Resistance depends on length of conductor.
Resistance depends on area of cross-section.

View full question & answer→

Question 145 Marks

State Ohm's law. Write the necessary conditions for its validity. How is this law verified experimentally? What will be the nature of graph between potential difference and current for a
conductor? Name the physical quantity that can be obtained from this graph.

Answer

Ohm's law: The potential difference across the ends of a resistor is directly proportional to the current through it, provided it's temperature remains the same.
The conditions for its validity is temperature and all other parameters should be constant.
The nature of the graph is a straight line passing through the origin.
Resistance is the physical quantity that can be determined from the graph.

View full question & answer→

Question 155 Marks

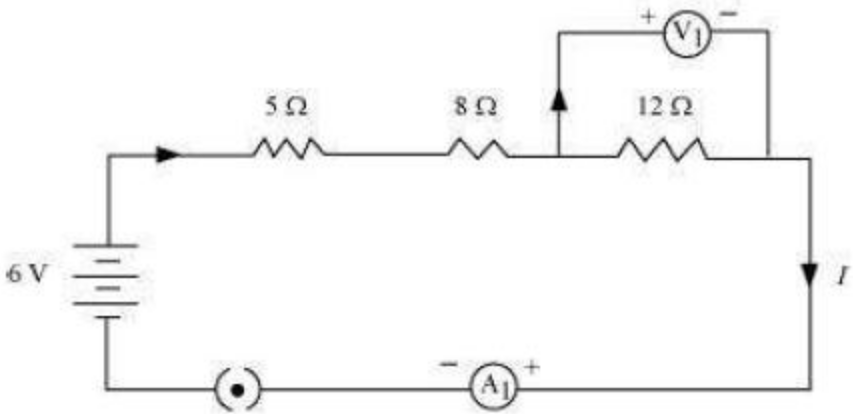

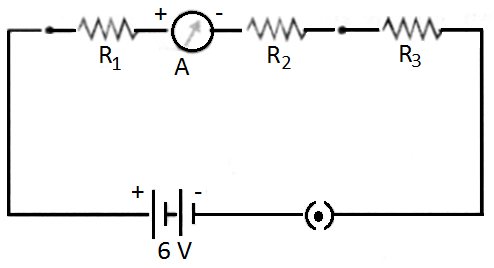

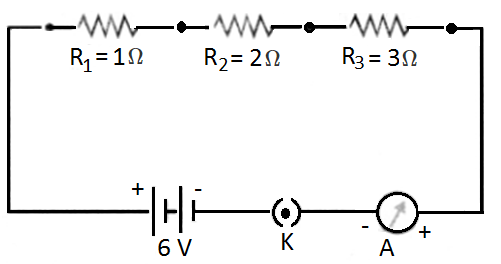

Redraw the circuit of Question 1, putting in an ammeter to measure the current through the resistors and a voltmeter to measure the potential difference across the 12 Ω resistor. What would be the readings in the ammeter and the voltmeter?

Answer

To measure the current flowing through the resistors, an ammeter should be connected in the circuit in series with the resistors. To measure the potential difference across the 12 G resistor, a voltmeter should be connected parallel to this resistor, as shown in the following figure.

The resistances are connected in series.
Ohm's law can be used to obtain the readings of ammeter and voltmeter. According to Ohm's law,
V = IR
Where,
Potantial difference, V = 6 V
Current flowing through the circuit/ resistors = I
Resistance of the circuit/ resistors = I
Resistance of the circuit, $\text{R} = 5 + 8 + 12 = 25\Omega$
$\text{I}=\frac{\text{V}}{\text{R}}=\frac{6}{25}=0.24 \ \text{A}$
potential difference across $12\Omega$ resistor = $V_1$
Current flowing through the $12\Omega$ resister, I = 0.24 A.
Therefore, using Ohm's law, we obtain
$V_1=I R=0.24 \times 12=2.88 V$
Therefore, the reading of the ammeter will be 0.24 A.
The reading of the voltmeter will be 2.88 V.

View full question & answer→

Question 165 Marks

Three $2\Omega$ resistors, A, B and C, are connected as shown in Figure. Each of them dissipates energy and can withstand a maximum power of 18W without melting. Find the maximum current that can flow through the three resistors?

Answer

Here, $P=18 W$ Using, $P = I ^2 R$, we get $I =\sqrt{\frac{ P }{ R }}=\sqrt{\frac{18}{2}}=\sqrt{9}=3 A$

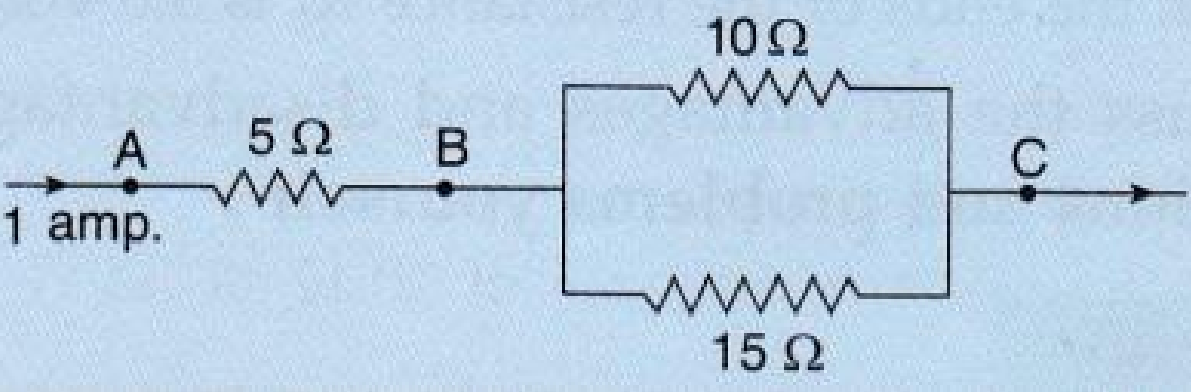

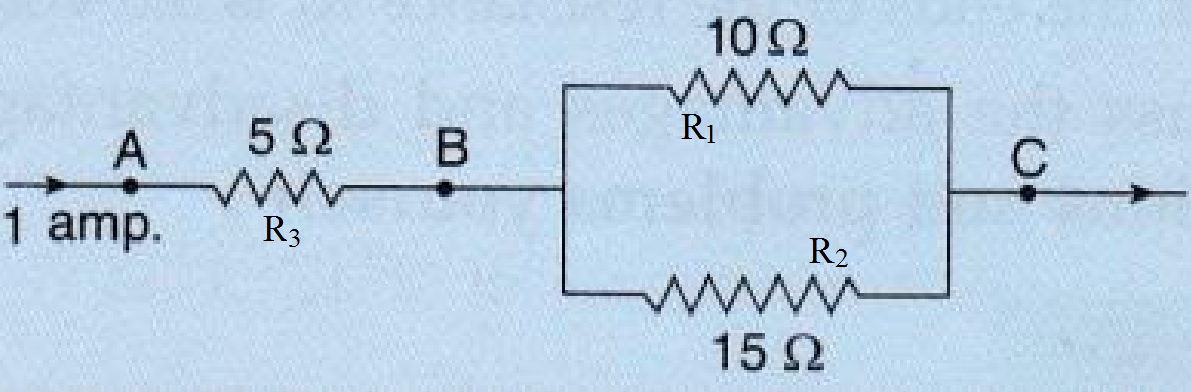

$\therefore$ Maximum current that can flow through a resistor $A =3 A$
Since resistors $B$ and $C$ are connected in parallel, so potential difference across $B$ and $C$ is same. Let $l _1$, be the current flowing through resistor. $B$ and $I_2$ be the current flowing through resistor $C_{,} \therefore 1_1 R_1=I_2 R_2$
or $\frac{ I _1}{ I _2}=\frac{ R _2}{ R _1}=\frac{2 \Omega}{2 \Omega}=1$ or, $I _1= I _2$ But $I _1+ I _2=1=3 \therefore 2 I _1=3$ or $I _1=1.5 A$
and $I _2= I _1=1.5 A$

View full question & answer→

Question 175 Marks

State Ohm’s law? How can it be verified experimentally? Does it hold good under all conditions? Comment.

Answer

According to Ohm's law the electric current flowing through a conductor is directly proportional to the potential difference applied across its ends provided the physical conditions such as temperature etc remains unchanged.
Let V be the potential difference applied across the ends of conductor through which current Iflows, then according to Ohm's law.
$\text{V}\propto\text{I}\Rightarrow\ \text{V}=\text{IR}$
Ohm’s law can be verified experimentally by the activity given below:

Firstly, Set up a circuit as shown in figure given below, consisting of a nichrome wire XY of length, say 0.5m, an ammeter, a voltmeter and four cells of 1.5V each. (Nichrome is an alloy of nickel,chromium, manganese, and iron metals.)

First use only one cell as the source in the circuit. Note the reading in the ammeter I, for the current and reading of the voltmeter V for the potential difference across the nichrome wire XY in the circuit. Tabulate them in the Table given.
Next connect two cells in the circuit and note the respective readings of the ammeter and voltmeter for the values of current through the nichrome wire and potential difference across the nichrome wire.
Repeat the above steps using three cells and then four cells in the circuit separately.
Calculate the ratio of V to I for each pair of potential difference V and current I.

S.No.	Number of cells used in the circuit	Current through the nichrome wire, I (ampere)	Potential difference across the nichrome wire, V (Volt)	$\frac{\text{V}}{\text{I}}$ $\Big(\frac{\text{Volt}}{\text{Ampere}}\Big)$
1.	1
2.	2
3.	3
4.	4

Plot a graph between V and I. The graph will be a straight line as shown below.

This verifies the Ohm’s law.

Ohm's does not hold under all conditions as it is basically not a fundamental law which means it has exceptions. Following are the conditions when Ohm’s law does not hold:

It is not obeyed when physical conditions of conductors like temperature keep on changing.
It is not obeyed by a lamp filament, junction diode, thermistor etc.
It is not obeyed in case of superconductors whose resistance is equal to zero.

View full question & answer→

Question 185 Marks

With the help of a circuit diagram, deduce the equivalent resistance of two resistances connected in series. Two resistances are connected in series as shown in the diagram:

What is the current through the 5 ohm resistance?
What is the current through R?
What is the value of R?
What is the value of V?

Answer

Fig shows two resistance $R _1$ and $R _2$ connected in series with a battery of V volt.
Let the p.d. across $R_1$ is $V_1$ and the p.d. across $R_2$ is $V_2$.
$\text { s.t. } V=V_1+V_2$
Let the equivalent resistance be R and current flowing through whole circuit is 1 .
By ohm's law's,
$\frac{V}{I}=R$
$V=I \times R$
Applying ohm's law to both R1 and R2
$V_1=I \times R_1$
$V_2=I \times R_2$
From eqs. (1), (2), (3) and (4), we get
$I \times R=I \times R_1+I \times R_2$
$I \times R=I \times\left(R_1+R_2\right)$
$R=R_1+R_2$

View full question & answer→

Question 195 Marks

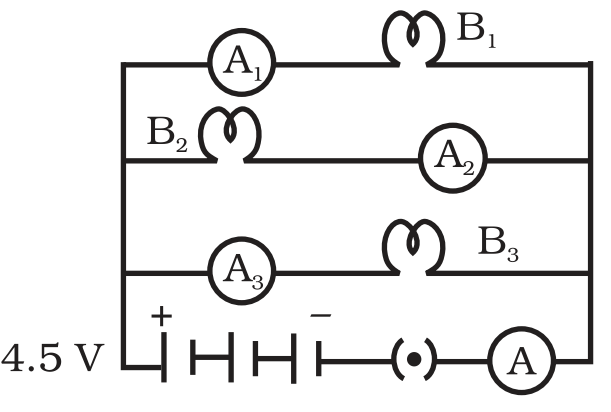

$B _1, B_2$ and $B _3$ are three identical bulbs connected as shown in Figure. When all the three bulbs glow, a current of 3 A is recorded by the ammeter A .

What happens to the glow of the other two bulbs when the bulb gets fused?
What happens to the reading of $A_1, A_2, A_3$ and $A$ when the bulb $B_2$ gets fused?
How much power is dissipated in the circuit when all the three bulbs glow together?

Answer

i. The glow of bulb depends upon the energy disspated per second i.e. $P=\frac{V^2}{R}$. Since $V$ and $R$ of both the bulbs $B_2$ and $B_3$ remain the same even if bulb $B$, gets fused so glow of $B_2$ and $B_3$ remain the same.
ii. Since bulbs are identical, so their resistance is equal (i.e. resistance of each bulb $=R \Omega$ ).
When all bulbs glow, net resistnace of the circuit is given by,

$\frac{1}{\text{R}'}=\frac{1}{\text{R}}+\frac{1}{\text{R}}+\frac{1}{\text{R}}=\frac{3}{\text{R}}$

Or, $\text{R}'=\frac{\text{R}}{3}$

I = 3A, V = 4.5V

Using, V = IR', we get

$4.5=3\times\frac{\text{R}}{3}\ \text{or R }=4.5\Omega$

When $B_2$ gets fused, only two bulbs $B_1$ and $B_2$ in parallel are in the circuit.

$\therefore$ Net resistance of the circuit is given by,

$\frac{1}{\text{R}}=\frac{1}{4.5}+\frac{1}{4.5}=\frac{2}{4.5}\ \text{or R }=\frac{4.5}{2}\Omega$

$\therefore\ \text{I}=\frac{\text{V}}{\text{R}}=\frac{4.5\times2}{4.5}=2\text{A}$

Thus, reading of ammeter A = 2A

Since $B_1$ and $B_3$ are in parallel and have same resistance, so 2 A current will be equally distributed between $B _1$ and $B_3$. Therefore, reading of ammeter $A_1=1 A$ Reading of ammeter $A_3=1 A$ Circuit containing $B_2$ is broken, so no current flows through this circuit. Hence reading of ammeter $A _2=$ zero.

Power dissipated in the circuit,

P = V × I

= 4.5 × 3 = 13.5W

View full question & answer→

Question 205 Marks

A wire is cut into three equal parts and then connected in parallel with the same source. How will its.

Resistance and resistivity gets affected?
How would the total current and the current through the parts change?

Answer

Here, the new resistance: $\text{R}=\frac{\text{R}}{3}$

$\frac{1}{\text{R}_{\text{eq}}}=\frac{3}{\text{R}_{1}}+\frac{3}{\text{R}_{2}}+\frac{3}{\text{R}_{3}}$

$\frac{1}{\text{R}_{\text{eq}}}=\frac{1}{\frac{\text{R}}{3}}+\frac{1}{\frac{\text{R}}{3}}+\frac{1}{\frac{\text{R}}{3}}$

$\frac{1}{\text{R}_{\text{eq}}}=\frac{3}{\text{R}}+\frac{3}{\text{R}}+\frac{3}{\text{R}}$

$\frac{1}{\text{R}_{\text{eq}}}=\frac{9}{\text{R}}$

$\frac{1}{\text{R}_{\text{eq}}}=\frac{\text{R}}{9}\Omega $

The resistivity is dependent on the nature of the material.

Hence, there will be no change in the reisitivity of the wire.

Now, by Ohm’s Law

$\text{V}=\text{I}\times\text{R}$

$\text{I}=\frac{\text{V}}{\text{R}}=\frac{\text{V}}{\frac{\text{R}}{9}}=\frac{9\text{V}}{\text{R}}$

$\therefore\text{I}=9\times\text{I}$

Thus, the current will increase 9 times than the previous current.

View full question & answer→

Question 215 Marks

The p.d. across a lamp is 12V. How many joules of electrical energy are changed into heat and light when:

A charge of 1C passes through it?
A charge of 5C passes through it?
A current of 2A flows through it for 10s?

Answer

P.d. = 12V

$\text{P}.\text{d}.\frac{\text{Work done}}{\text{Charge Moved}}$

Work done = P.d. × Charge moved

= 12 × 1 = 12J

Amount of electrical energy changed into heat and light = 12J

Work done = P.d. × Charge moved

= 12 × 5 = 60J

Amount of electrical energy changed into heat and light = 60J

$\text{I}=\frac{\text{Q}}{\text{t}}$

Q × I × t

= 2 × 10 = 20C

Work done = p.d. × Charged moved

= 12 × 20 - 240J

Amount of electrical energy changed into heat and light = 240J

View full question & answer→

Question 225 Marks

What is Joule’s heating effect? How can it be demonstrated experimentally? List its four applications in daily life.

Answer

The Joule’s Law of Heating states that the heat produced in a resistor is:

Directly proportional to the square of current for a given resistor.
Directly proportional to resistance for a given current, and
Directly proportional to the time for which the current flows through the resistor.

This can be expressed by following equation:
$H=I^2 R t$
Here; I is electric current, R is resistance, t is time and H is heating effect.
Experiment to Demonstrate Joule’s Law of Heating:

In this experiment, we will show the effect of current on heating.
Take a water heating immersion rod and connect to a socket which is connected to regulator. It is important to recall that a regulator controls the amount of current flowing through a device.
Keep the pointer of regulator on minimum and count the time taken by immersion rod to heat a certain amount of water.
Increase the pointer of regulator to next level. Count the time taken by immersion rod to heat the same amount of water.
Repeat above step for higher levels on regulator to count the time.

Observation: It is seen that with increased amount of electric current, less time is required to heat the same amount of water. This shows Joule’s Law of Heating. Application: Electric toaster, oven, electric kettle and electric heater etc. work on the basis of heating effect of current.

View full question & answer→

Question 235 Marks

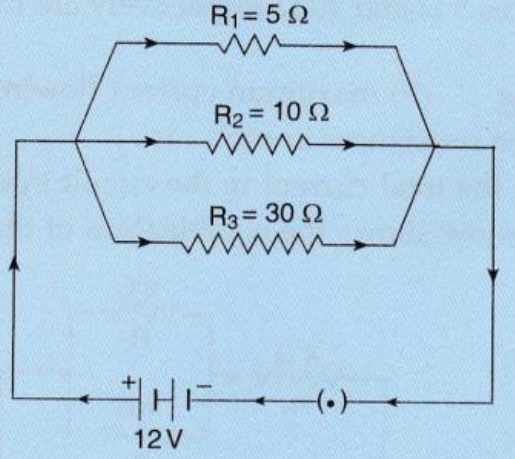

In the circuit diagram given below, three resistors R R , and R of $5 Ω, 10 Ω$ and $30 Ω,$ respectively are connected as shown.

Calculate:

Current through each resistor.
Total current in the circuit.
Total resistance in the circuit.

Answer

$R_1, R_2$ and $R_3$ are connected in parallel.. current through $\text{R}_1=\frac{\text{V}}{\text{R}_1}=\frac{12}{5}=2.4\text{A}$ current through $\text{R}_2=\frac{\text{V}}{\text{R}_2}=\frac{12}{10}=1.2\text{A}$ current through $\text{R}_3=\frac{\text{V}}{\text{R}_2}=\frac{12}{30}=0.4\text{A}$ Total current in the circuit = 2.4 + 1.2 + 0.4 = 4A Total resistance in the circuit = R$\frac{1}{\text{R}}=\frac{1}{\text{R}_1}+\frac{1}{\text{R}_2}+\frac{1}{\text{R}_3}$
$\frac{1}{\text{R}}=\frac{1}{5}+\frac{1}{10}+\frac{1}{30}$
$\frac{1}{\text{R}}=\frac{10}{30}$
$\text{R}=3\ \text{ohm}$

View full question & answer→

Question 245 Marks

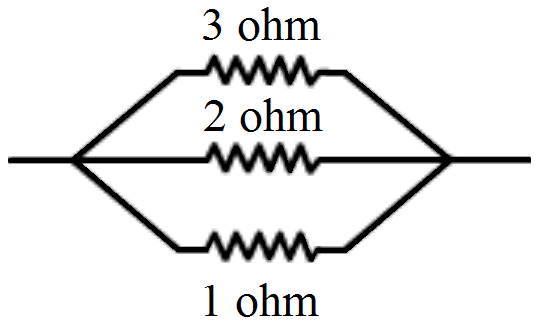

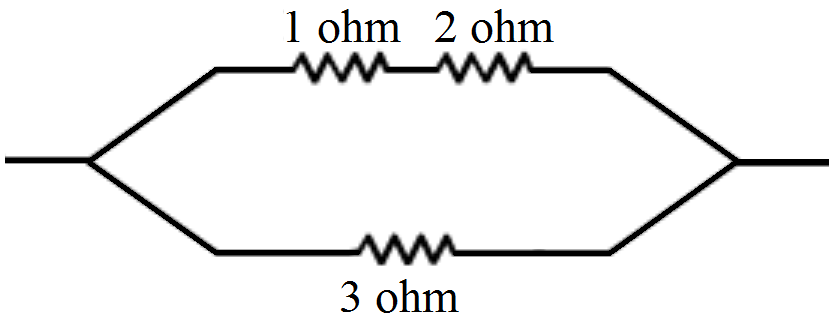

You are given three resistances of 1,2 and 3 ohms. Show by diagrams, how with the help of these resistances you can get:

$6\Omega$
$\frac{6}{11}\Omega$
$1.5\Omega$

Answer

Equivalent resistance $=1\Omega+2\Omega+3\Omega=6\Omega$

Equivalent resistance$\frac{1}{\text{R}}=\frac{1}{1}+\frac{1}{2}+\frac{1}{3}=\frac{6+3+2}{6}=\frac{11}{6}$
$\therefore\text{R}=\frac{6}{11}\Omega$

Equivalent resistance of first line$=1\Omega+2\Omega=3\Omega$
Resistance of the secound line $=3\Omega$ Equivalent resistance$\frac{1}{\text{R}}=\frac{1}{3}+\frac{1}{3}=\frac{2}{3}$
$\therefore\text{R}=\frac{3}{2}=1.5\Omega$

View full question & answer→

Question 255 Marks

With the help of a diagram, derive the formula for the resultant resistance of three resistors connected in series.

Answer

Fig shows three resistance $R_1, R_2$ and $R_3$ connected in series with a battery of $V$ volts. Lets the p.d. across $R_1, R_2$ and $R_3$ is $V_1, V_2$ and $V_3$ respectively.
$\text { s.t. } V=V_1+V_3+V_2$
Let the equivalent resistance be R and current flowing through whole circuit is 1 .
By ohm's law
$\frac{V}{I}=R$
$V=1 \times R .$
Applying ohm's law to both $R_1, R_2$ and $R_3$.
$V_1=1 \times R_1 \ldots \ldots(3)$
$V_2=1 \times R_2 \ldots \ldots \ldots .$
$V_3=1 \times R_3 \ldots \ldots(5)$
From eq. (1), (2), (3), (4) and (5), we get
$I \times R=1 \times R_1+I \times R_2+I \times R_3$
$I \times R=1 \times\left(R_1+R_2+R_3\right)$
$R=R_1+R_2+R_3$

View full question & answer→

Question 265 Marks

How will you conclude that the same potential difference (voltage) exists across three resistors connected in a parallel arrangement to a battery?

Answer

Perform an activity to investigate the relation between potential difference across parallel combination of resistors and the potential difference across each individual resistors,
1. Connect three resistors of resistances $R_1, R_2$ and $R_3$ in parallel. One end of each resistor is joined at a common point ' $a$ ' and the other end of each resistor is connected at another common point 'b'.
2. Connect the parallel combination of resistors with a battery, a plug key K and an ammeter A as shown in figure.

Now connect a voltmeter across the parallel combination of resistors between a and b points.
Note the reading of voltmeter. Let it be V. This is the potential difference across the parallel combination of resistors.
Now, disconnect the voltmeter and connect it across $R_1$ as shown in figure.

6. Note the reading of voltmeter. It is found to be V .
7. Disconnect the voltmeter and connect it across $R _2$. Note the reading of voltmeter. It is found to be V .
8. Again disconnect the voltmeter and connect it across $R _3$. Note the reading of voltmeter. It is found to be V .

Conclusion: When resistors are connected in parallel to each other, potential difference across each resistor is equal to the potential difference across the parallel combination of resistors.

View full question & answer→

Question 275 Marks

Find out the following in the electric circuit given in Figure.

Effective resistance of two 8Ω resistors in the combination.
Current flowing through 4Ω resistor.
Potential difference across 4Ω resistance.
Power dissipated in 4Ω resistor.
Difference in ammeter readings, if any.

Answer

Two 80 resistors are in parallel, so their effective resistance is given by,

$\frac{1}{\text{R}}=\frac{1}{8}+\frac{1}{8}=\frac{1}{4}\ \text{or R }=4\Omega$

Net resistance of the circuit, $\text{R}=4\Omega+4\Omega=8\Omega$

$\text{V}=8\text{V}$

$\therefore$ Current in the circuit, $\text{I}=\frac{\text{V}}{\text{R}}=\frac{8}{8}=1\text{A}$

Hence current flowing through $4\Omega$ resistor = 1A

Potential difference across $4\Omega$ resistor, V = IR

= 1 × 4 = 4V

Power dissipated in $4\Omega$ resistor, $P=I^2 R$

= 1 × 4 = 4W

Since same current flows through every part in a series circuit and both the ammeters are connected in series, so there will be no difference in ammeter readings.

View full question & answer→

Question 285 Marks

A p.d. of 4V is applied to two resistors of $6 Ω$ and $2 Ω$ connected in series. Calculate:

The combined resistance.
The current flowing.
The p.d. across the $6 Ω$ resistor.

Answer

$V=4 V,$
$R _1=6$ ohm, $R _2=8$ ohm (in series)
Combined resistance, $R=R_1+R_2+6+2=8$ ohm
Current flowing, $I =\frac{ V }{ R }=\frac{4}{8}=0.5 amp$
p.d. across 6 ohm resistor $=I \times R_1=0.5 \times 63 V$.

View full question & answer→

Question 295 Marks

In a house two 60W electric bulbs are lighted for 4 hours, and three 100W bulbs for 5 hours everyday. Calculate the electric energy consumed in 30 days.

Answer

Case 1:Power, $P _1=60 W$
Number, $n _1=2$
Time for use, $t _1=4 h$ everyday
Electrical energy consumed in 30 days $=30 \times 0.48=14.4 KWh$
Case 2:
Power, $P _2=100 W$
Number, $n _2=3$
Time for use, $t _2=5 h$ everyday
Electrical energy consumed in everyday, E2 $= n _2 \times P _2 \times t _2$
$=3 \times 100 \times 5=1500=1.5 kWh$
Electrical energy consumed in 30 days $=30 \times 1.5=45 kWh$
Total electrical energy consumed in 30 days $=14.4 kWh +45 kWh =59.4 KWh$

View full question & answer→

Question 305 Marks

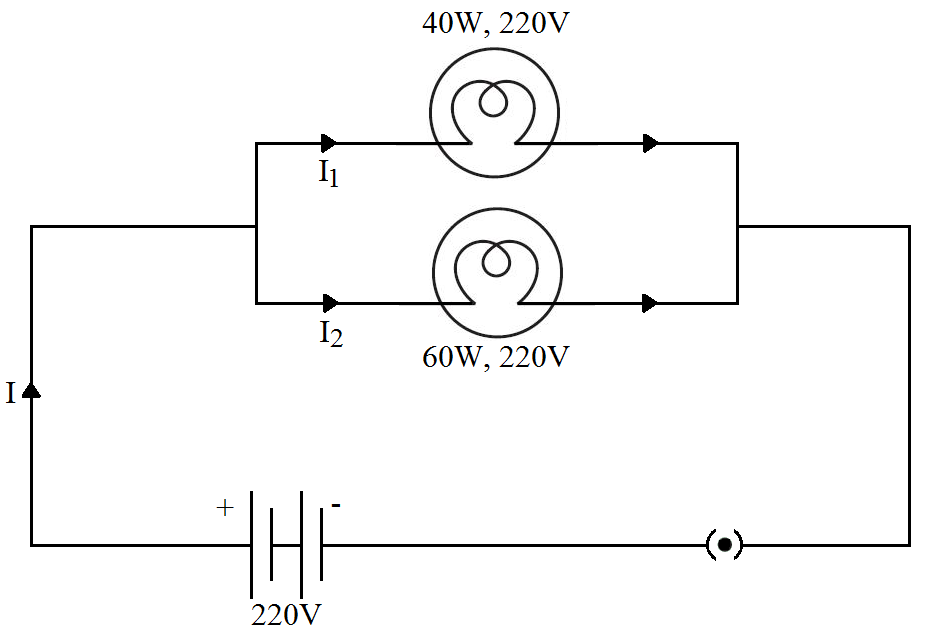

Two lamps, one rated 40W at 220V and the other 60W at 220V, are connected in parallel to the electric supply at 220V.

10 Draw a circuit diagram to show the connections.
Calculate the current drawn from the electric supply.
Calculate the total energy consumed by the two lamps together when they operate for one hour.

Answer

Given 2 Lamps: $P_1=40 W, P_2=60 W$
V= 220V

Voltage across both the bulbs is same and is equal to 220V.
Current through 40W lamp $=\text{I}_1=\frac{\text{P}_1}{\text{V}}=\frac{40}{220}\text{A}$
Current through 60W lamp $=\text{I}_2=\frac{\text{P}_2}{\text{V}}=\frac{60}{220}\text{A}$
Total current drawn from the electric supply $=\frac{40}{220}+\frac{60}{220}=0.45\text{A}$
Energy consumed by 40 W lamp in 1hr. E1 = $P_1 \times t=40 \times 1=40 W h$
1Wh = 3.6kJ
$E_1=40 \times 3.6=144 KJ$
Energy consumed by 60 W lamp in $1 hr , E _2= p _2 \times t =60 \times 1=60 Wh=216 KJ$
Total energy consumed = 144 + 216 = 360KJ

View full question & answer→

Question 315 Marks

Three incandescent bulbs of 100W each are connected in series in an electric circuit. In another circuit another set of three bulbs of the same wattage are connected in parallel to the same source.

Will the bulb in the two circuits glow with the same brightness? Justify your answer.
Now let one bulb in both the circuits get fused. Will the rest of the bulbs continue to glow in each circuit? Give reason.

View full question & answer→

Question 325 Marks

Two resistors, with resistances $ 5 Ω$ and $10 Ω$ respectively are to be connected to a battery of emf 6V so as to obtain:

Minimum current flowing.
Maximum current flowing.

How will you connect the resistances in each case?
Calculate the strength of the total current in the circuit in the two cases.

Answer

Given: Two resistors with resistances $R_1=5$ ohm and $R_2=10$ ohm, $V=6$ volt

For minimum current these two should be connected in series. For maximum current these two should be connected in parallel.

In series,

Total resistance = 5 + 10 = 15 ohms

Therefore total current drawn $= \frac{\text{V}}{\text{R}}=\frac{6}{15}=0.4\ \text{amps}$

In parallel,

Total resistance R is given as

$\frac{1}{\text{R}}=\frac{1}{\text{R}_1}+\frac{1}{\text{R}_2}$

$\frac{1}{\text{R}}=\frac{1}{5}+\frac{1}{10}$

$\frac{1}{\text{R}}=\frac{3}{10}$

$\text{R}=\frac{10}{3}\ \text{ohm}$

Therefore total current drawn by the circuit $=\frac{\text{V}}{\text{R}}=\frac{6}{\big(\frac{10}{3}\big)}=1.8\ \text{amps}.$

View full question & answer→

Question 335 Marks

In the circuit given below:

What is the combined resistance?
What is the p.d. across the combined resistance?
What is the p.d. across the $3 Ω$ resistor?
What is the current in the $3 Ω$ resistor?
What is the current in the $6 Ω$ resistor?

Answer

Total current flowing through circuit, $I =6 A R _1=3 ohm , R _2=6 ohm$ Combined resistance R is$\frac{1}{\text{R}}=\frac{1}{3}+\frac{1}{6}$
$\frac{1}{\text{R}}=\frac{3}{6}$
R = 2 ohms p.d. across the combined resistance = IR = 6 × 2 12V p.d. across the 3 ohm resistor = p.d. across the combined resistance = 12V Current flowing through the 3 ohm resistor $=\frac{\text{V}}{\text{R}_1}=\frac{12}{3}=4\text{A}$ Current flowing through the 3 ohm resistor $=\frac{\text{V}}{\text{R}_2}=\frac{12}{6}=2\text{A}$

View full question & answer→

Question 345 Marks

An electric circuit consisting of a 0.5m long nichrome wire XY, an ammeter, a voltmeter, four cells of 1.5V each and a plug key was set up.

Draw a diagram of this electric circuit to study the relation between the potential difference maintained between the points ‘X’ and ‘Y’ and the electric current flowing through XY.
Following graph was plotted between V and I values:

What would be the values of ratios when the potential difference is 0.8V, 1.2V and 1.6V respectively? What conclusion do you draw from these values?

What is the resistance of the wire?

Answer

Since the graph is a straight line passing through the origin, so current is directly proportional to the potential difference.

Hence, the ration $\frac{\text{V}}{\text{I}}$ remains constant.

From graph when V = 1.5 volt, I = 0.6 amp

So, $\frac{\text{V}}{\text{I}}=-\frac{15}{0.6}-25\Omega$

For p.d. 0.8V, 1.2V and 1.6V, the value of $\frac{\text{V}}{\text{I}}$ ratio the same i.e., 2.5 ohm.

The resistance of the wire is equal to the ratio of potential difference applied and the current passing through it.

$\text{R}-\frac{\text{V}}{\text{I}}-25\Omega$

View full question & answer→

Question 355 Marks

A copper wire has diameter 0.5 mm and resistivity of $1.6 \times 10^{-8} \Omega m$. What will be the length of this wire to make its resistance $10 \Omega$ ? How much does the resistance change if the diameter is doubled?

Answer

Area of cross-section of the wire, $\text{A}=\pi\Big(\frac{\text{d}}{2}\Big)2$ Diameter= 0.5 mm = 0.0005m Resistance, $\text{R}=10\Omega$ We know that$\text{R}=\rho\frac{\text{l}}{\text{A}}$
$\text{l}=\frac{\text{RA}}{\rho}$
$=\frac{10\times3.14\times\Big(\frac{0.0005}{2}\Big)^2}{1.6\times10^{-8}}$
$=\frac{10\times3.14\times25}{4\times1.6}=122.72\text{m} $
$\therefore$ length of the wire = 122.72m
if the diameter of the wire is doubled, new diameter = 2 × 0.5 = 1 mm = 0.001 m Let new resistance be R'$\text{R}'=\rho\frac{\text{l}}{\text{A}}$
$=\frac{1.6\times10^{-8}\times122.72}{\pi\Big(\frac{1}{2}\times10^{-3}\Big)^2}$
$=\frac{1.6\times10^{-8}\times122.72\times4}{3.14\times10^{-6}}$
$=250.2\times10^{-2}=2.5 \ \Omega$

View full question & answer→

Question 365 Marks

A 2kW heater, a 200W TV and three 100W lamps are all switched on from 6m. to 10p.m. What is the total cost at Rs.5.50per kWh?

Answer

For heater
P = 2KW, t = 4h
E = P × t = 2 × 4 = 8KWh
For TV:
P = 200W = 0.2KW t = 4h
E = P × t = 0.2 × 4 = 0.08 KWh
Lamps:
P = 100W = 0.1KW, t = 4h, n = 3
E = n × P × t = 3 × 0.1 × 4 = 1.2 KWh
Total energy consumed = 8 + 0.8 + 1.2 = 10KWh
Cost of 1KWh = Rs. 5.50
Cost of 10KWh = Rs. 5.50 × 10 = Rs. 55

View full question & answer→

Question 375 Marks

Show with the help of diagrams, how you would connect three resistors each of resistance $6 Ω,$ so that the combination has resistance of

$9 Ω$
$ 4 Ω.$

Answer

Resultant resistance for parallel circuit = R

$\frac{1}{\text{R}}=\frac{1}{6}+\frac{1}{6}$

$\frac{1}{\text{R}}=\frac{2}{6}$

$\text{R} = 3$

Effective resistance = 6 + 3 = 9 ohms

Resultant resistance for each parallel circuit = R

$\frac{1}{\text{R}}=\frac{1}{6}+\frac{1}{6}+\frac{1}{6}$

$\frac{1}{\text{R}}=\frac{3}{6}$

$\text{R} = 2$

Therefore effective resistance = 2 + 2 = 4 ohms.

View full question & answer→

Question 385 Marks

For a heater rated at 4kW and 220V, calculate:

The current,
The resistance of the heater,
The energy consumed in 2 hours, and
The cost if 1kWh is priced at ₹60.

Answer

Given,
$P=4 Kw, V=220 V$
$\text { a. } I=\text { ? }$
$\text { Power }=VI=250 \times 1$
$4000=2501$
$\text { I = 16amp }$
$\text { b. } R=\text { ? }$
$P=I^2 R$
$P=16^2 \times R$
$R=\frac{4000}{16^2}$
$R=15.25 \text { ohm }$
c. Energy consumed in two hour $= P \times t$
$=4 \times 2$
$=8 Kw-hr$
d. If $1 KWh =$ Rs. 4.6
$\text { total cost }=8 \times 4.6=\text { Rs. } 36.8$

View full question & answer→

Question 395 Marks

An electric bulb of resistance $20 Ω$ and a resistance wire of $4 Ω $are connected in series with a 6V battery. Draw the circuit diagram and calculate:

Total resistance of the circuit.
Current through the circuit.
Potential difference across the electric bulb.
Potential difference across the resistance wire.

Answer

a. Total resistance of the circuit $=R_1+R_2=20+4=24$ ohm
b. We know that
$V= R$
Therefore
$6=1 \times 24$
$I=\frac{6}{24}=0.25 amp$
c. p.d. across bulb $= R _1=0.25 \times 205 V$
d. p.d. across resistance wire $= IR _2=0.25 \times 41 V$

View full question & answer→

Question 405 Marks

Calculate the combined resistance in each case:

Answer

a. $R_1=500$ ohm, $R_2=1000$ ohm
As per given figure,
$R=R_1+R_2=500+1000=1500 \text { ohm. }$
b. $R_1=2$ ohm, $R_2=2$ ohm
As per given figure,
$\frac{1}{R}=\frac{1}{R_1}+\frac{1}{R_2}$
$\frac{1}{R}=\frac{1}{2}+\frac{1}{2}$
$R=1 ohm$
c. $R _1=4$ ohm, $R _2=4$ ohm, $R _3$
As per given figure,
$\frac{1}{R}=\frac{1}{R_1}+\frac{1}{R_2}$
$\frac{1}{R}=\frac{1}{4}+\frac{1}{4}$
$R=2 ohm$
Total resistance $=R+R_3$
$=2+3=5 ohm$

View full question & answer→

Question 415 Marks

Derive the expression for the heat produced due to a current 'l' flowing for a time interval 't' through a resistor 'R' having a potential difference 'V' across its ends. With which name is the
relation known? How much heat will an instrument of 12W produce in one minute if it is connected to a battery of 12V?
Study the following electric circuit and find.

The current flowing in the circuit and
The potential difference across $10\Omega$ resistor.

Answer

we know that $E =\frac{ P }{ t }$
also $P = VI$
substituting we get
$E = VIt$
but $V =\mid R$
substituting we get
$E =| RIt =| * Rt$ T
his is the relation and its called joules law of heating
$P=12 W$
$t =60 sec$
$V =12 V$
$P= VI I$
$=\frac{ p }{ v }=\frac{12}{12}$
$=1 A$
now
$H = VIt =12(1) 60$
$=12(60)=720 $
$J= R _1= R _1+ R _2=10+2030 \Omega $
$V=3 V 1$.
From ohm's law $V = IR$.
$3=1 \times 30 \Rightarrow 1=\frac{3}{30}=\frac{1}{10}$ Ampere or 0.1 A
2. Potential difference across $10 \Omega$ reistor.
$V = I R$
$=\frac{1 \times 10}{10}=1$ volt.

View full question & answer→

Question 425 Marks

How will you infer with the help of an experiment that the same current flows through every part of the circuit containing three resistances in series connected to a battery?

Answer

Perform an activity to show that in series combination of resistors, same current flows through each resistor.
1. Connect three resistors of resistances $R_1=1 \Omega, R_2=2 \Omega$ and $R_3=3 \Omega$ in series.
2. Connect the series combination of resistors with a battery of 6 V , a plug key K and an ammeter A as shown in figure.

Note the reading of ammeter after plugging the key. Let it be I.
Now disconnect ammeter and connect it in between the resistors $R_1$ and $R_2$ as shown in figure.

5. Again plug the key and note the reading of ammeter. It is found that again it is I.
6. Now disconnect the ammeter and connect it in between the resistors $R _2$ and $R _3$.
7. Plug the key and note the reading of ammeter. Again it is found to be I.

View full question & answer→

Question 435 Marks

How can three resistors of resistances 2 Ω, 3 Ω, and 6 Ω be connected to give a total resistance of (a) 4 Ω, (b) 1 Ω?

Answer

There are three resistors of resistances $2\Omega$, $3\Omega$, and $6\Omega$ respectively.

The following circuit diagram shows the connection of the three resistors.

Here, $6\Omega$ and $3\Omega$ resistors are connected in parallel.

Therefore, their equivalent resistance will be given by

$\frac{1}{\frac{1}{6}+\frac{1}{3}}=\frac{6\times3}{6+3}=2 \ \Omega$

This equivalent resistor of resistance $2\Omega$ is connected to a $2\Omega$ resistor in series.

Therefore, the equivalent resistance of the circuit = $2\Omega$ + $2\Omega$ = $4\Omega$

Hence the total resistance of the circuit is $4\Omega.$

The following circuit diagram shows the connection of the three resistors.

All the resistors are connected in series. Therefore, their equivalent resistance will be given as.

$\frac{1}{\frac{1}{2}+\frac{1}{3}+{\frac{1}{6}}}=\frac{1}{\frac{3+2+1}{6}}=\frac{6}{6}=1 \ \Omega$

Therefore, the total resistance of the circuit is $1\Omega.$

View full question & answer→

Question 445 Marks

Explain with diagrams what is meant by the “series combination” and “parallel combination” of resistances. In which case the resultant resistance is:

Less, and
More, than either of the individual resistances?

Answer

Series combination

When two or more resistance are connected end to end consecutively, they are said to be connected in series combination. The combined resistance if any number of resistance connected in series in equal to the sum of the individual reisistance.

$R = R _1+ R _2 \ldots \ldots$

The resultant resistance is more than either of the individual resistance.

Parallel combination

When two or more resistance are connected between the same two points, they are said to be connected in parallel combination. The reciprocal of the combined resistance of a number of resistance connected in parallel is equal to the sum of the reciprocal of all the individual resistance.

$\frac{1}{\text{R}}=\frac{1}{\text{R} _1}+\frac{1}{\text{R}_2}+......$

View full question & answer→

Question 455 Marks

When a high resistance voltmeter is connected directly across a resister its reading is 2V. An electric cell is sending the current of 0.4 A, (measured by an ammeter) in the electric circuit
in which a rheostat is also connected to vary the current.

Draw an equivalent labelled circuit for the given data.
Find the resistance of the resister.
Name and state the law applicable in the given case. A graph is drawn between a set of values of potential difference (v) across the resister and current (I) flowing through it.

Show nature of graph thus obtained.

Answer

.
Voltmeter reading shows, V = 2 V

Since, $\text{R} =\frac {\text{V}}{\text{I}} = \frac{2}{0.4}=5\Omega$

The law applicable here is the Ohm’s law.

Ohm’s law states that the current flowing through a conductor is directly proportional to the potential difference across the conductor. The proportionality constant is the

resistance of the conductor, it is a constant for a known temperature range.

The graph obtained is a straight line with positive slope.

View full question & answer→

Question 465 Marks

An electric heater which is connected to a 220V supply line has two resistance coils A and B of $24 Ω$ resistance each. These coils can be used separately (one at a time), in series or in parallel. Calculate the current drawn when:

Only one coil A is used.
Coils A and B are used in series.
Coils A and B are used in parallel.

Answer

Given V = 220V

$R_A=R_B=24 \text { ohm }$

Current drawn when only coil A is used:

$\text{I}=\frac{\text{V}}{\text{R}_\text{A}}=\frac{220}{24}$

= 9.16 amps

Current drawn when coils A and B are used in series:

Total resistance, $R=R_A+R_B=24+24=48$ ohm

$\text{I}=\frac{\text{V}}{\text{R}}=\frac{220}{48}$

= 4.58 amps

Current drawn when coils A and B are used in parallel:

Total resistance, $\frac{1}{\text{R}}=\frac{1}{\text{R}_\text{A}}+\frac{1}{\text{R}_\text{B}}=\frac{1}{24}+\frac{1}{24}=\frac{2}{24}=\frac{1}{12}$

R = 12 ohm

$\text{I}=\frac{\text{V}}{\text{R}}=\frac{220}{12}$

$=18.33\ \text{amps}$

View full question & answer→

Question 475 Marks

Three resistors are connected as shown in the diagram.

Through the resistor 5 ohm, a current of 1 ampere is flowing,

What is the current through the other two resistors?
What is the p.d. across AB and across AC?
What is the total resistance?

Answer

According to the diagram

Total current I = 1 amp is entering the parallel combination of R1 and R. Let I1 current flows through R1 and I2 current flows through R2

Then

$\text{I}_1=\frac{\text{IR}_2}{\text{R}_1+\text{R}_2}$

$=\frac{1\times15}{10+15}=0.6\text{A}$

$\text{I}_2=\frac{\text{IR}_2}{\text{R}_1+\text{R}_2}$

$=\frac{1\times10}{10+15}=0.4\text{A}$

p.d. across AB = $IR_3 = 1 × 5 = 5V$

Equivalent resisyance between B and C is

$\frac{1}{\text{R}'}=\frac{1}{\text{R}_1}+\frac{1}{\text{R}_2}=\frac{1}{10}+\frac{1}{15}$

$\frac{1}{\text{R}'}=\frac{5}{30}$

R' = 6 ohm

Total resistance between A and C is R = 5 + 6 = 11 ohm

p.d. across AC = IR = 1 × 11 = 11V

Total resistance $=R_3+R^{\prime}=5+6=11$ ohm.

View full question & answer→

Question 485 Marks

When a 12 V battery is connected across an unknown resistor, there is a current of 2.5 mA in the circuit. Find the value of the resistance of the resistor.

Answer

$\text{V}=\text{IR}\Rightarrow \ \text{R}=\frac{\text{V}}{\text{I}}$$\Rightarrow \ \text{R}=\frac{12}{2.5\times10^{-3}}=4800 \ \Omega=4.8 \ \text{K}\Omega$.

View full question & answer→

Generate Paper Free All Electricity topics

[5 marks Questions] - Science STD 10 Questions - Vidyadip
