Physics M.C.Q (1 Marks)

1. Due to rupture of bonds

Explanation:

When Zener diode is connected in reverse bias, as applied voltage reaches at Zener breakdown voltage, due to rupture of bonds there is a sudden increase in current in Zener diode.

1. The average energy of electrons and holes.

Explanation:

In an intrinsic semiconductor, n=p, where, n is number of electrons and p is number of holes in intrinsic semiconductor.

This implies that there is an equal chance of finding an electron at the conduction band edge as there is of finding a hole at the valence band edge. Thus, the average energy level of electrons and holes is half of the energy band gap in intrinsic semiconductors.

Also the Fermi energy level lie exactly in the middle of energy band gap in intrinsic semiconductors. Thus, the value indicated by Fermi energy level in an intrinsic semiconductor is the average energy of electrons and holes.

1. NOT

Explanation:

Only one logic gate has one input terminal i.e. NOT gate.

1. NAND and NOR

Explanation:

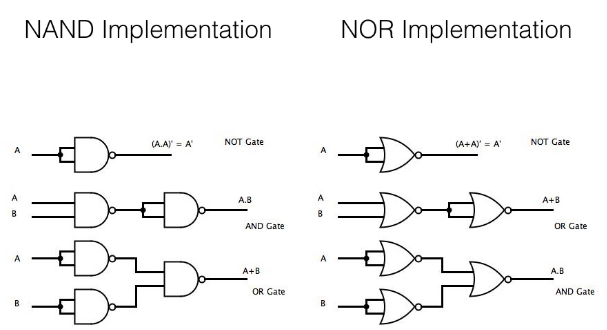

NAND and NOR gates are known as universal gates. Any one of these gates can be used to implement any kind of logic gate. This kind of feasibility is does not exist with other gates i.e. any other gate cannot solely implement all logic gates. For example, AND gate cannot be implemented using an OR gate and vice-versa. The implementation of NAND and NOR gates to generate other logic gates is shown above.

1. Stop a signal.

Explanation:

A NOT gate inverts the input signal which is the same as complementing a signal or changing the logic in a digital circuit. This means that when the input to the NOT gate is logic '0', the output is logic '1'. However, it does not stop a signal.

2. Statement 1-is true, statement -2 is true and statement -2 is correct explanation of statement-1.

Explanation:

NOT gate is also called invertor circuit since NOT gate inverts the input order. Hence, statement 1-is true statement-2 is true statement-2 is correct explanation of statement-1.

1. Photocurrent is proportional to incident light intensity.

Explanation:

In a photodiode, photocurrent is directly proportional to intensiy of incident light. More the incident light intensity, more will be the current produced.

4. Holes move from base to emitter.

4. Reverse biased

Explanation:

In reverse bias, 'p' region of a semi conductor is connected to negative pole and 'n' region to positive pole.

Solution:

Here, C = A.B and D = Ā.B

E = C + D = (A B) + (Ā .B)

Explanation The truth table of this arrangement of gates can be given

1. There will not be a steady current in the circuit.

1. Large velocity of the minority charge carriers if the doping concentration is small.

4. Strong electric field in the depletion region if the doping concentration is large.

Solution:

Reverse biasing: Positive terminal of the battery is connected to the N-crystal and negative terminal of the battery is connected to P-crystal.

1. In reverse biasing width of depletion layer increases
2. In reverse biasing resistance offered R_Reverse = 10⁵Ω.
3. Reverse bias supports the potential barrier and no current flows across the junction due to the diffusion of the majority carriers.

(A very small reverse current may exist in the circuit due to the drifting of minority carriers across the junction)

4. Break down voltage: Reverse voltage at which break down of semiconductor occurs. For Ge it is 25V and for Si it is 35V.

So, we conclude that in reverse biasing, ionization takes place because the minority charge carriers will be accelerated due to reverse biasing and striking with atoms which in turn cause secondary electrons and thus more number of charge carriers.

When doping concentration is large, there will be a large number of ions in the depletion region, which will give rise to a strong electric field.

4. nh ≠ ne.

2. 0.3

Explanation:

The junction voltage Vo​ for a germanium diode is 0.3 V at room temperature. This potential opposes the diffusion of electrons from n-side and holes from p-side. It is 0.7 eV for Si at room temperature.

3. Rectification

Explanation:

The process by which ac is converted into dc is known as "Rectification".

4. None of these

Explanation:

Depletion region is a region near the p-n junction where flow of charge carriers (free electrons and holes) is reduced over a given period and finally results in zero charge carriers.The width of depletion region which is generally 1μm, depends on the amount of impurities added to the semiconductor. Impurities are the atoms (pentavalent and trivalent atoms) added to the semiconductor to improve its conductivity.

hence answer is 1μm and correct option is D - none of these.

2. At V_i = 1V , it can be used as an amplifier.
3. At V_i = 0.5V, it can be used as a switch turned off.
4. At V_i = 2.5V, it can be used as a switch turned on.

Solution:

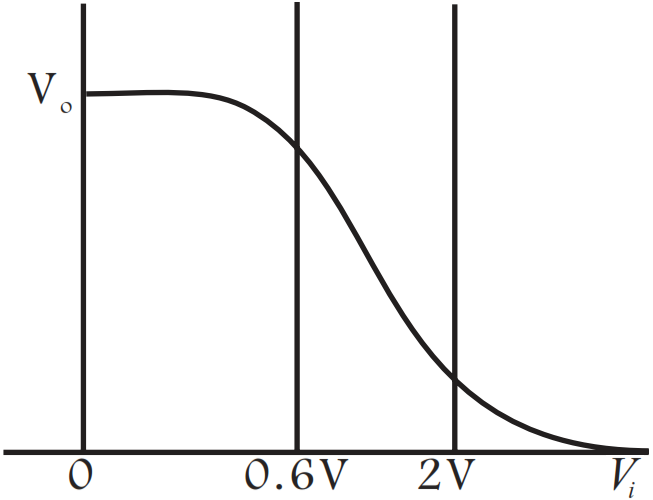

According to above graph transfer characteristics of a base biased common emitter transistor, we note that.

1. When V_i= 0.4 V, output voltage remain same,there is no collection current. So, transistor circuit is not in active state.
2. when V_i = 1V (This is in between 0.6V to 2V), the transistor circuit is in active state and when input is increasing output is decreasing because when CE is used as an amplifier input and output voltages are 180º out of phase. Then it is used as an amplifier.
3. when V_i = 0.5V, there is no collector current. The transistor is in cut off state. The transistor circuit can be used as a switch to be turned off.
4. when V_i = 2.5V, the collector current becomes maximum and transistor is in a saturation state and can used as switch turned on state.

1. 0,0

Explanation:

OR gate add the input signals given to it and AND gate multiply the input signals given to it.
Input (0,0) given to OR gate will yield result 0.

Now input for AND gate are (0,0) hence output will be 0.

For the second case, input (1,1) given to OR gate will yield result 1.

Now input for AND gate are (1,0) hence output will be 0.

Therefore combination of gates will yield result 0 and 0.

1. Electrons move from lower energy level to higher energy level in the conduction band.

3. Holes in the valence band move from higher energy level to lower energy level.

Solution:

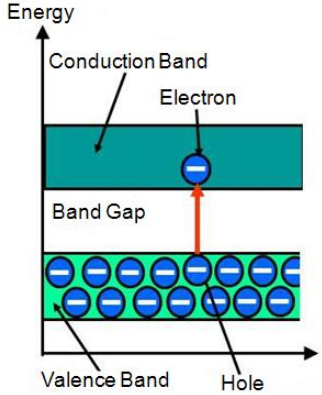

As we apply electric field is applied across a semiconductor, the electrons in the conduction band acquire energy and get accelerated. They travel from lower energy level to higher energy level. While the holes in valence band travel from higher energy level to lower energy level, where they will be having more energy.

3. The number of free electrons for conduction is significant only in Si and Ge but small in C.

Explanation:

In Si and Ge at room temperature(300K); the energy band gap is low as the result of which electrons in the covalent bonds gain kinetic energy, they break the bond and move to conduction band.

A hole is also created in the valence band. So the number of free electrons for conduction is significant in Si and Ge.

The energy band gap in case of carbon is high as the result of which there are not significant number of electrons in the conduction band even at room temperature.

4. OR.

3. The electron concentration increases.

Explanation:

When a semiconductor is doped with a donor type such as arsenic or phosphorous, which has five valence electrons, the donor atom replaces the Si or Ge atom. As a result, four out of the five electrons of the donor atom form a covalent bond by sharing an electron with four atoms of silicon. However, the fifth electron is free to move. Also, due to the breaking up of covalent bonds at room temperature, equal number of electrons and holes are produced. Thus, the total number of holes in the n-type semiconductor is less compared to the number of free electrons.

3. emitter

Explanation:

 It is a p-n-p, transistor. The Lead marked with the arrow is the emitter. It tells the direction of the flow of the holes i.e, the flow of conventional current.

1. NAND gate

Explanation:

The output is 0 only when the two inputs are 1.

The output is 1 when any of the input is zero.

This is the characteristic of a NAND gate.

1. An insulator

Explanation:

Insulators have large energy gap between valence and conduction band (about 6eV), while semiconductors have a smaller one and conductors, the smallest energy gap.

1. Equal to

Explanation:

In an intrinsic semiconductor, the number density of electrons is equal to the number density of holes i.e ne = nh.

Since there is no doping, no extra hole or electron is produced.

3. Increases, decreases.

1. Ionisation by collision.

Explanation:

Avalanche breakdown is caused by impact ionization of electron-hole pairs. A very little current flows under reverse bias conditions and depletion region increases. The electric field in the depletion region of a diode can be very high. Electron/holes that enter the depletion region undergo a tremendous acceleration.

As these accelerated carriers collide with the atoms, they can knock electrons from their bonds, creating additional electron/hole pairs and thus additional current. As these secondary carriers are swept into the depletion region, they too are accelerated and the process repeats itself.

4. OR - Gate

Explanation:

OR gate has the property that output is one when any one of the inputs is one and zero only when all inputs are zero. From the truth table, it can be seen that the above two properties are satisfied.

2. 0

Explanation:

NOT gate yields the reverse of the input signal in output, thus when an input signal 1 is applied to a NOT gate, its output is 0.

1. Zero as no charges cross the junctions.

Explanation:

When a diode is connected in a Zero Bias condition, no external potential energy is applied to the PN junction. However if the diodes terminals are shorted together, a few holes (majority carriers) in the P-type material with enough energy to overcome the potential barrier will move across the junction against this barrier potential. This is known as the Forward Current.

Likewise, holes generated in the N-type material (minority carriers), find this situation favourable and move across the junction in the opposite direction. This is known as the Reverse Current and is referenced as IR. This transfer of electrons and holes back and forth across the PN junction is known as diffusion.

Then an Equilibrium or balance will be established when the majority carriers are equal and both moving in opposite directions so that the net result is zero current flowing in the circuit. When this occurs the junction is said to be in a state of Dynamic Equilibrium.

4. Number density of current carriers increases, relaxation time decreases but effect of decrease in relaxation time is much less than increase in number density.

Solution:

With increase in temperature, the number density of current carries increases, relaxation time decreases but effect of decrease in relaxation is much less than increase in number density. So, the conductivity of a semiconductor increases with increase in temperature.

2. Y exists when A exists or B exists or both A and B exist.

Explanation:

In Boolean algebra, A + B = Y implies that Y exists when A exists or B exists or both A and B exist.

3. Uncharged.

2. increased, increase

Explanation:

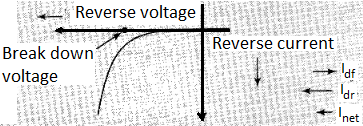

When the reverse voltage across a diode is very large, the valance electrons become free due to applied high electric field and get enough acceleration to make other electrons free, thus create a lot of electron-hole pairs in a short time. As the number of charge carriers increases, current also increases.

Therefore, at breakdown voltage, the rate of creation of hole-electron pairs is increased leading to the increase in current.

1. The valence band is partially empty and the conduction band is partially filled.

Explanation:

In semiconductors at room temperature the electrons get enough energy so that they are able to over come the forbidden gap. Thus at room temperature the valence band is partially empty and conduction band is partially filled.

3. The base has the least concentration of impurity.

3. Insulator.

4. Both (1) and (3) are true.

Explanation:

Glass is an insulator. The energy gap in a glass is greater than that of semiconductor and a good conductor.

4. OR gate

Explanation:

The image given shows a diode OR circuit. R is connected from the output to ground to provide bias current for the diodes. Any positive voltage will represent a logic 1 state and the summing of currents through multiple diodes does not change the logic level.

1. Increasing intensity without changing frequency.

Explanation:

Intensity of photons is the number of photons passing through a cross sectional area per unit time. Hence changing the intensity would cause change in number of ejected photoelectrons emitted by them.

4. p - n junction is electrically neutral.

Explanation:

Generally Si is a semiconductor. In p type semiconductor acceptor level lies near the valence band and each donor atom contribute one electron. p-n junction electrically neutral because total charge is zero.

3. Both drift and diffusion

Explanation:

Three important phenomena occurs during formation of pn junction:

Diffusion, Formation of space charge, Drift.

2. Cumulative effect of conduction band electron.

Explanation:

The avalanche breakdown in p-n junction is due to cumulative effect of conduction band electron. In reverse bias, due to applied electric field, electrons acquire enough energy to free more electron bound to the atom. The abundant number of electron-hole pairs are created for conduction, this is cumulative effect.

4. An artificially created particle.

4. 5eV.

2. From the p-side to the n-side.

Explanation:

When a p‒n junction is formed then because of the difference in the concentration of charge carriers in the two regions, electrons from the n region move to the p region and holes from the p region move to the n region. Since the direction of the current is always opposite to the motion of electron, the direction of the current is from the p side to the n side.

Similarly, when the junction is forward biassed, the positive terminal of the battery is connected to the pside of the p‒n junction and the negative terminal of the battery is connected to the n side of the p‒njunction. As a result, electrons in the n side of the p‒n junction are repelled by the negative terminal of the battery and they move to the p side, where the positive terminal of the battery attracts them. Similarly, holes from the p side of the p‒n junction are repelled by the positive terminal of the battery and they move to the n side, where the negative terminal of the battery attracts them. Thus, they give diffusion current from the p side to the n side across the p‒n junction.

In reverse biassing, there is no flow of majority carriers across the junction; hence, there is not diffusion current. Here, the flow of majority carriers is opposed by the applied voltage.

1. Eliminates a.c. component.

1. Work is a state finction.

Explanation:

Majority carrier in a n − type semiconductor are holes. This statement is false.

Since, in n−type semiconductor, the pentavalent impurity atoms donate electrons o the host crystal and the semiconductor doped with donars (pentavalent impurity) is called n − type semiconductor.

Therefore majority carrier in a n−type semiconductor are electrons.
